Power connector cable
Table 6-5 Power connector cable description and part number
Description Spare part number
Power connector cable L57017-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover on page 27).
3. Disconnect the battery (see Battery and speakers on page 32).
4. Remove the heat sink/fan assembly (see Heat sink/fan assembly on page 35).

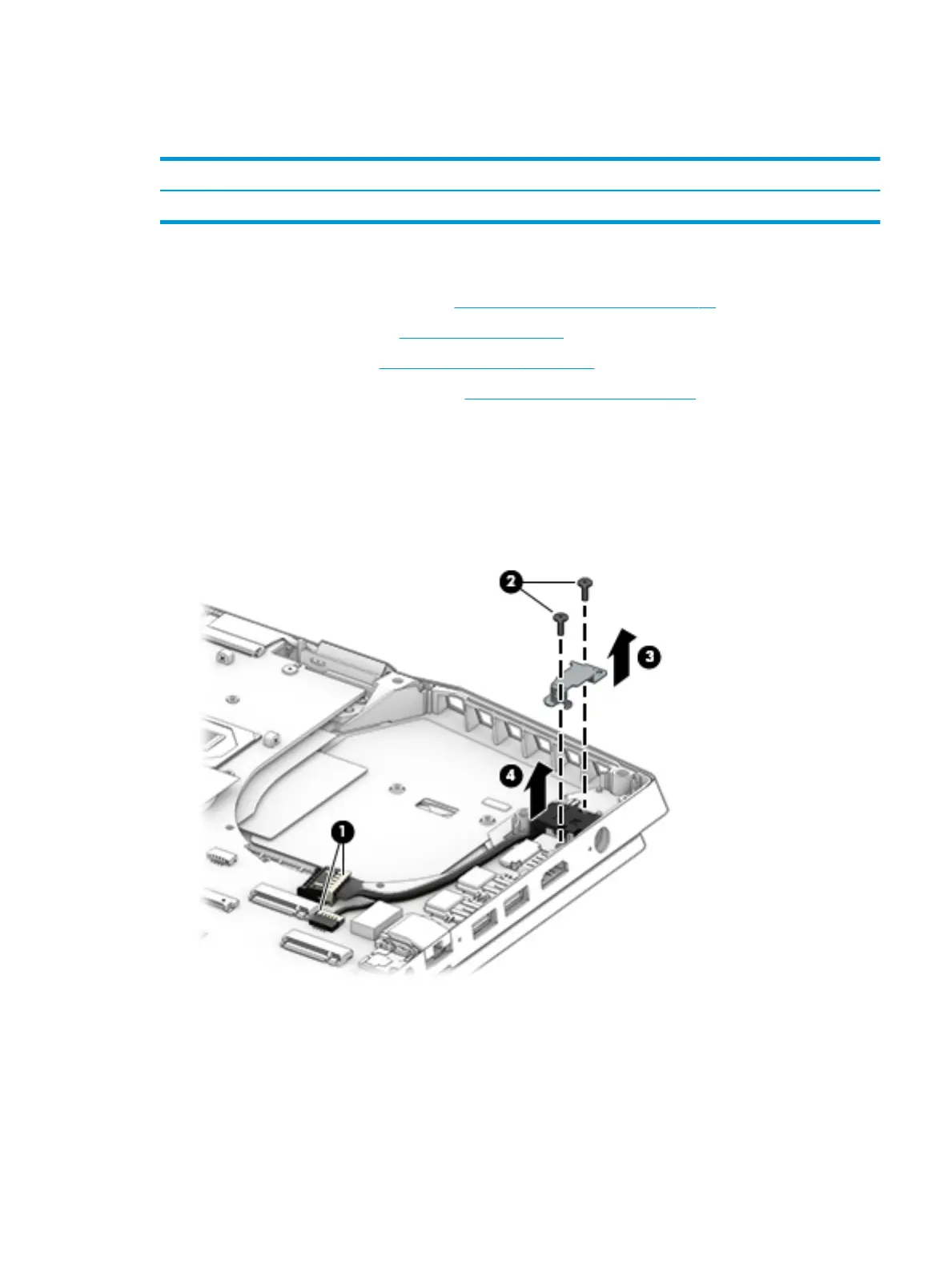

Remove the power connector cable:
1. Disconnect the cable from the system board (1).
2. Remove the two Phillips M2.0 × 5.5 screws (2) that secure the bracket to the computer, and then remove
the bracket (3).
3. Remove the power connector and cable from the computer (4).
Reverse this procedure to install the power connector cable.
Component replacement procedures 39
