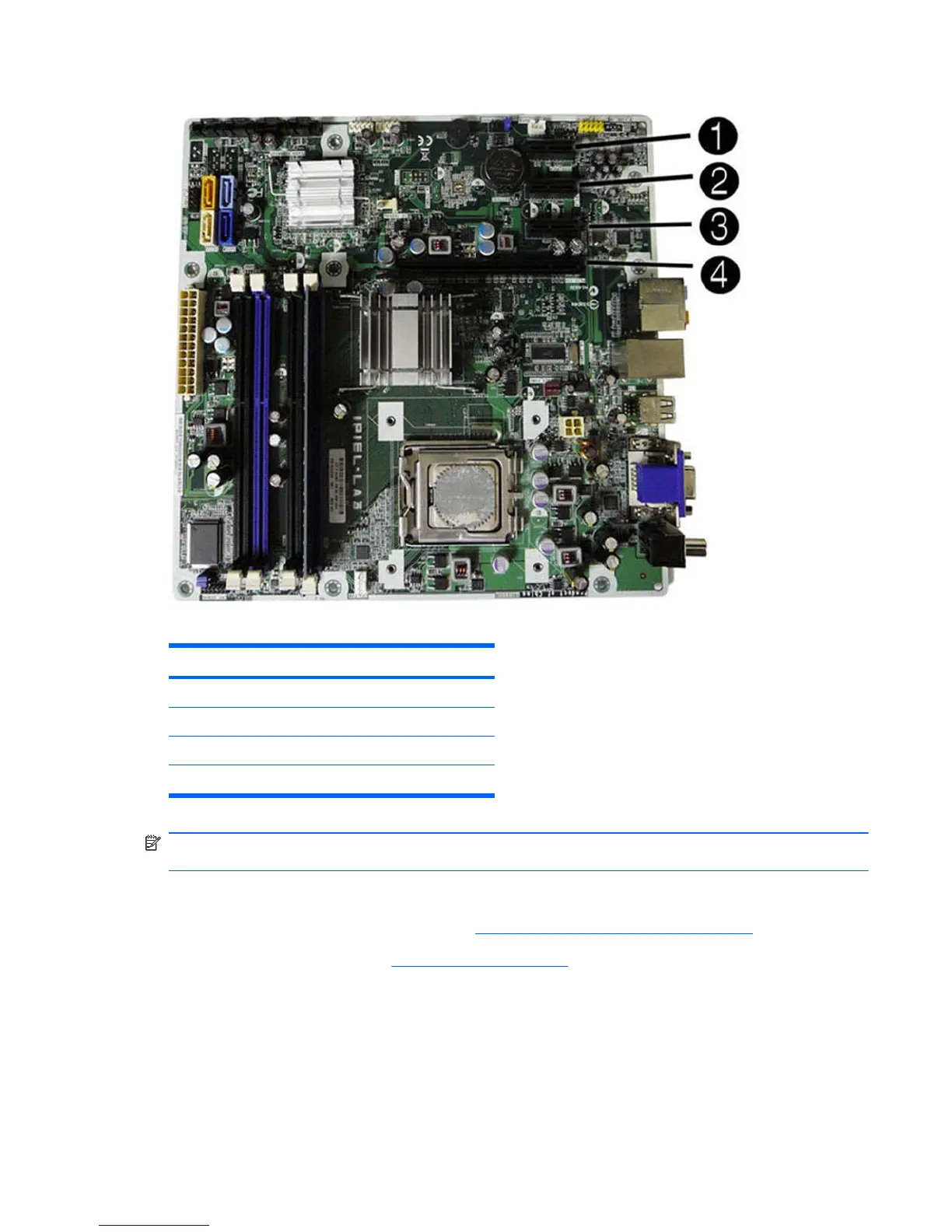

Figure 6-7 Expansion Slot Locations – HP Pro 3010
Table 6-3 Expansion Slot Locations – HP Pro 3010
Item Description
1 PCI Express x1 expansion slot
2 PCI Express x1 expansion slot
3 PCI Express x1 expansion slot
4 PCI Express x16 expansion slot
NOTE: You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16
expansion slot.
To remove, replace, or add an expansion card:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 35).
2. Remove the access panel (
Access Panel on page 36).
3. Locate the correct vacant expansion socket on the system board and the corresponding
expansion slot on the back of the computer chassis.
