Top speaker
Description Spare part number
Speaker Kit, top speaker (includes cable) 793495-001
Before removing the top speaker and Wi-Fi auxiliary cable, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off, turn the tablet on, and then shut it down
through the operating system.
2. Disconnect the power from the tablet by unplugging the power adapter cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 14).
5. Remove the battery (see
Battery on page 15).
6. Remove the rear-facing webcamera (see
Rear-facing webcamera on page 16).
7. Remove the front-facing webcamera (see
Front-facing webcamera on page 17).

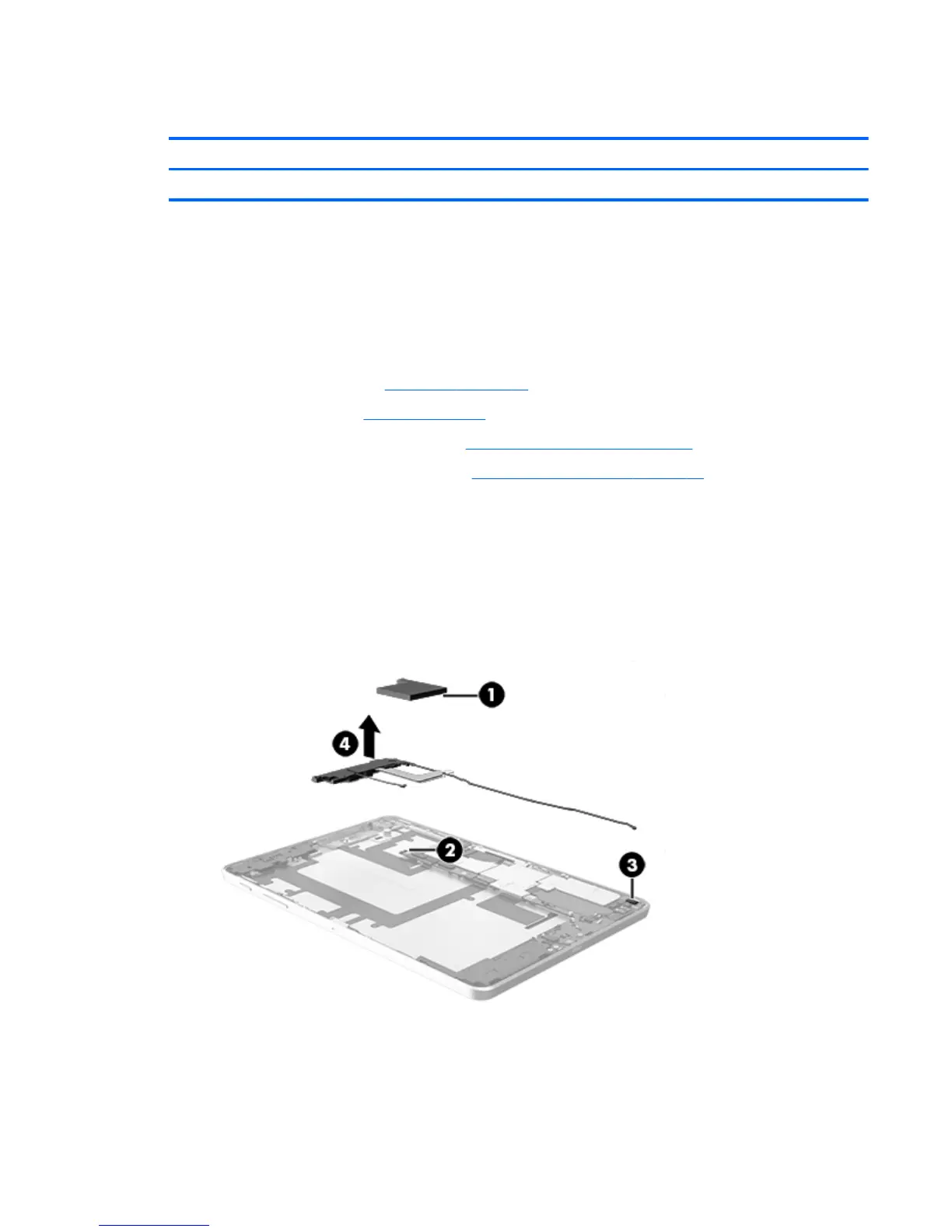

Remove the top speaker board:
1. Remove the foam pad (1) covering the top speaker board.
2. Disconnect the speaker (2) from the system board.
3. Disconnect the Wi-FI auxiliary cable (3) from the system board.
4. Detach the top speaker board (4) from the display panel assembly, and then remove the top speaker
board and Wi-FI auxiliary cable.
Reverse this procedure to install the top speaker and Wi-Fi auxiliary cable.
Top speaker 19
