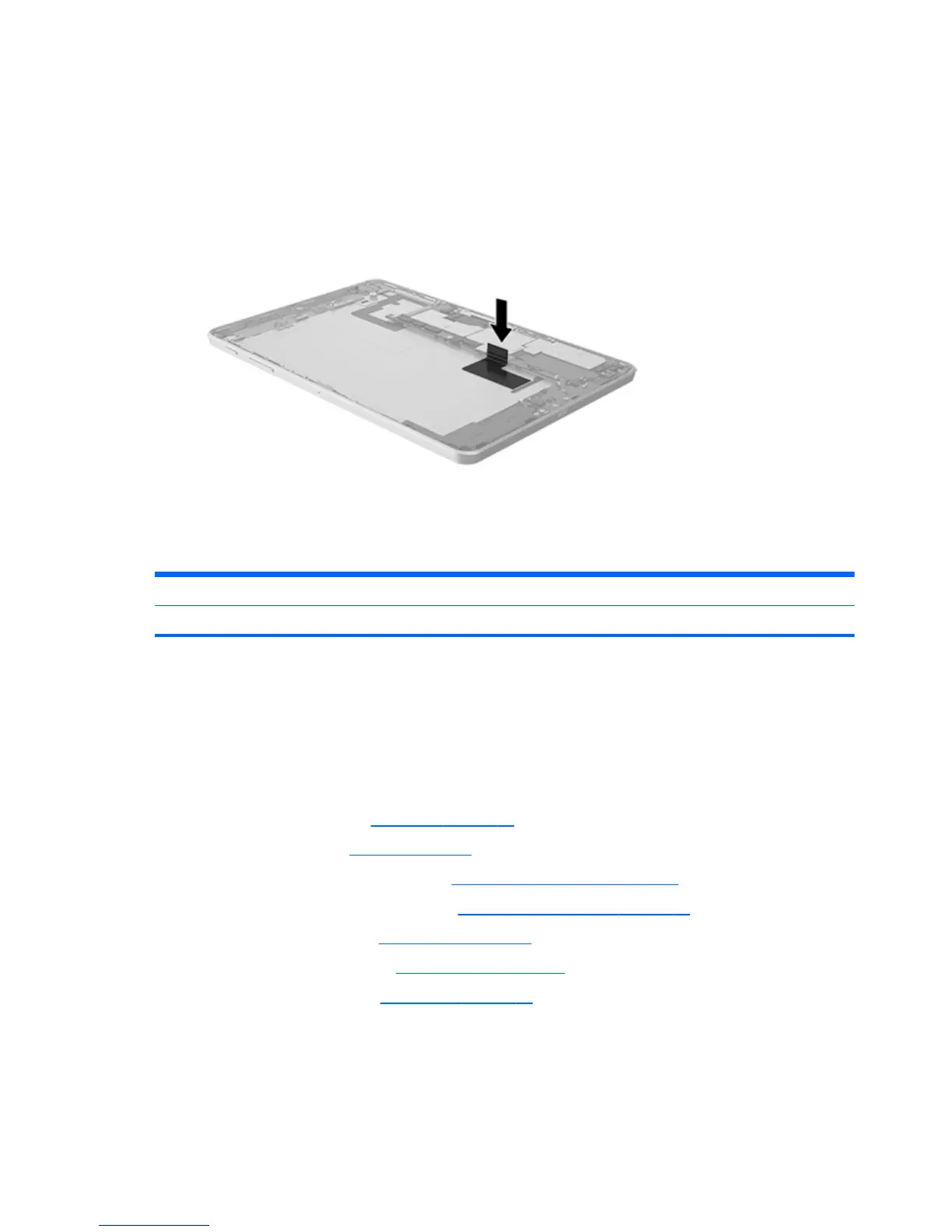

2. Disconnect the LCM cable.
Reverse this procedure to install the LCM cable, and the LCM bracket.
Audio jack
Description Spare part number
Audio jack 793489-001
Before removing the audio jack, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off, turn the tablet on, and then shut it down
through the operating system.
2. Disconnect the power from the tablet by unplugging the power adapter cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 14).
5. Remove the battery (see
Battery on page 15).
6. Remove the rear-facing webcamera (see
Rear-facing webcamera on page 16).
7. Remove the front-facing webcamera (see
Front-facing webcamera on page 17).
8. Remove the top speaker (see
Top speaker on page 19).
9. Remove the antenna board (see
Antenna board on page 20).
10. Remove the LCM bracket (see
LCM bracket on page 21).
Remove the audio jack:
1. Remove the audio jack from the display assembly.
22 Chapter 6 Removal and replacement procedures
