Antenna board
Description Spare part number
Antenna (includes cable and transceiver) for models with WWAN capability 793486-001
Antenna (includes cable and transceiver) for models without WWAN capability 808433-001
Before removing the antenna board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off, turn the tablet on, and then shut it down
through the operating system.
2. Disconnect the power from the tablet by unplugging the power adapter cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 14).
5. Remove the battery (see
Battery on page 15).
6. Remove the rear-facing webcamera (see
Rear-facing webcamera on page 16).
7. Remove the front-facing webcamera (see
Front-facing webcamera on page 17).
8. Remove the top speaker (see
Top speaker on page 19).

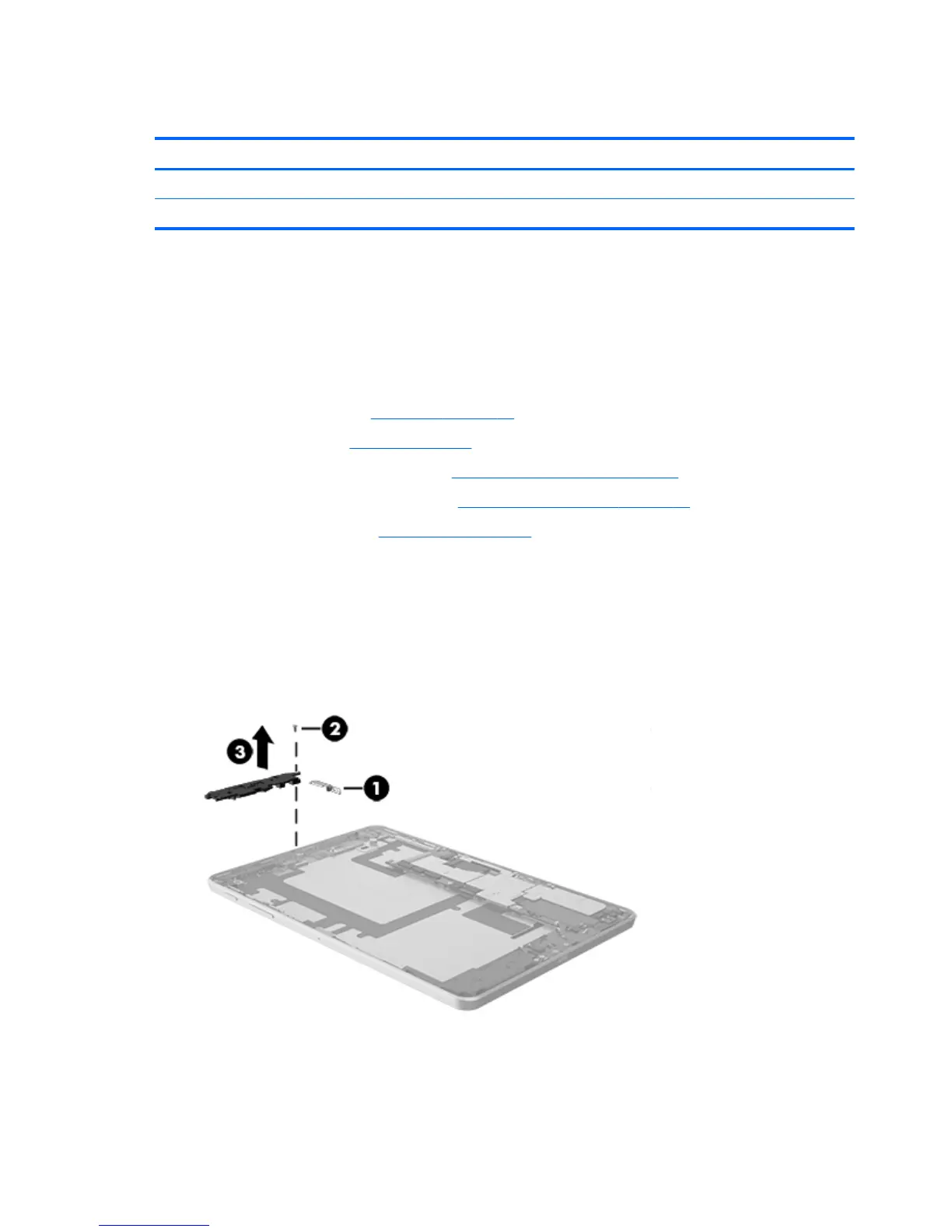

Remove the antenna board:
1. Remove the ambient light sensor (1).
2. Remove one Torx 4 screw (2).
3. Remove the antenna board (3).
20 Chapter 6 Removal and replacement procedures
