HP Proliant DL580 User Manual

Expansion board options 62
8.

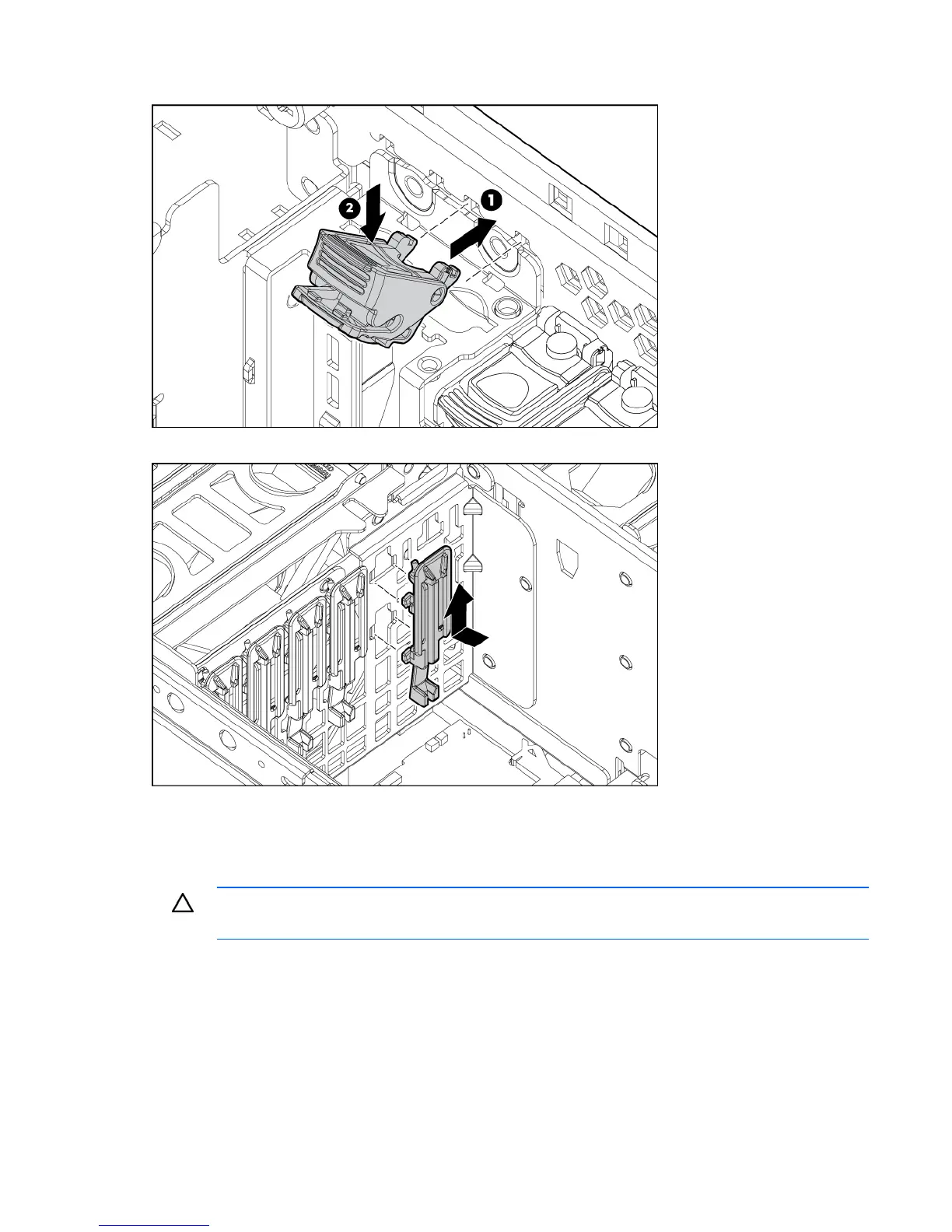

Attach the latch to the chassis, and press down until it snaps into place.
9. Install the retaining clip.
10. Install the PCI Express x8 non-hot-plug expansion board ("Installing non-hot-plug expansion boards"
on page 63) into slot 1, if installing the PCI Express x8 mezzanine option. Install the PCI Express x4
non-hot-plug expansion boards into slots 1 and 2, if installing the PCI Express x4 mezzanine option.
11. Place expansion slot covers over any remaining empty slots, and close the latches.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all expansion slots have either an expansion slot cover or an expansion board installed.
12. Replace the access panel ("Removing the access panel" on page 26).
13. Slide the server back into the rack.
14. Power up the server (on page 24).

HP Proliant DL580 Specifications

General

Product Line	ProLiant
Server Type	Rack Server
Form Factor	4U
CPU Socket Type	LGA 3647
Memory	Up to 6 TB
Processor	Intel Xeon
Memory Type	DDR4
Storage Controller	Smart Array
Network	FlexibleLOM
Power Supply	Redundant Power Supplies
Management	iLO (Integrated Lights-Out)
