Component identification 68

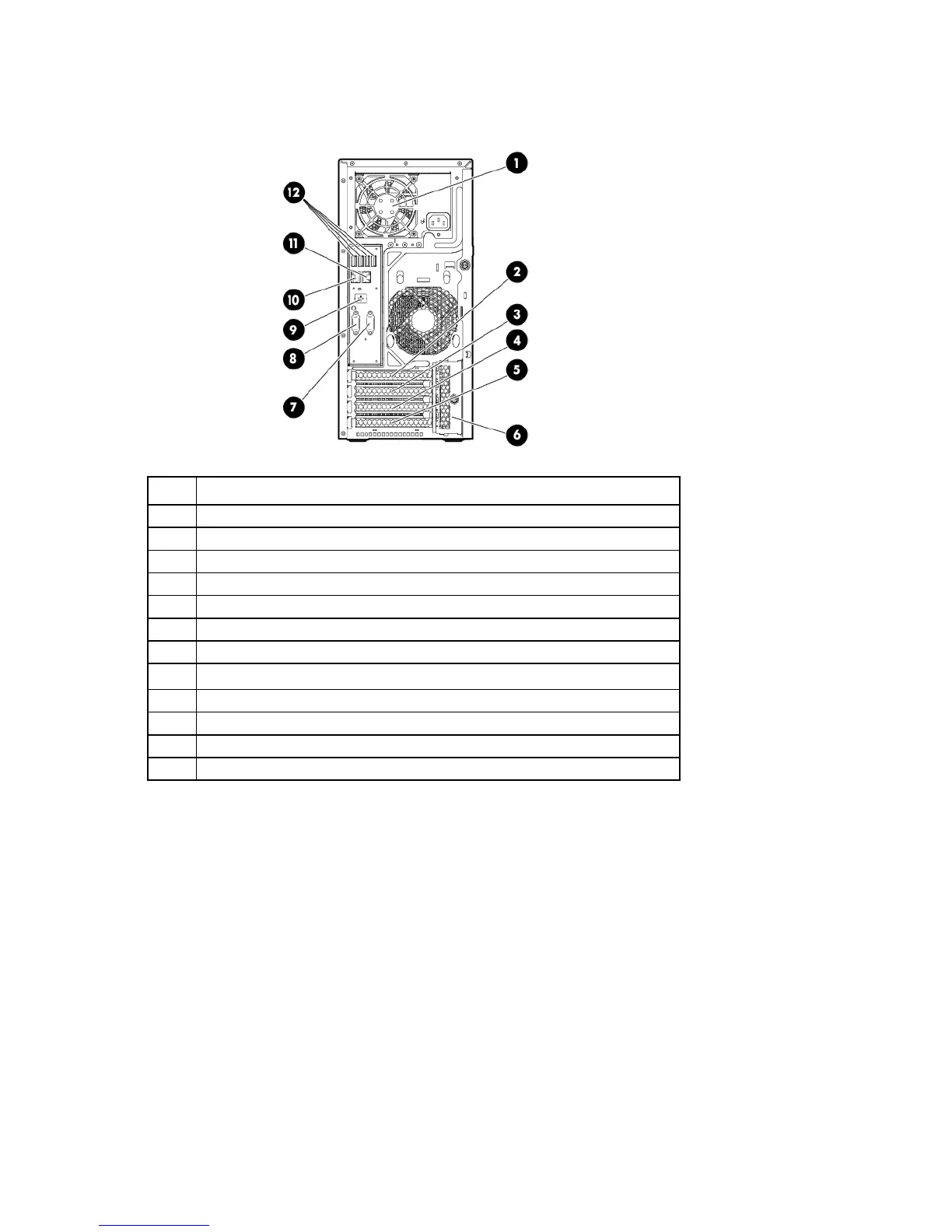

Rear panel components
Item Description
1
Non-hot-plug power supply
2
Slot 4 PCIe x16 (8, 4, 1)*
3
Slot 3 PCIe x8 (8, 4, 1)*
4
Slot 2 PCIe x8 (4, 1)*
5
Slot 1 PCIe x4 (1)*
6
Expansion slot cover retainer
7
Serial connector
8
Video connector
9
Dedicated iLO management port (optional)
10
NIC 1/shared iLO management connector
11
NIC connector 2
12
USB connectors
* For more information on the expansion slot specifications, see "PCIe expansion slot definitions (on page
71)."
