Replacing the access panel
To replace the access panel:

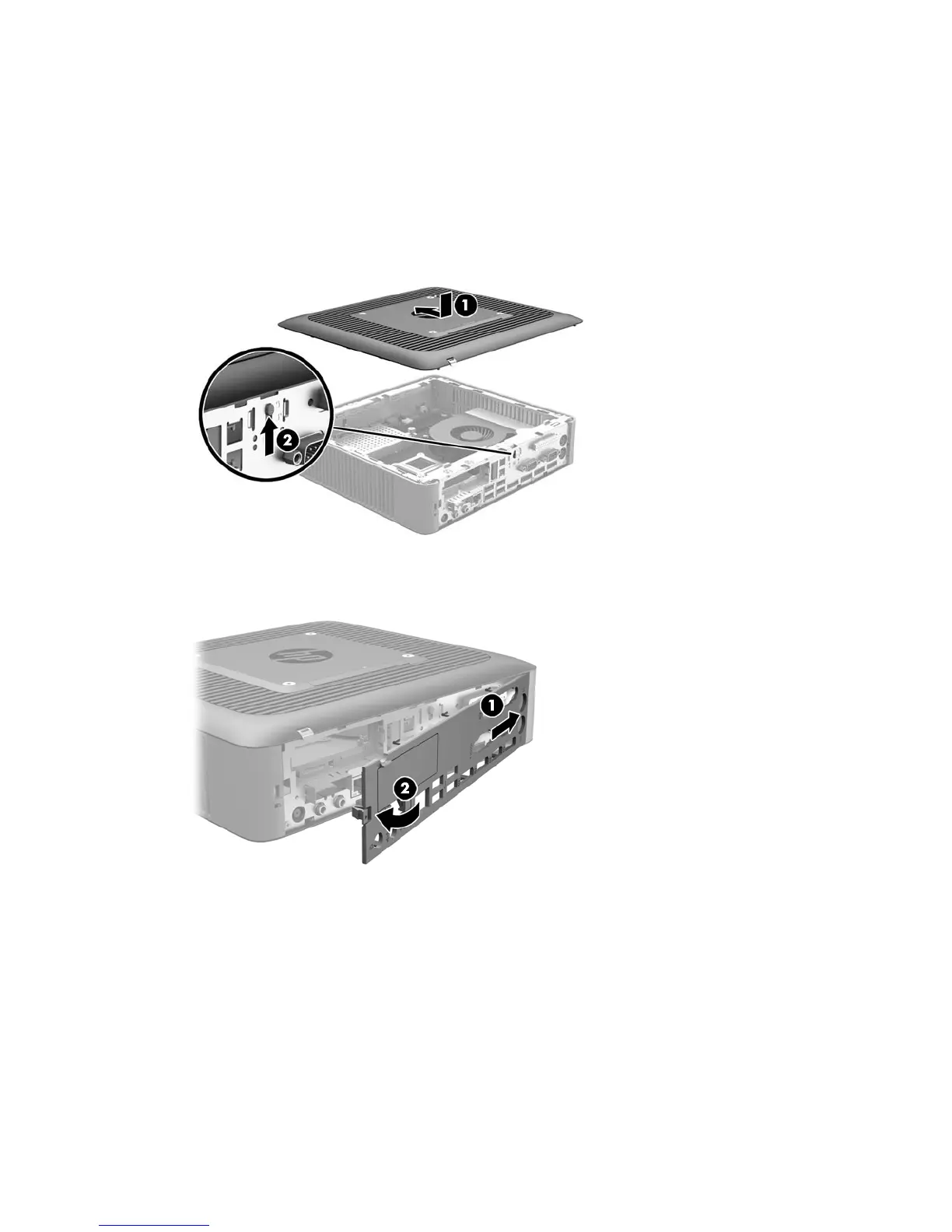

1. Position the access panel on the chassis, approximately 6 mm (.24 in) inside the edge of the chassis.
Slide the panel toward the front of the chassis (1) until it locks into place.
2. Move the access panel latch (2) up to secure the access panel.
3. Insert the hooks on the right side of the rear I/O panel (1) into the right side of the back of the chassis,
rotate the left side (2) to the chassis, and then press it to the chassis until it locks in place.
6 Chapter 2 Hardware changes
