HP Z600 Workstation front panel components
The following figure shows the front panel of a typical HP Z600 Workstation.

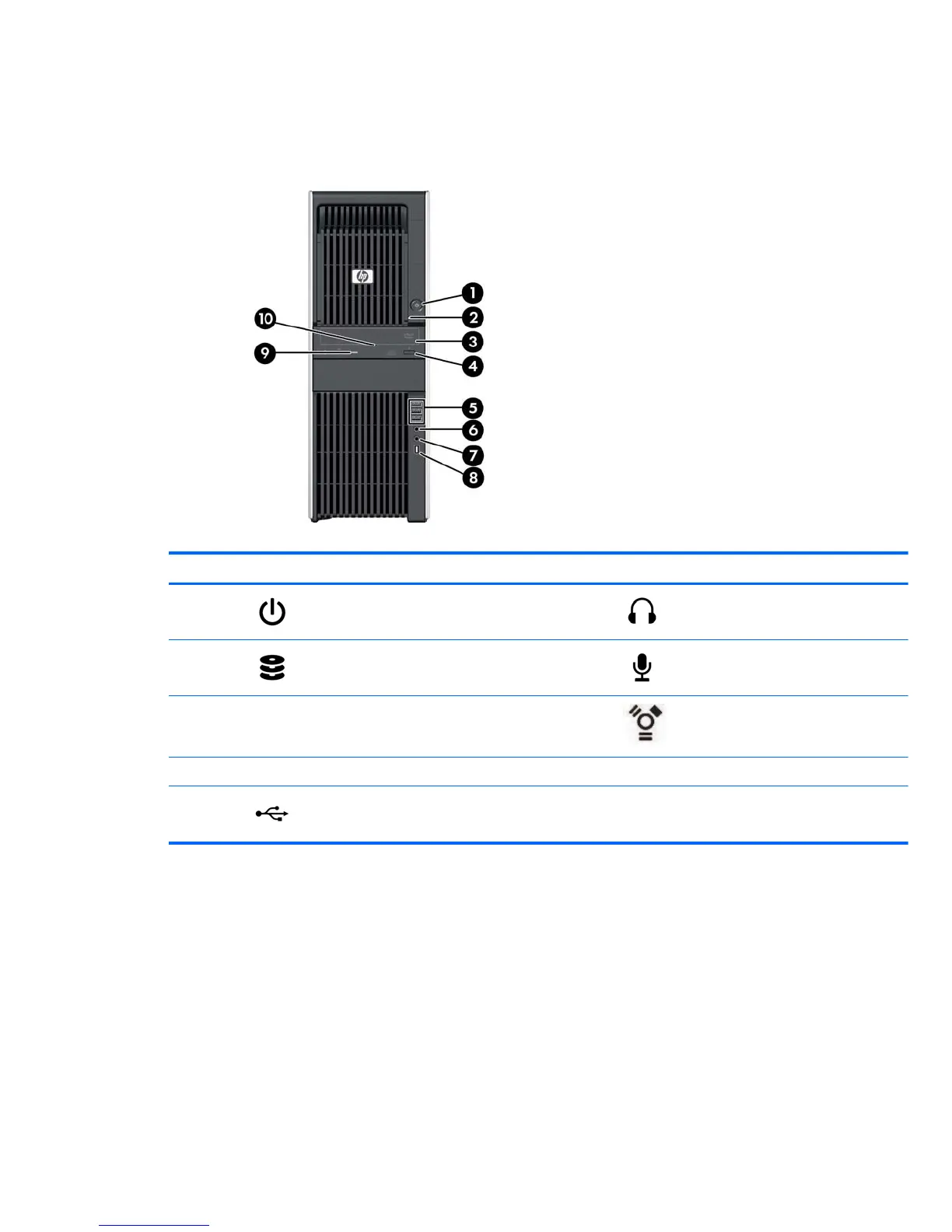

Figure 2-5 HP Z600 Workstation front panel
Table 2-5 HP Z600 Workstation front panel connectors
*
Item Symbol Description Item Symbol Description
1
Power button 6 Headphone connector
2
Hard drive activity light 7 Microphone connector
3 Optical drive 8
IEEE-1394a connector (standard with
RDIMM system board)
4 Optical drive eject button 9 Optical drive activity light
5
USB 2.0 ports (3) 10 Optical drive manual eject
*
See the Maintenance and Service Guide for the workstation for specific front panel connector information.
