Installing an optical drive in an HP Z210 SFF
Workstation
To install or re-install an optical drive in an HP Z210 SFF Workstation:
1. Follow the procedures described in
Preparing for component installation on page 34 to prepare
the workstation for component installation.
2. Remove the front bezel.
3. If necessary remove the bezel blank.
4. Install four M3 metric guide screws in the lower holes on each side of the drive. Either re-use the
screws used by your previous optical drive or use the extra HP-provided guide screws mounted on
the front of the chassis.
CAUTION: Use only 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.

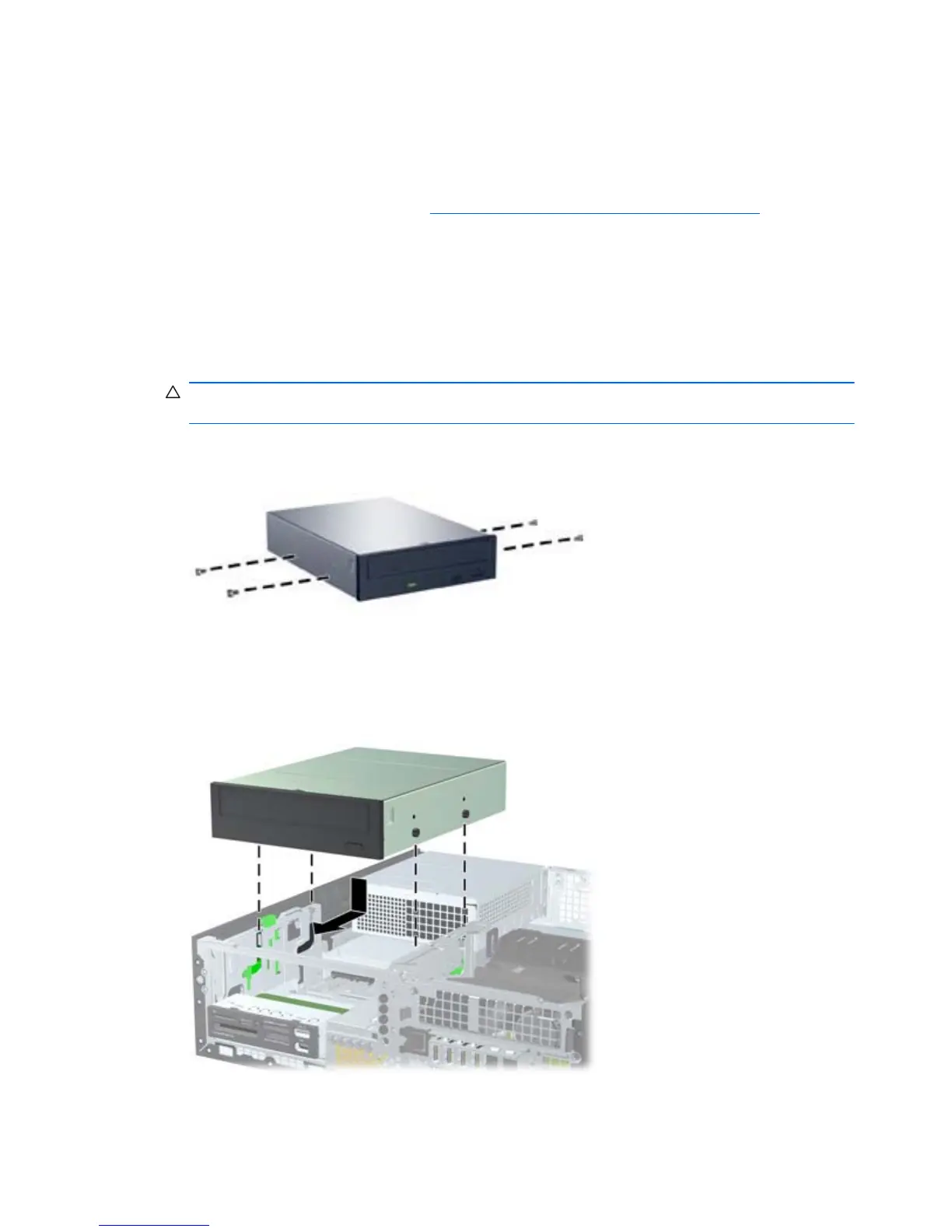

Figure 10-6 Installing Guide Screws in the Optical Drive
5. Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward
the front of the computer until it locks into place.
Figure 10-7 Installing the Optical Drive
56 Chapter 10 Installing optical disk drives ENWW
