Graphics card with DisplayPort output—If the graphics card has four DisplayPort connectors, you can
connect a monitor to each connector. Use the proper adapters if required.
●
Graphics card with DVI output—If you have a graphics card with two DVI connectors, you can connect a
monitor to each connector. Use the proper adapters if required.
NOTE: Models that have only one DVI port always have a second graphics output option (DisplayPort
or VGA).
Many graphics cards provide more than two monitor outputs but limit you to using only two at a time.
Consult the graphics card documentation or look up information on the card according to the procedure
in Matching graphics cards to monitor connectors on page 17.
On a system with two DVI connections, port number 1 provides the primary display, which is where the
BIOS POST screen appears after a system boot. (Only one card is used during BIOS POST unless you
change the BIOS setting.)
●
Graphics card with VGA and DL-DVI output—If the computer does not have a PCIe graphics card, but has
one or more SVGA and/or DL-DVI connectors, you can connect a monitor to each output.
●
Graphics card with DMS-59 output—If the computer has a PCIe graphics card with a DMS-59 connector,
use the appropriate adapter to connect your monitor.
Adapters are available to connect the DMS-59 output to two DVI or two VGA monitors.
Connecting and conguring monitors
NOTE: The supported graphics cards typically allow at least two monitors, as shown in this section; some
supported cards allow more monitors. Refer to the graphics card documentation for details.

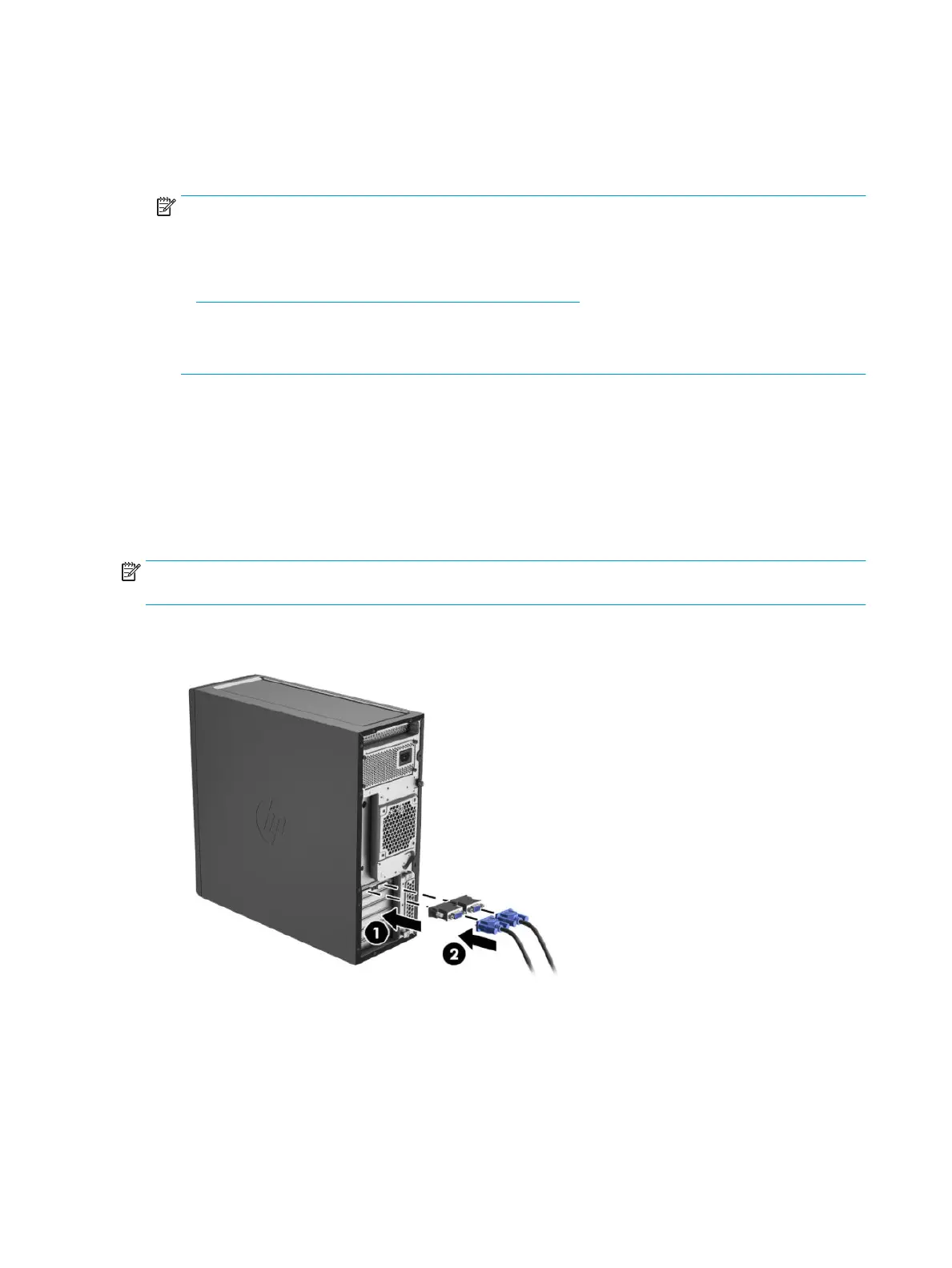

1. Connect the monitor cable adapters (1) (if required) to the computer, then connect the appropriate
monitor cables (2) to the adapters or directly to the graphics card.
18 Chapter 3 Setting up the computer

HP Z8 G4 Specifications

General

Display included	No
Keyboard included	Yes
Power supply	1125 W
Operating system architecture	64-bit
Audio chip	Realtek ALC221
Product type	Workstation
Market positioning	Business
Motherboard chipset	Intel C622
Chassis type	Tower
Product color	Black
Country of origin	China
Number of 3.5\" bays	4
Number of 5.25\" bays	2
PCI Express x8 slots	3
Headphone outputs	1
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi
Card reader integrated	-
Total storage capacity	1000 GB
Memory slots	24x DIMM
Internal memory	8 GB
Memory channels	Hepta-channel
Memory clock speed	2666 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	- GB
Memory layout (slots x size)	1 x 8 GB
Tcase	77 °C
Stepping	U0
Processor cache	11 MB
Processor model	4108
System bus rate	- GT/s
Processor socket	LGA 3647 (Socket P)
Processor threads	16
Processor codename	Skylake
Processor frequency	1.8 GHz
Processor cache type	L3
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	3 GHz
Thermal Design Power (TDP)	85 W
Maximum number of PCI Express lanes	48
Memory clock speeds supported by processor	2400 MHz
Maximum internal memory supported by processor	768 GB
Scalability	2S
Processor code	SR3GJ
Processor ARK ID	123544
Intel TSX-NI version	1.00
Processor package size	76.0 x 56.5 mm
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2

Weight and Dimensions

Depth	551.2 mm
Width	215.9 mm
Height	444.5 mm
Weight	22400 g
