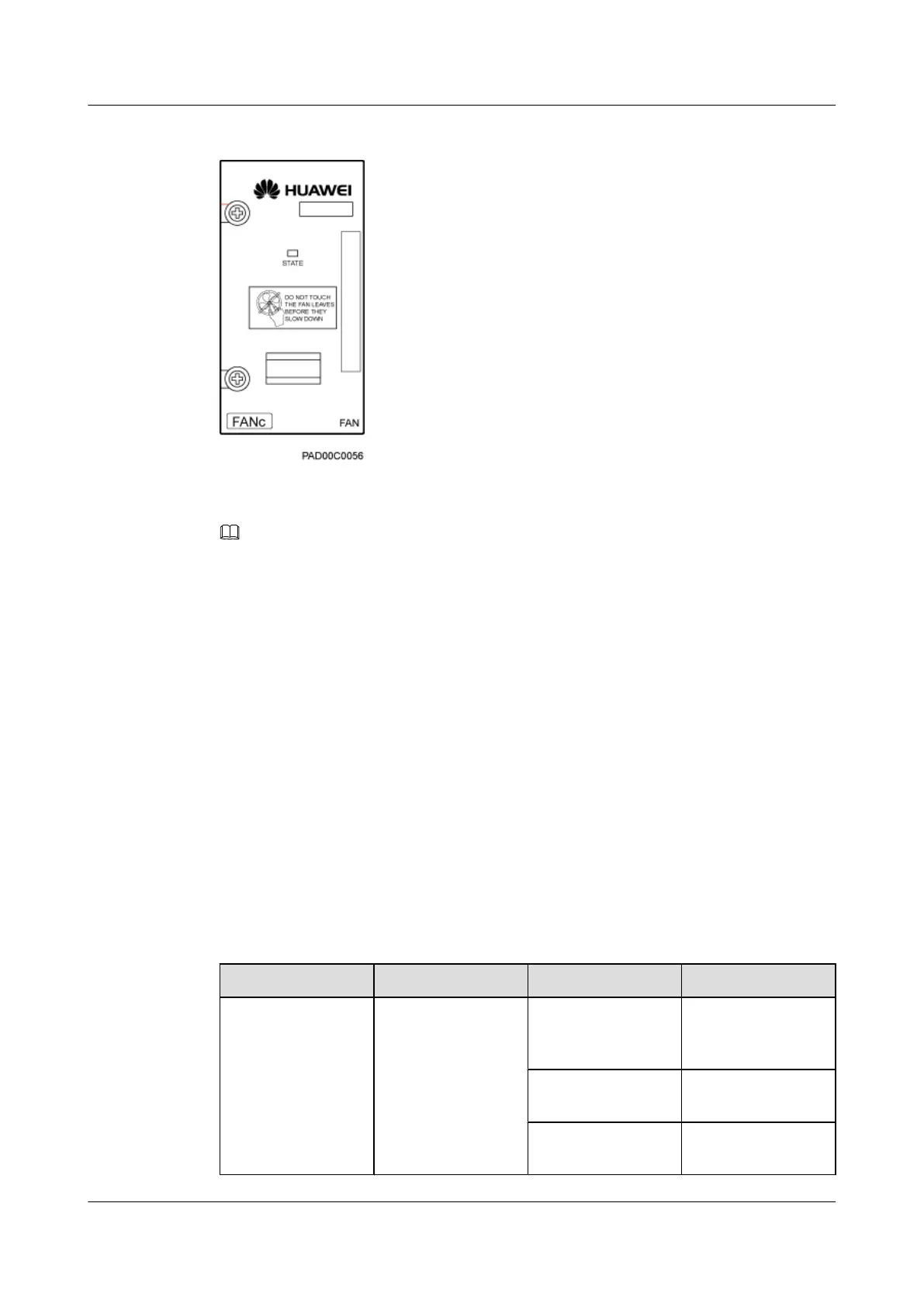

Figure 3-30 FANc
NOTE
There is a FANc silkscreen on the FANc while the FAN has no such silkscreen.
Functions
The FAN unit performs the following functions:
l Controls the fan speed.
l Reports the status, temperature, and in-position signal of the fans to the main control
processing unit.
l Monitors the temperature at the air intake vent.
l Dissipates heat.
l The FANc provides a read-write electronic label.
Indicator
There is only one indicator on the panel of the FAN unit, which indicates the operating status
of the fans. Table 3-55 describes the indicator.
Table 3-55 Indicator on the panel of the FAN unit
Silkscreen
Color Status Description
STATE Red or green Blinking green (on
for 0.125s and off for
0.125s)
The module is not
registered, and no
alarm is reported.
Blinking green (on
for 1s and off for 1s)
The module is
working.
Blinking red (on for
1s and off for 1s)
The module is
reporting alarms.
BTS3900C (Ver.C)
Hardware Description 3 BTS3900C Modules
Issue 03 (2013-05-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
69
