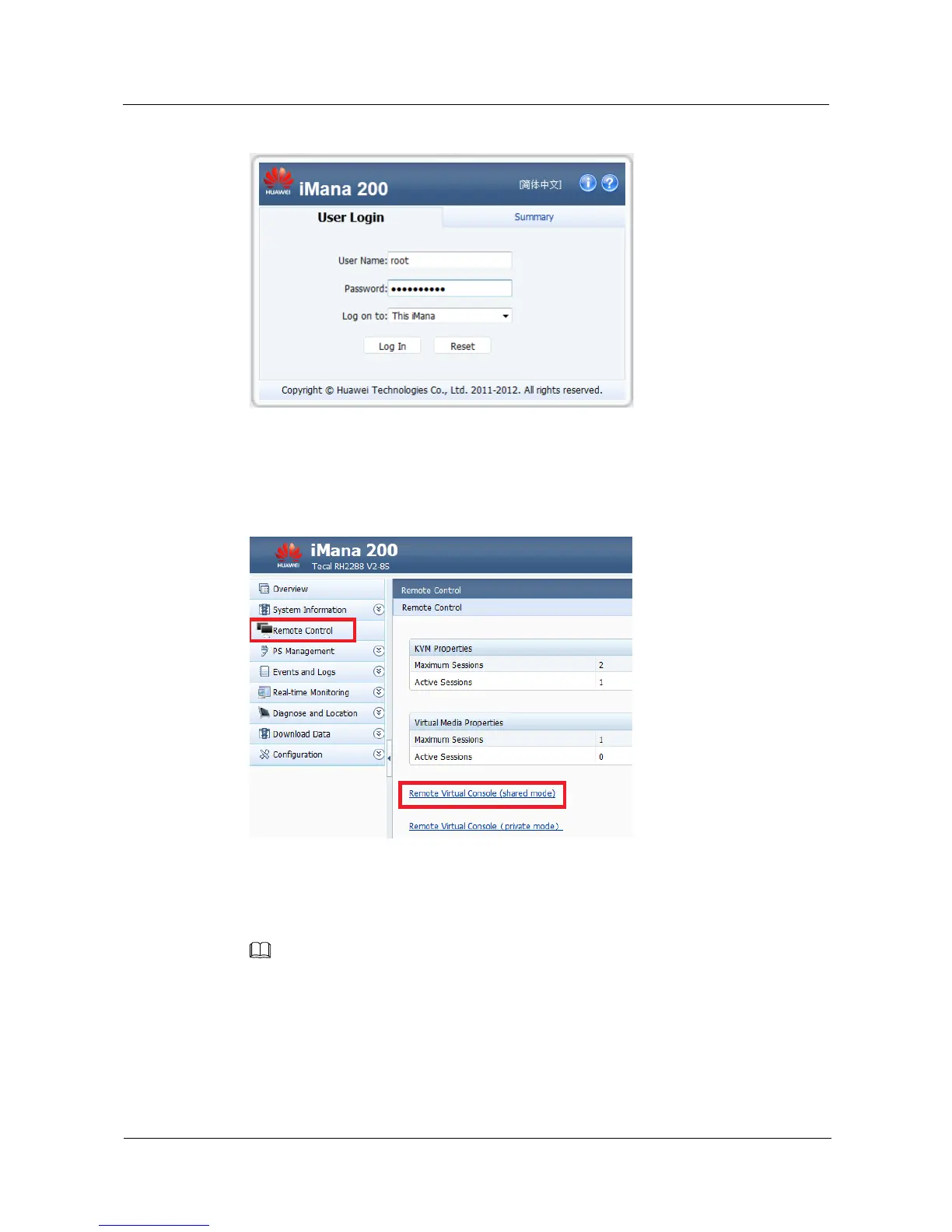

Figure 2-1 iBMC login page
Step 4 In the navigation tree on the left, choose Remote, and click Remote Virtual Console (shared
mode) in the right pane, as shown in Figure 2-2.
Figure 2-2 Opening the KVM console
Step 5 Open the keyboard, video, and mouse (KVM) console, as shown in Figure 2-3.
The following KVM operations are performed on the KVM console.
The KVM console requires JRE 1.6.0 U25 or later. You can download the Java running environment at
http://www.java.com.
If the server is not powered on, click Power On, as shown in Figure 2-3.
If the server has been powered on, click Cold Reset from the drop-down list, as shown in
Figure 2-3.
