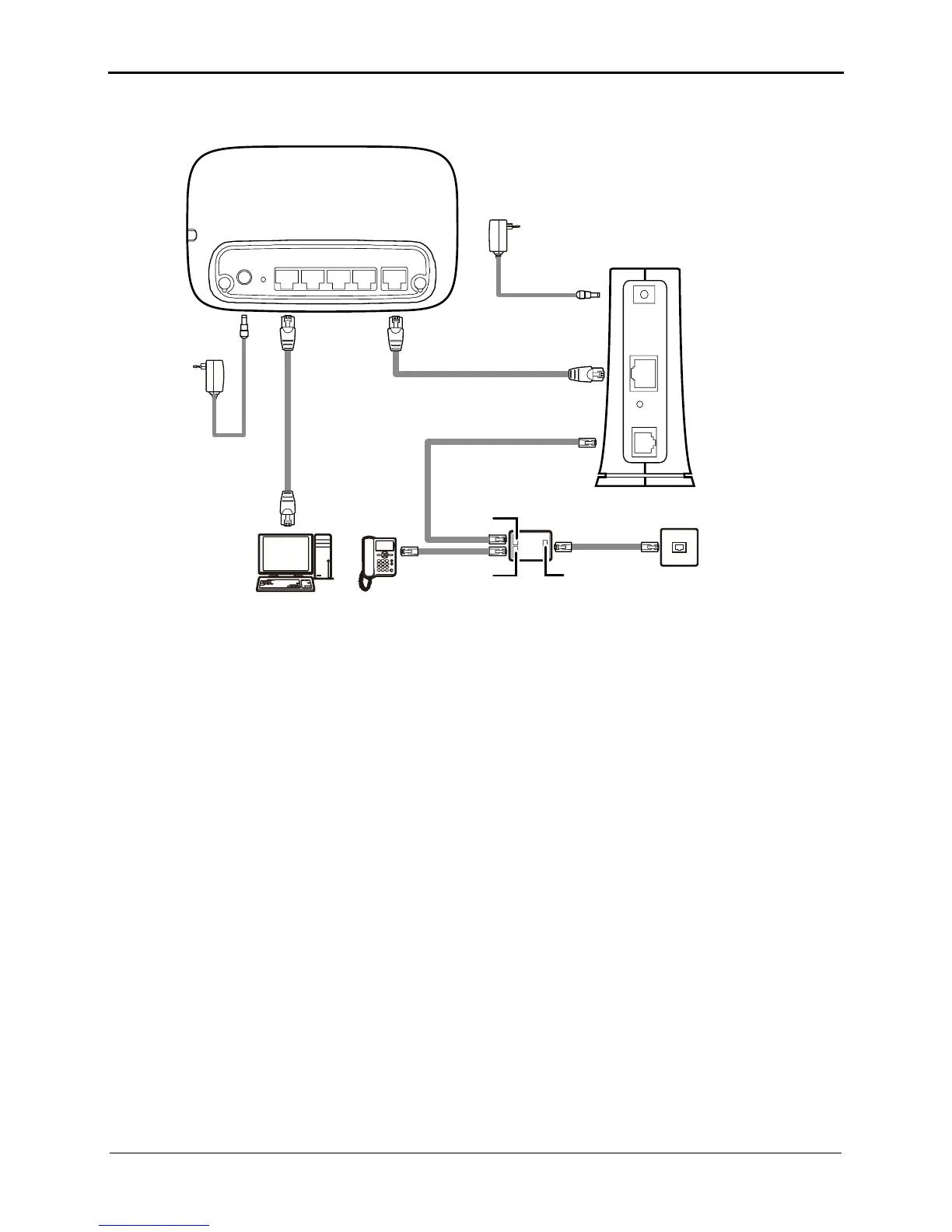

Figure 3-3 Cable connections of an ADSL broadband network after the router is
installed on the network
###
###
8
6
5
POWER
LAN
RESET
ADSL
4
PHONE
LINE
POW ER
RESET
LAN4 LAN3 LAN2 LAN1 W AN
1
MODEM
3
2
7
1. Router 2. Power adapter of the router
3. PC 4. Telephone
5. Splitter 6. Telephone line interface on the wall
7. ADSL modem 8. Power adapter of the ADSL modem
To install the router on an ADSL broadband network, do as follows:
Step 1
Connect the ADSL modem as described in its user guide.
Step 2
Use a network cable to connect the WAN interface of the router to the Ethernet interface
of the ADSL modem.
Step 3
Use a network cable to connect any of the four LAN interfaces of the router to the
Ethernet interface of a PC.
Step 4
Use the power adapter of the router to connect the POWER interface of the router to a
power socket.
----End
