3 Hardware Installation
HUAWEI HG231f Wireless-N Router
User Guide
3-6 Issue 01 (2010-04-01)
3.5 Installing the Router on a CATV Broadband
Network
Figure 3-4 shows the cable connections of a cable television (CATV) broadband network
before the router is installed on the network. On this network, the cable modem provides
an Ethernet interface used to connect a PC to the Internet.
A CATV broadband network is a network that uses the coaxial cables of CATV to provide
broadband access services. To access such a network through your PC, you need to use a cable
modem. Typically, CATV companies provide broadband access services through CATV
broadband networks.

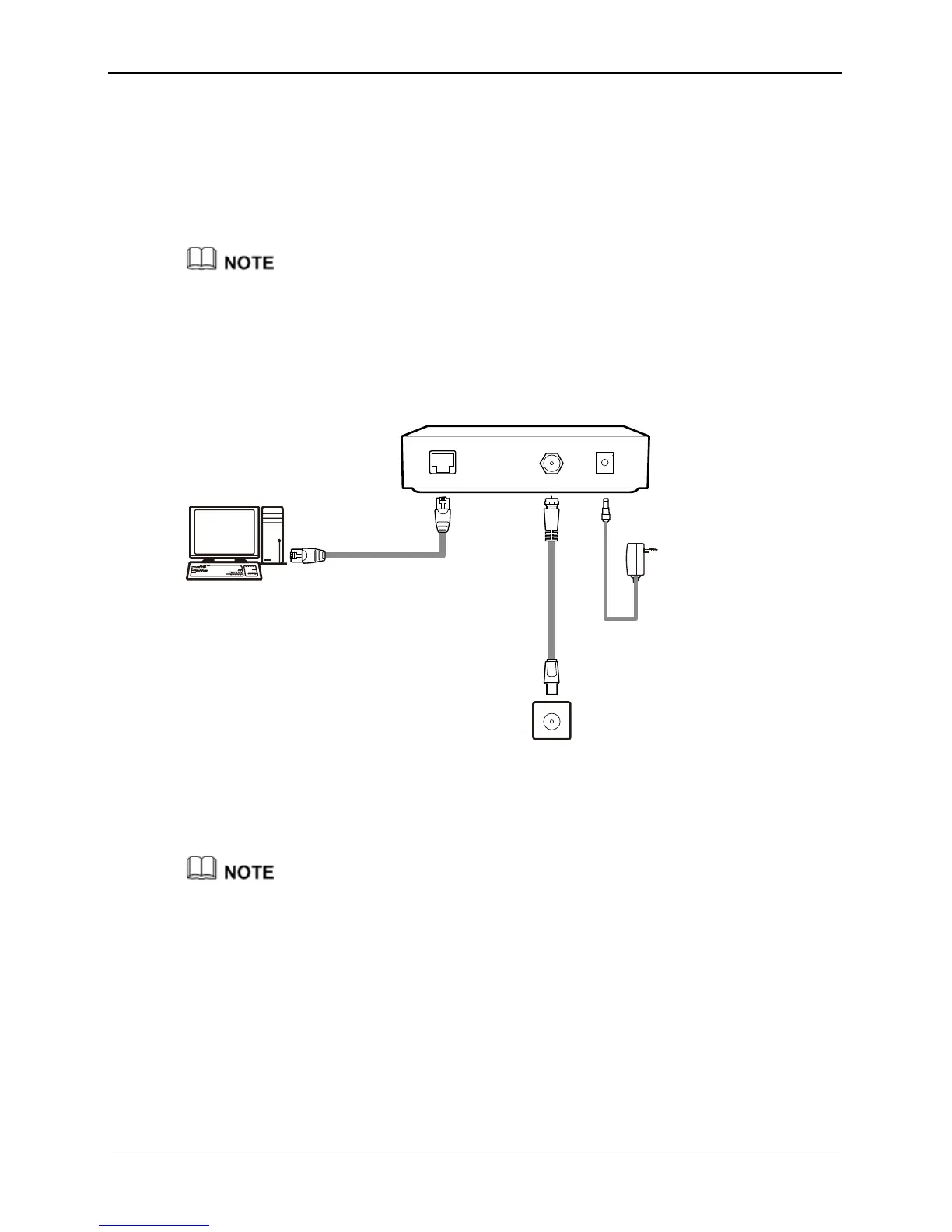

Figure 3-4 Cable connections of a CATV broadband network before the router is
installed on the network
3
4
2
1
1. PC 2. Cable modem
3. Power adapter of the cable modem 4. CATV network interface on the wall
Cable modems provided by different manufacturers might vary in appearance and interface
layout. The cable modem in
Figure 3-4 is for your reference only.
Figure 3-5 shows the cable connections of a CATV broadband network after the router is
installed on the network.
