2 Installation Guide

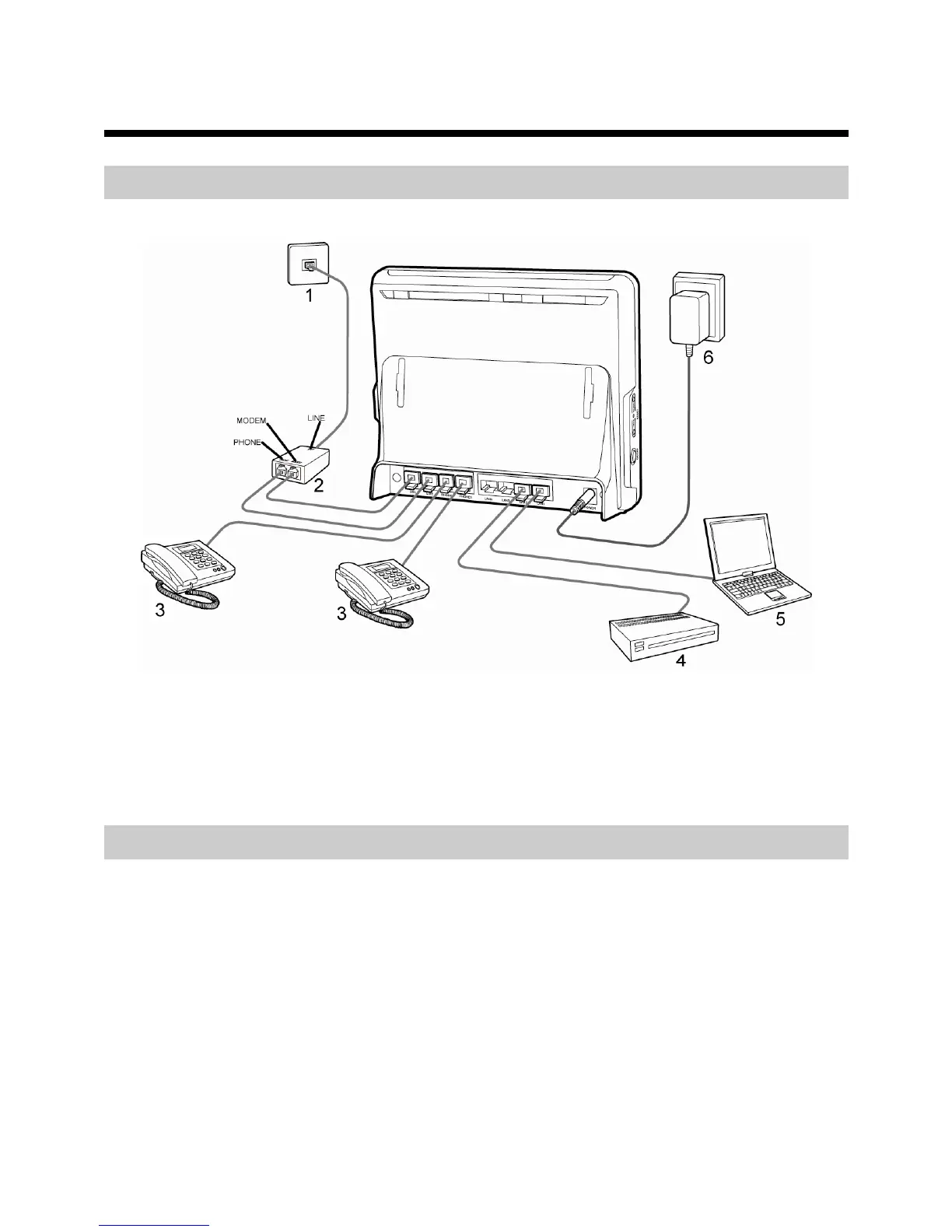

Connecting the Cables
To connect the cables for installing the HG655d, do as follows:
1 Phone jack on the wall 2 Splitter 3 Telephone
4 Set-top box 5 PC 6 Power adapter
Getting Started
To power on the HG655d, press the ON/OFF button on the side panel of the HG655d.
After you power on the HG655d, the DSL indicator blinks (for less than three minutes),
which indicates that the HG655d is being activated. Later, the DSL indicator turns solid
on. The POWER indicator is also solid on, which indicates that the HG655d is working
properly.
