In comparison with breakout fibers (MPO-LC fibers), breakout boxes feature more
flexible fiber layout.

There is no restriction on the installation direction of breakout boxes, so that the
breakout boxes can be installed positively or negatively as needed.
Usage Scenario
The breakout function applies to a scenario where bandwidth resources are unevenly allocated
between two routers at different levels. In comparison with breakout fibers, breakout boxes
implement the following functions:

Increase the density of fiber layout.

Shorten the cabling distance.

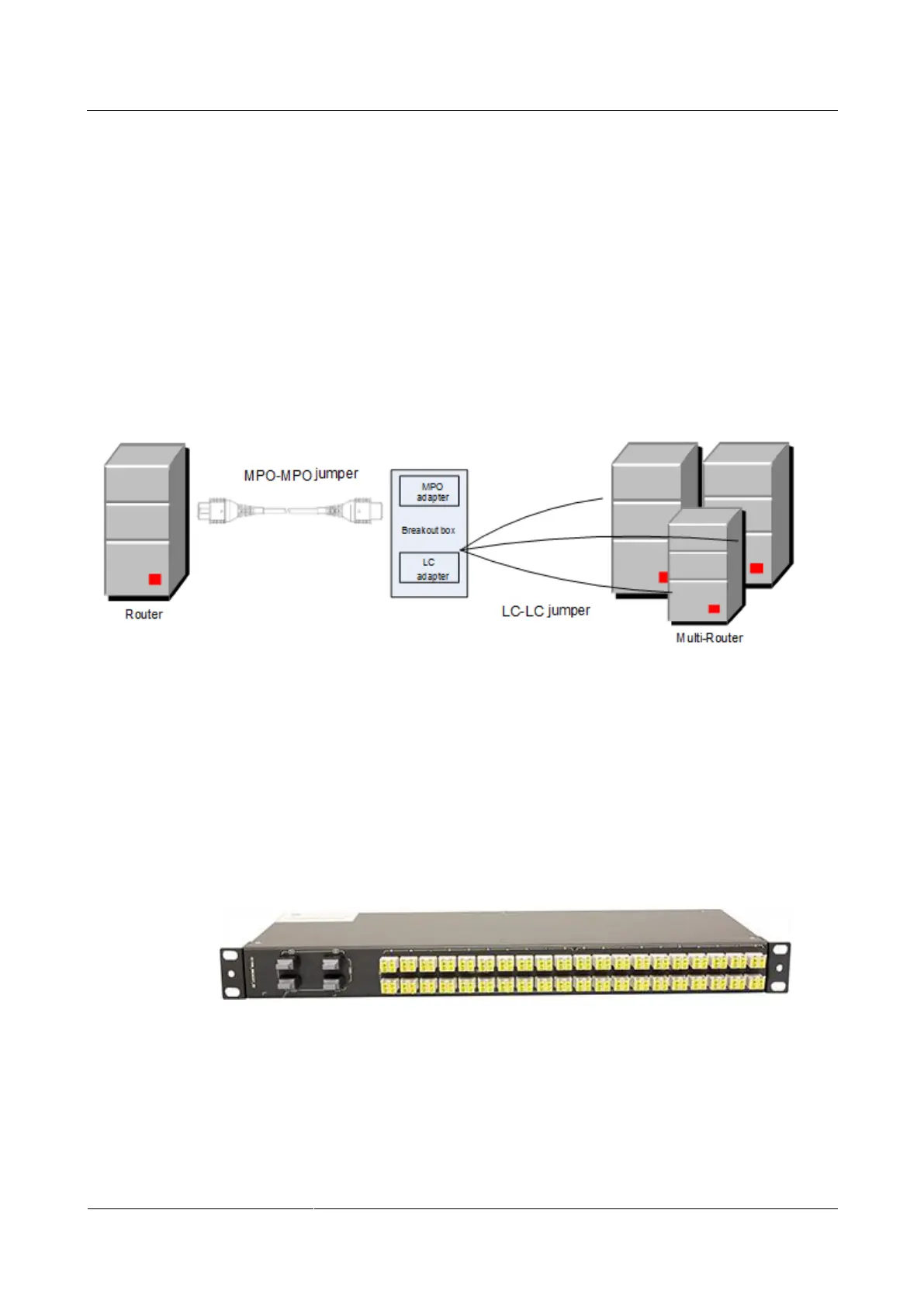

Figure 1-149 Breakout box cabling
1.13.2.2 4-Port-MPO-24-40-Port-LC-Breakout Box(multi-mode)
This section describes the appearance, components, MPO-24 jumper, and technical
specifications of this product.
Appearance
Figure 1-150 4-Port-MPO-24-40-Port-LC-Breakout Box(multi-mode)
