Huawei NE40E User Manual

NE40E
Hardware Description
1 Hardware Description
Issue 01 (2018-05-03)
130
Indicator
Color
Normal
Status
Abnormal
Status
Abnormal
Reason
off due to
overcurrent
or short
circuit.

The current
of modules
is seriously
imbalanced.
Technical Specifications
Item
Specification
Dimensions (H x W x D)
41 mm x 106.5 mm x 485 mm(1.61 in x 4.19 in x 19.09
in)
Weight
2.4 kg(5.29 lb)
Rated input voltage
-48 V/-60 V
Input voltage range
-40 VDC to -72 VDC
Maximum input current
63 A
Maximum output power
2200 W
Typical power consumption
148.5 W
Typical heat dissipation
481.8 BTU/hour
1.8.4.4 DC PEM
The DC PEM is used to connect the DC power supply. Each PEM provides eight power inputs.
The four terminals on the right side are connected to the power supply plane on the client side,
and the four terminals on the left are connected to the power supply plane on the client side.
The DC PEM is fully configured with the entire system. The system has two PEMs.
Appearance

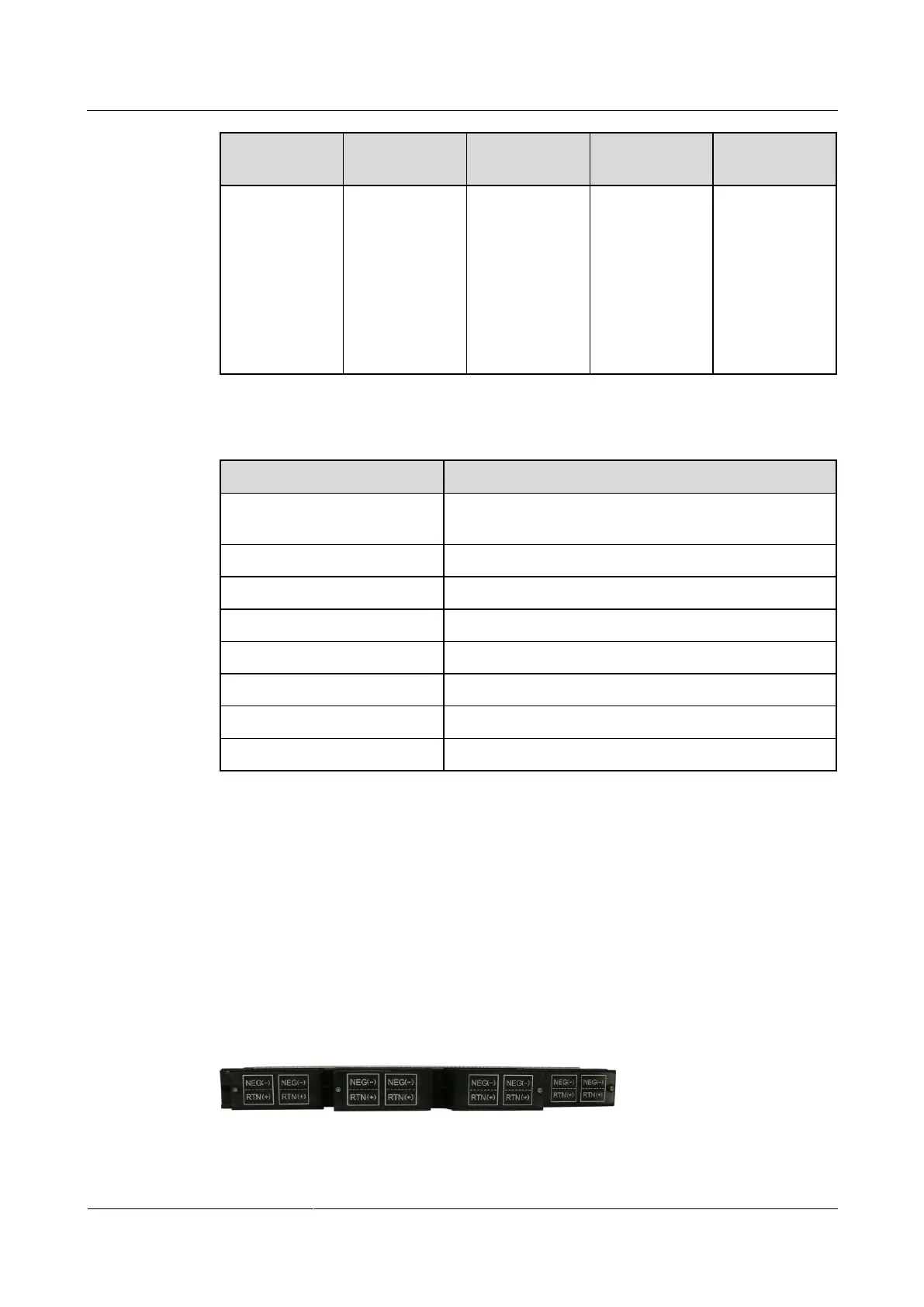

Figure 1-45 shows the appearance of a DC PEM.
Figure 1-45 DC PEM
