Table 1-1631 Mapping products and versions
Earliest Software Version

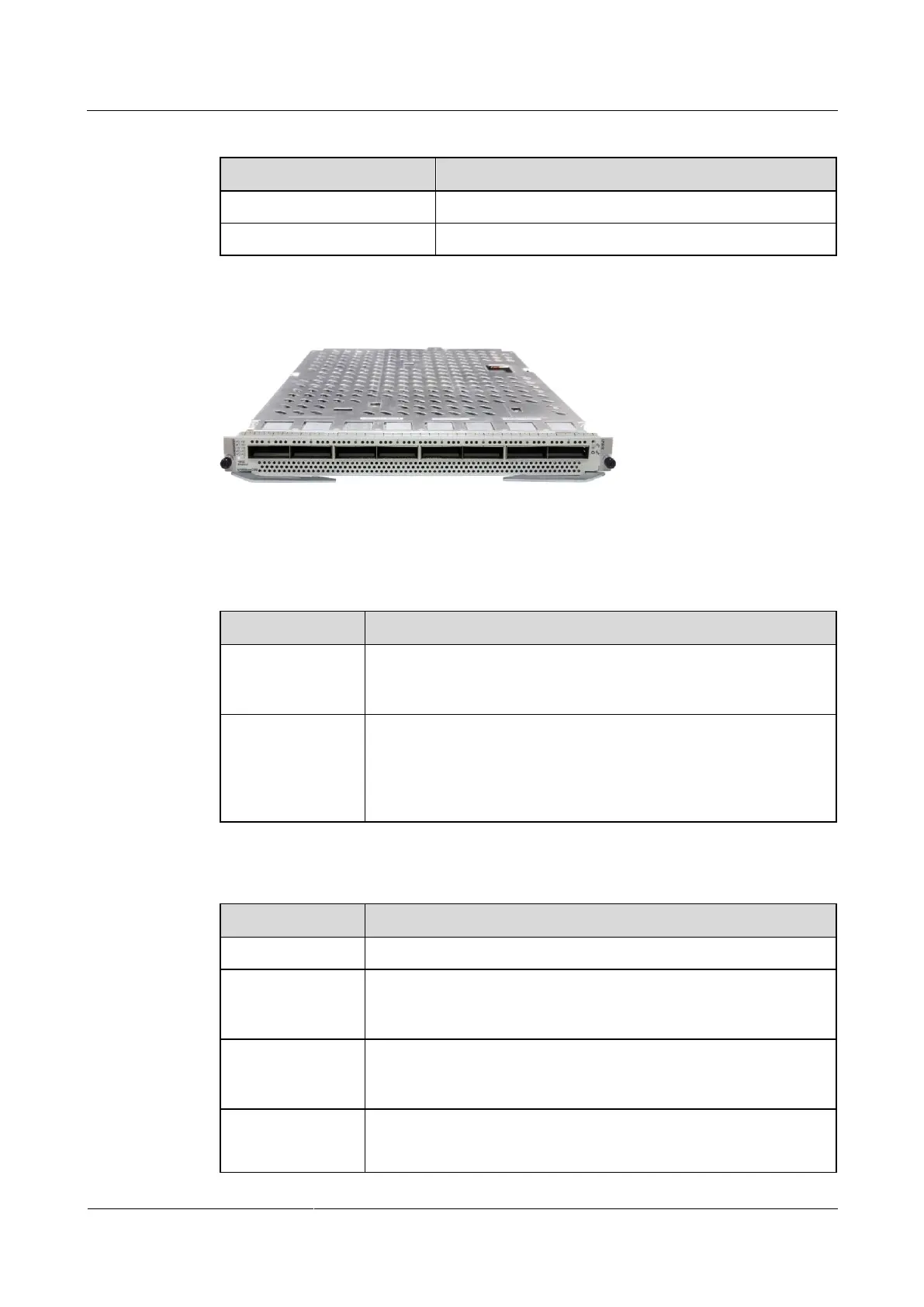

Appearance
Panel
Table 1-1632 Buttons
Board removal button. To remove a board, hold down the OFL
button for about 6s until the OFL indicator turns on, and then remove
the board.
When you press the button, the Breakout indicators stop status
cycling and remain in the current status. Then, each time you press
the button, the Breakout indicators' status switches. If you do not
press the button in 60s, the Breakout indicators automatically start
status cycling.
Table 1-1633 Indicators
If the indicator is steady on, the board can be removed.
If the indicator blinks once every 2s (0.5 Hz), the system is running
properly. If the indicator blinks twice every second (2 Hz), the board
is starting and has not completed registration.
If the indicator is steady on, the link is Up. If this indicator blinks,
data is being transmitted or received. If the indicator is off, the link is
Down.
0 to 9 100GE
Breakout (green)
Breakout 0-9: breakout indicator. If breakout indicator X is on, the
interface indicators are showing the running status of breakout
channel X. For example, if breakout indicator 0 is on, interface
