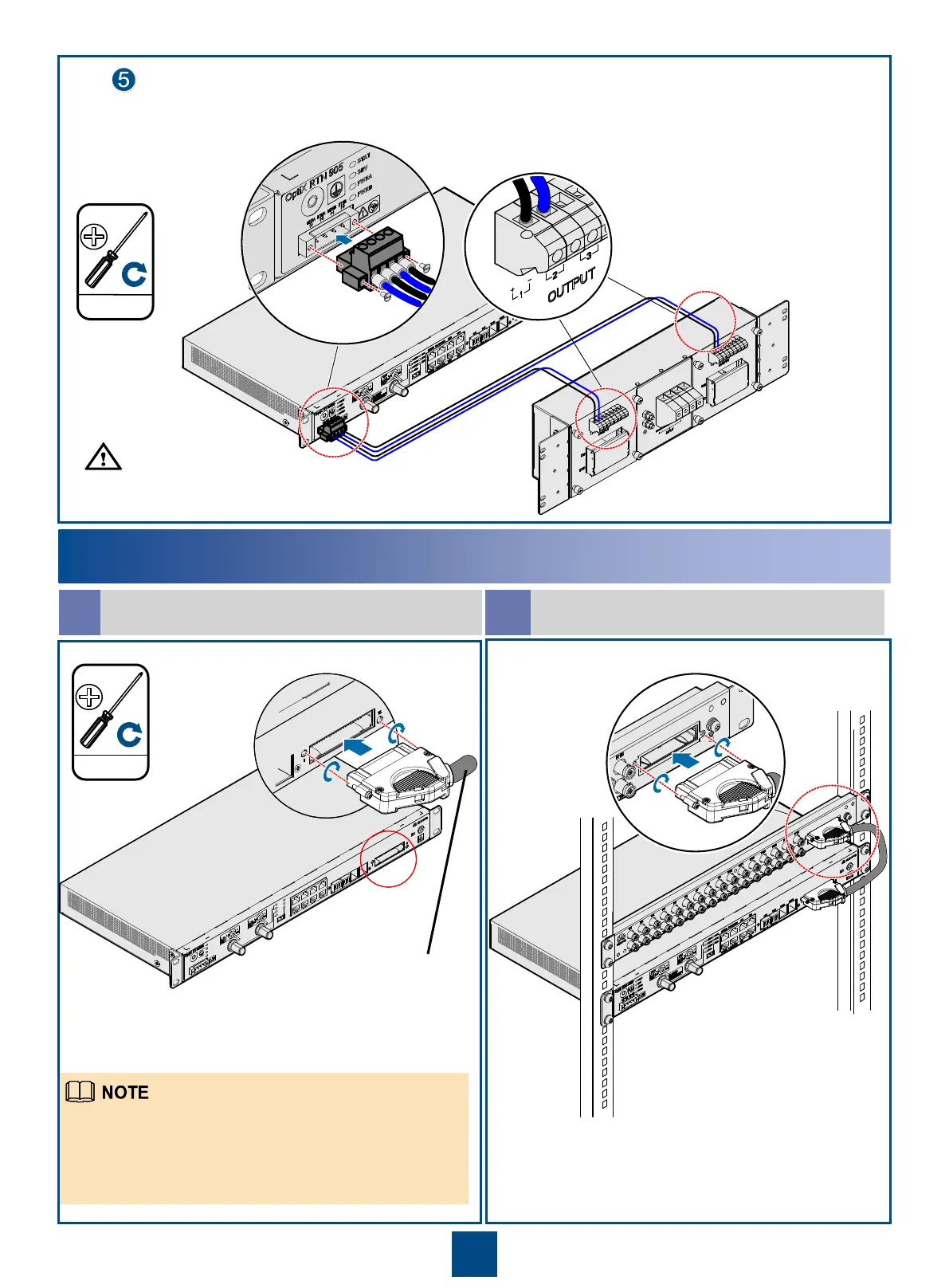

Confirm that the circuit breaker of the PDU is switched to the off position. Insert the DC connector into the
power port on the chassis. Confirm that the two groups of power cables are connected to different power
modules. Secure the DC connector with bolts.
a
Optional: Install E1 cables
connected to an E1 panel.
b
2
Install E1 cables.
For information about the wire sequence of E1 cables, see
the pin assignment information delivered with these E1
cables or the cable section in the Hardware Description.
When assembling the DDF-side connector for a 1.6 mm
diameter E1 cable, use a type 75-1-1 connector and a pair
of 2.5 mm or 1.7 mm crimping tool.
0.4±0.03 N·M
M2.5
0.4-0.5 N·M
M2.5
Optional: Install E1 cables
connected to another device.
E
1
(
1
~
1
6
)
To another device
If an external power box is used, cut off the input of the power box
before you connect power cables.
CAUTION
