Huawei SUN2000-4.95KTL-JPL1 User Manual

4.5.1 Wall-mounted Installation
Wall-mounted Installation

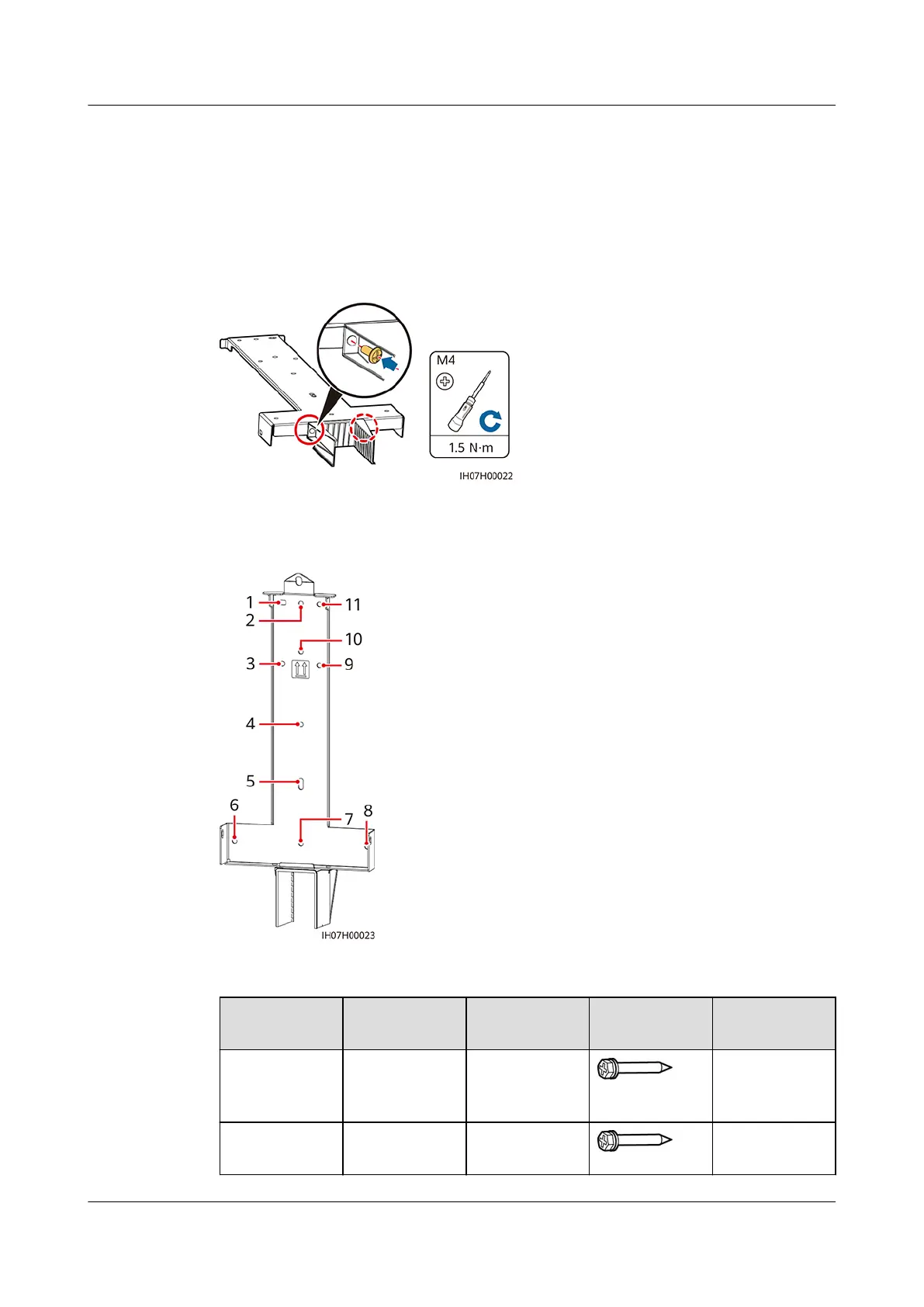

Step 1 Assemble the mounting bracket.
Figure 4-8 Assemble the mounting bracket
Step 2 Select mounting holes based on the wall structure.
Figure 4-9 Mounting bracket
Table 4-1 Select mounting holes based on the wall structure
Load-Bearing
Structure
Screw Type Screw
Quantity
Screw
Appearance
Mounting
Holes
Plywood
(recommende
d)
M6 tapping
screw
5 PCS 1, 5, 6, 8, 11
Frame post M6 tapping
screw
5 PCS 2, 4, 5, 7, 10
SUN2000-4.95KTL-JPL1
User Manual 4 Installation
Issue 05 (2023-02-17) Copyright © Huawei Technologies Co., Ltd. 31
