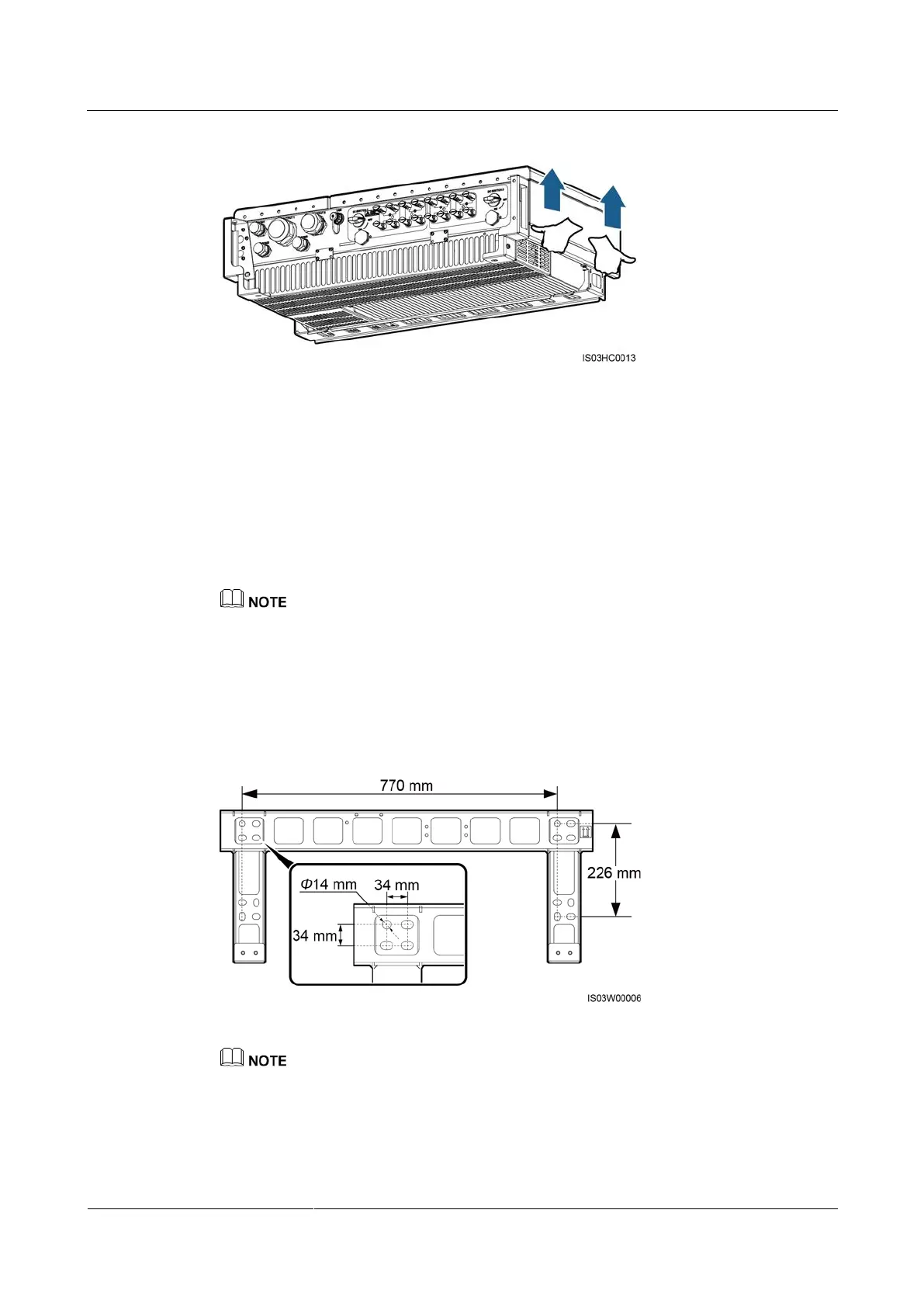

Figure 4-9 Lifting the SUN2000
Step 2 Lift the SUN2000 from the packing case and move it to the installation position with the help
of multiple persons.
----End
4.3.3 Installing the Mounting Bracket
Prerequisites
To install the SUN2000, you need to prepare expansion bolts. M12x60 stainless steel expansion bolts are
recommended.
Context
Figure 4-10 shows the SUN2000 mounting bracket dimensions.
Figure 4-10 Mounting bracket dimensions
The SUN2000 mounting bracket has 16 tapped holes in four groups. Mark any hole in each group based
on site requirements and mark four holes in total. Two round holes are preferred.
