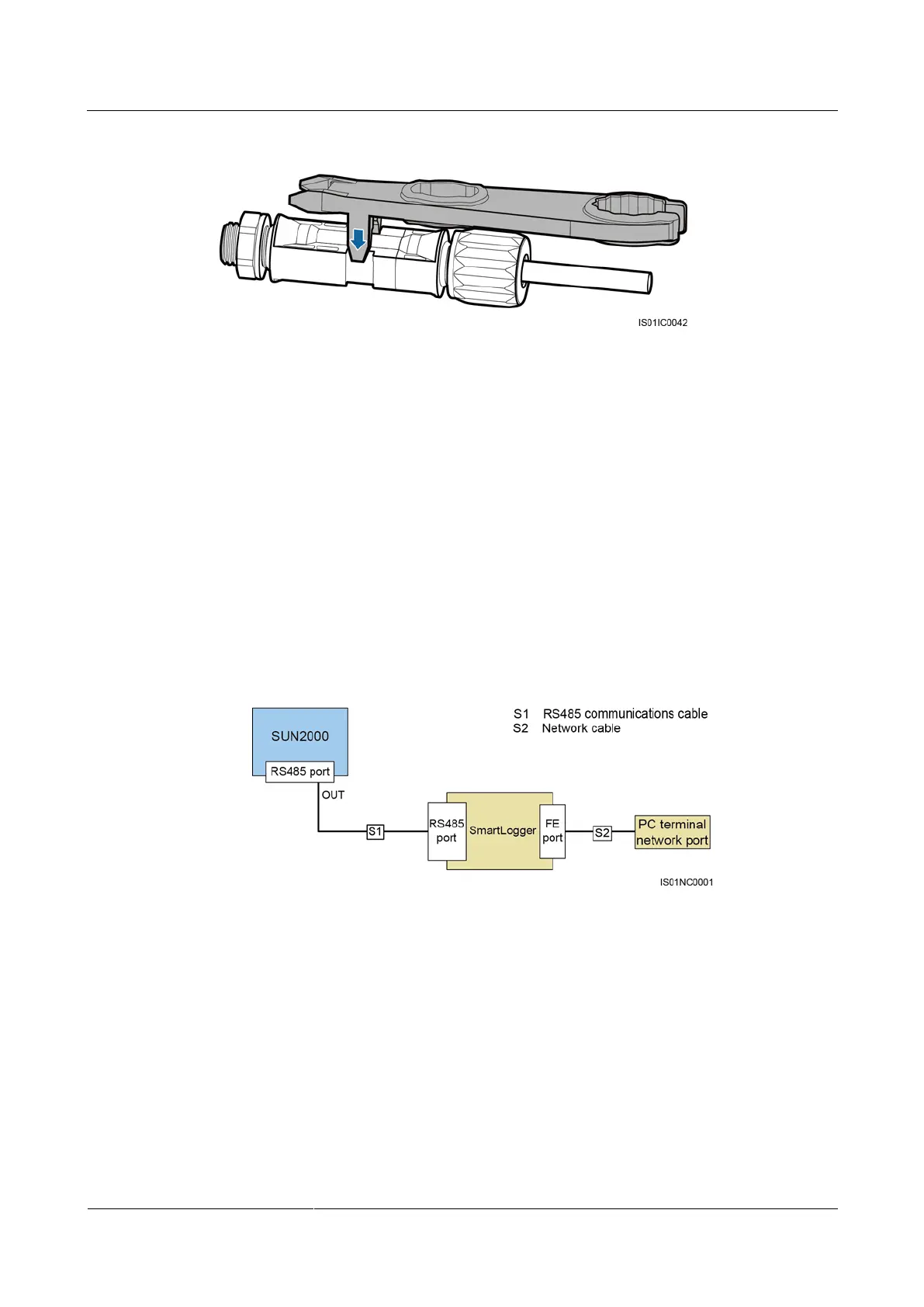

Figure 5-21 Removing a DC input connector
5.5 Connecting Communications Cables
5.5.1 Communication Mode Description
RS485 Communication
The SUN2000 can connect to the SmartLogger over RS485 or to a PC through the
SmartLogger to implement communication. You can use the SUN2000 APP, SmartLogger,
embedded WebUI, or the network management software (such as the NetEco) on the PC to
query information about the SUN2000, such as energy yield, alarms, and running status.

Figure 5-22 shows the communication mode for a single SUN2000.
Figure 5-22 Communication mode for a single SUN2000

Figure 5-23 shows the communication mode for multiple SUN2000s.
If multiple SUN2000s are used, connect all the SUN2000s in daisy chain mode over an
RS485 communications cable.
