5.5 (Optional) Installing the Power Cable of the
Tracking System
Precautions
● The tracking system obtains power from the AC three-phase power grid. The
rated voltage of the power supply is the rated output voltage of the solar
inverter.
● Keep ammable materials away from the power cable.
● The power cable must be protected with a conduit to prevent short circuits
caused by insulation layer damage.
● Connect the power cable of the tracking system before the AC output power
cable. Otherwise, reworking will be caused.
Procedure
Step 1 Prepare a cable.
Step 2 Remove the corresponding rubber rings.
Step 3 Connect the power cable of the tracking system.

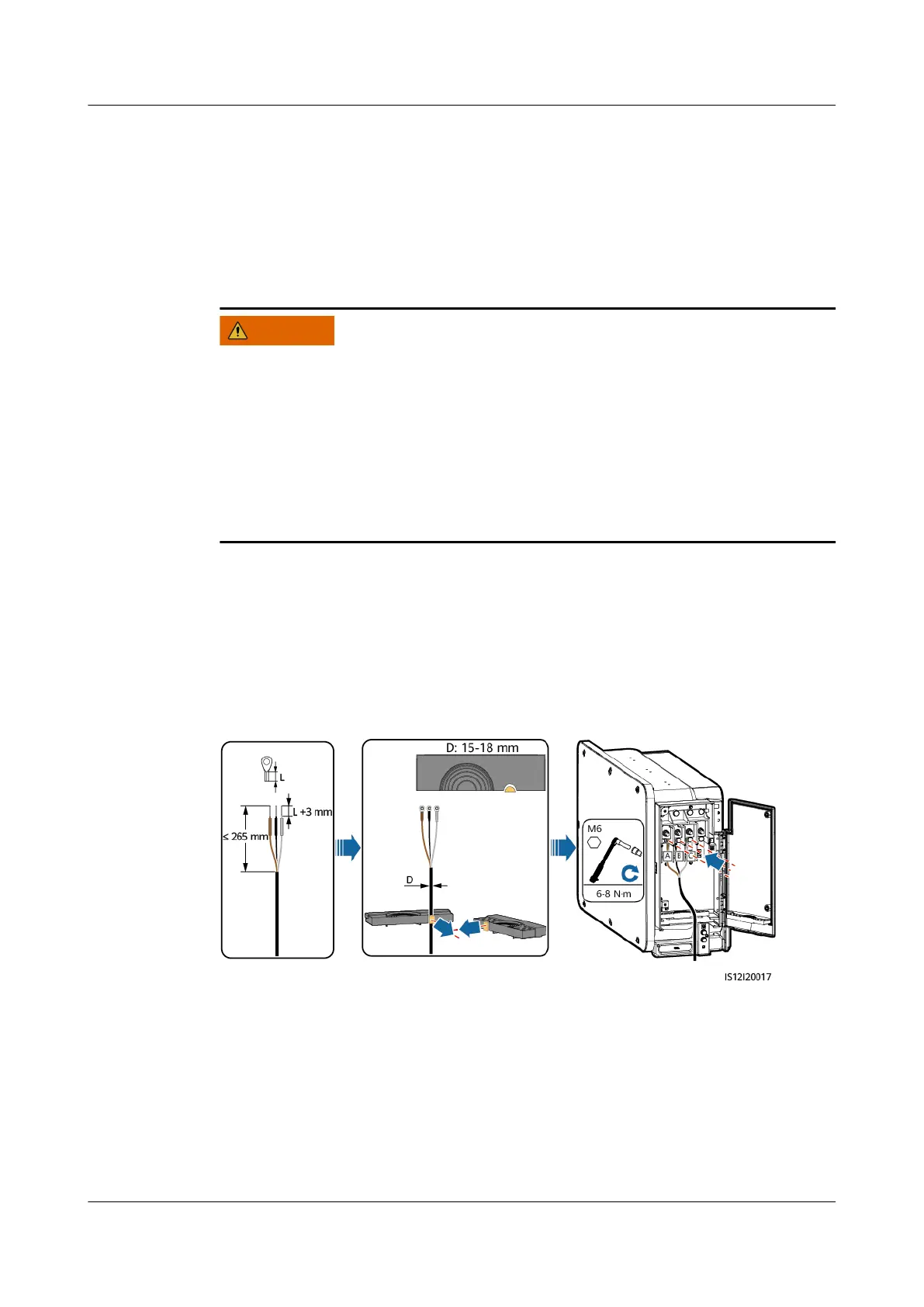

Figure 5-11 Connecting the power cable of the tracking system
----End
5.6 Connecting an AC Output Power Cable
Prerequisites
● A three-phase AC switch should be installed on the AC side of the solar
inverter. To ensure that the solar inverter can safely disconnect itself from the
SUN2000-(100KTL, 110KTL, 115KTL)-M2
User Manual 5 Electrical Connections
Issue 02 (2022-06-30) Copyright © Huawei Technologies Co., Ltd. 47
