The example used in this document describes a frame post installation of the SUN2000.
Procedure
Step 1 Determine the positions for drilling holes using the marking-off template. Level the positions
of mounting holes using a level, and mark the positions with a marker.
If the wall uses a frame structure, tightening screws need to be installed at the frame post. Use a stud
finder to find the frame post behind the wall panel.
Step 2 Install tightening screws.
Avoid drilling holes into the utility pipes and/or cables attached to the back of the wall.
Step 3 Secure the mounting bracket.

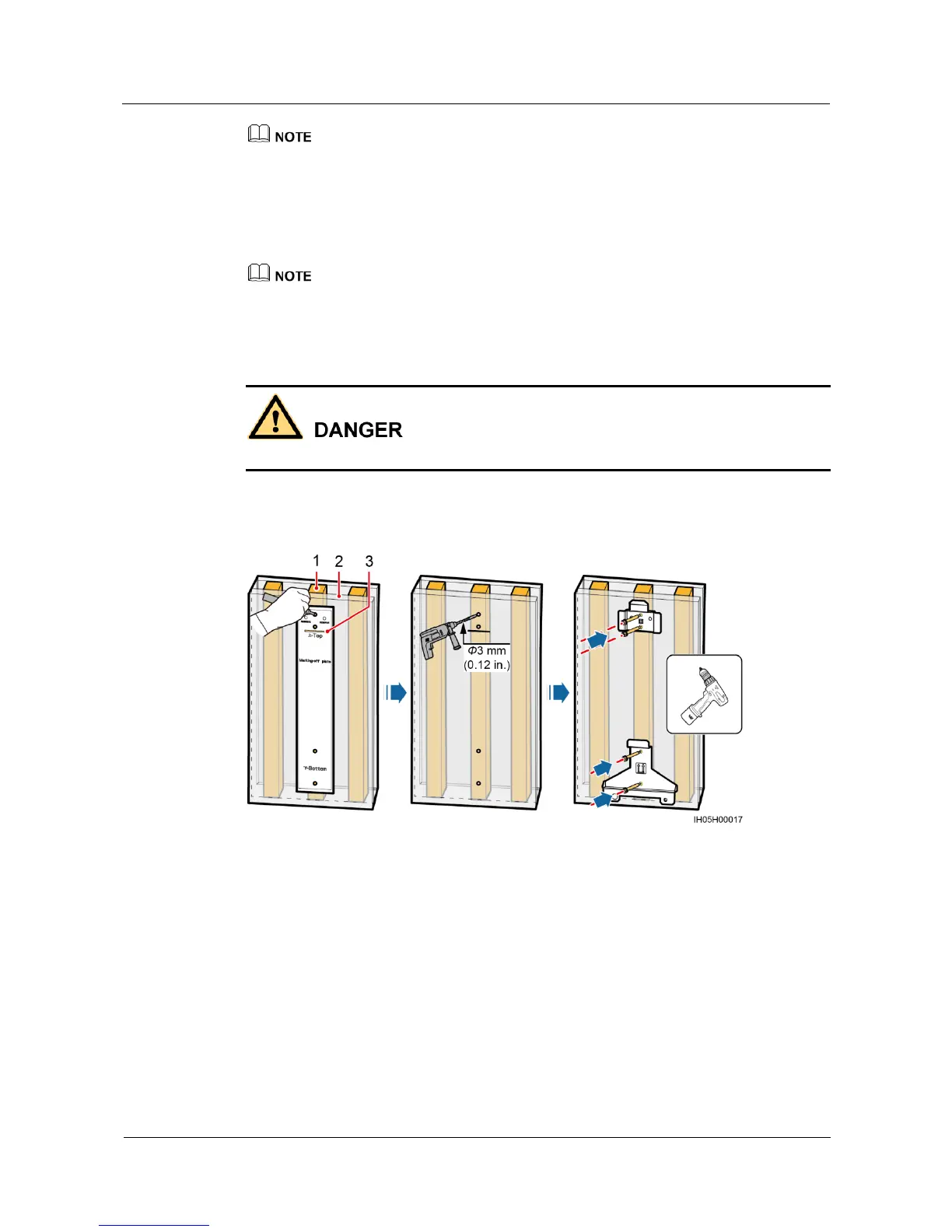

Figure 4-8 Wall-mounted installation
----End
4.4.2 Support-Mounted Installation
Prerequisites
Prepare M6 stainless bolt assemblies (including flat washers, spring washers, and M6 bolts)
with appropriate lengths as well as matched flat washers and nuts based on the support
specifications.
