Hunter SRC Plus 600i User Manual

9

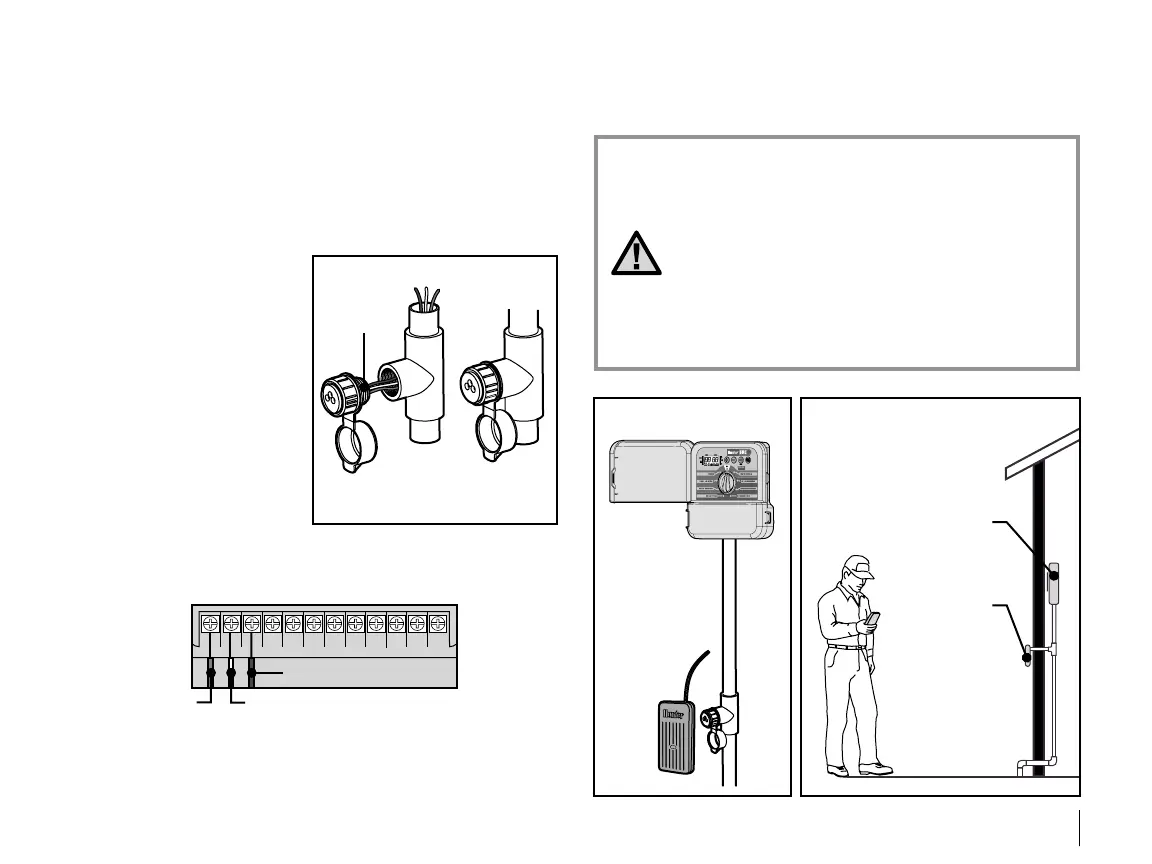

The Hunter SRC Plus is remote-ready for use with the SRR or ICR
remote control system. The remote makes it possible for contractors
and end-users alike to operate an system without having to walk back
and forth to the controller.
To utilize the SRR or ICR Remote Control System you must install the
SmartPort
®
outlet.
1. Install a ½" female threaded
PVC “Tee” in the field
wiring conduit (PVC pipe)
approximately 12" below the
SRC Plus
.
2. Feed the red, white, and blue
wires of the harness through
the base of the “Tee” and into
the wiring compartment as
shown in Figure 1.
3. Screw the harness housing
into the “Tee” as shown in
Figure 1.
4. Access the terminal strip area and attach the red wire to the left AC
screw slot, attach the white wire to the next AC screw slot and attach
the blue wire to the screw slot marked “
R”.
AC AC R RS C MV 1 2 3 4 5 6
White
Blue
Red
The wiring harness is now ready for remote control use. Please refer to
the SRR or ICR owner manual for further information or contact your
local Hunter distributor for ordering information.
CONNECTING A SRR OR ICR REMOTE CONTROL (not included) ................................
Controller
Receiver
Outdoor InstallationIndoor Installation
Plus
Plus
NOTE: Any extension of the wiring on the remote
harness may result in an error message in the
controller display and possible malfunction of the
remote unit due to radio interference. In some
situations, lengthening of the harness may work fine,
in others it may not work at all (it is site specific). In
either case, extending the wiring harness should be
done using shielded cable to minimize the possible
effects of electrical noise. For easiest installation,
order a new Hunter SRR-SCWH SmartPort
®
wiring
harness with a full 25 feet of shielded cable.
1
/2" Thread
To
Controller
Pre-assembled Assembled
Figure 1
