56 Husqvarna service manual 104 72 30-26
Dismounting the side feeding mechanism
Dismount cover, upper arm and cover, free-arm and main motor.

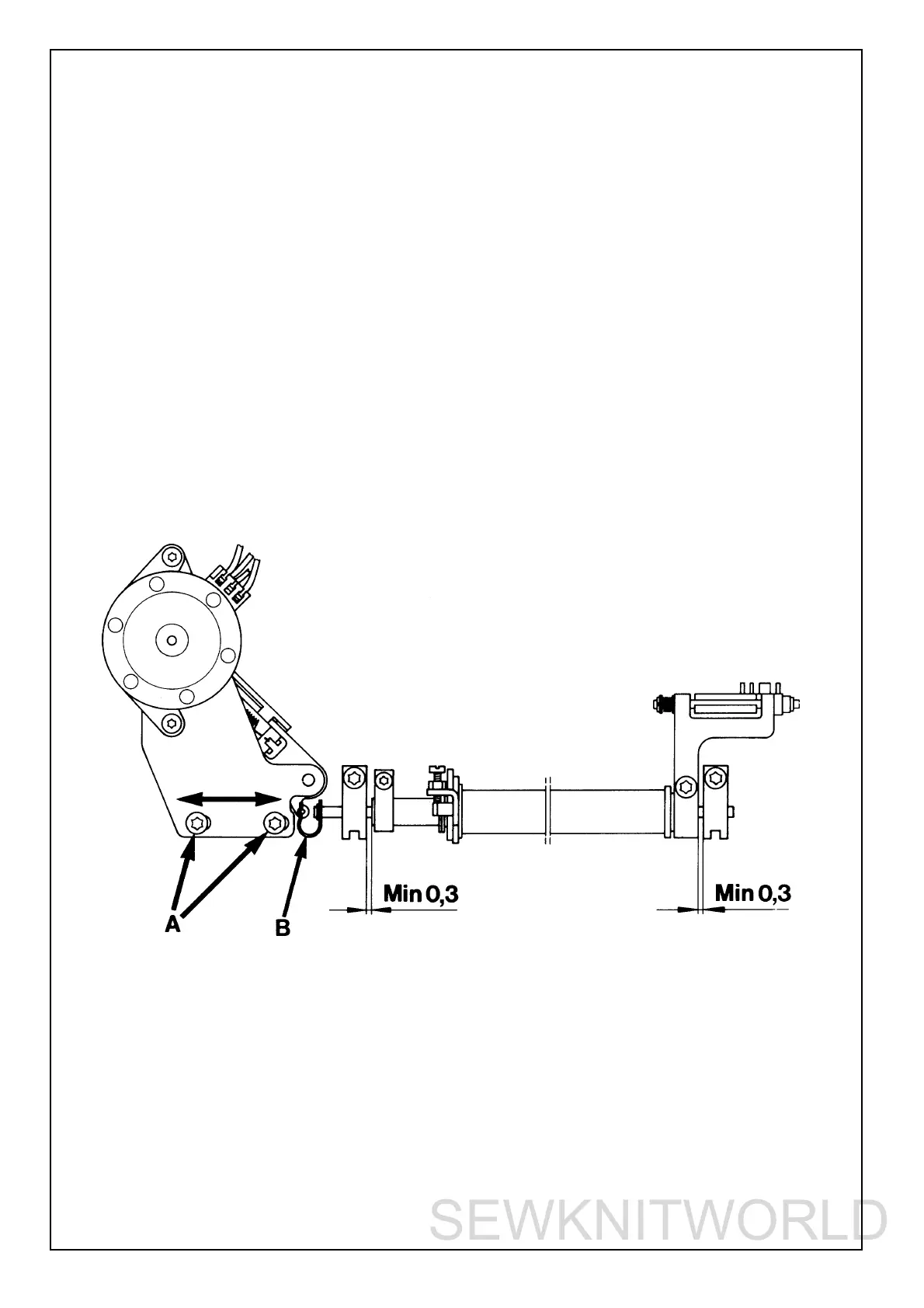

Loosen the clip (B) between the feeding device and the side feeding mechanism by pushing
it downwards.
Loosen screws (A) and remove the side feeding mechanism.
The step motor is connected to the circuit board according to the wiring plan.
Mount in the reverse order.
Thereafter set:
- The pre-setting of the step motor of the side feeding (P.42).
- The sideways setting of the feed dog (P.34).
- The stitch length balance (P.40).
