20
7 Repairs

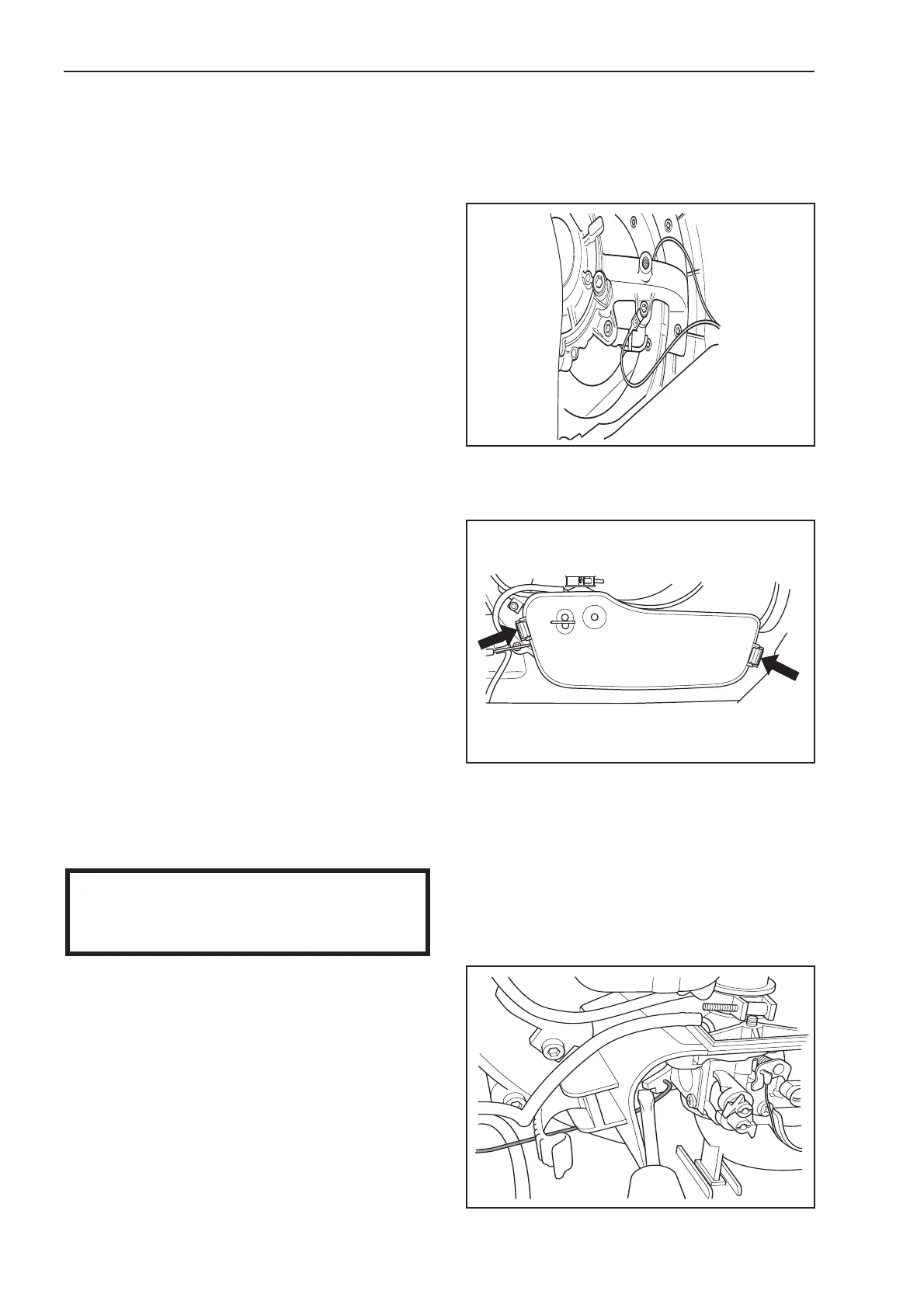

7.3 Air filter and carburettor
7.3.1 Dismantling the air filter
1. Loosen the four snap fasteners of the outer cover
with a chisel.
2. Loosen the two snap fasteners of the air filter lid
with a chisel.
7.3.2 Assembling the air filter
1. Fasten the two snap fasteners of the air filter.
7.3.3 Dismantling the carburettor
1. To loosen the choke lever from its holder pull the
lever straight out. Place a chisel between the lever
and the holder. Press down on the chisel and twist
the lever counterclockwise at the same time.
2. Dismantle the choke lever.
8015-005
8015-033
IMPORTANT INFORMATION!
The choke lever can be difficult to get out of its
holder. Read the instructions carefully.
8015-006
