32
7 Repairs

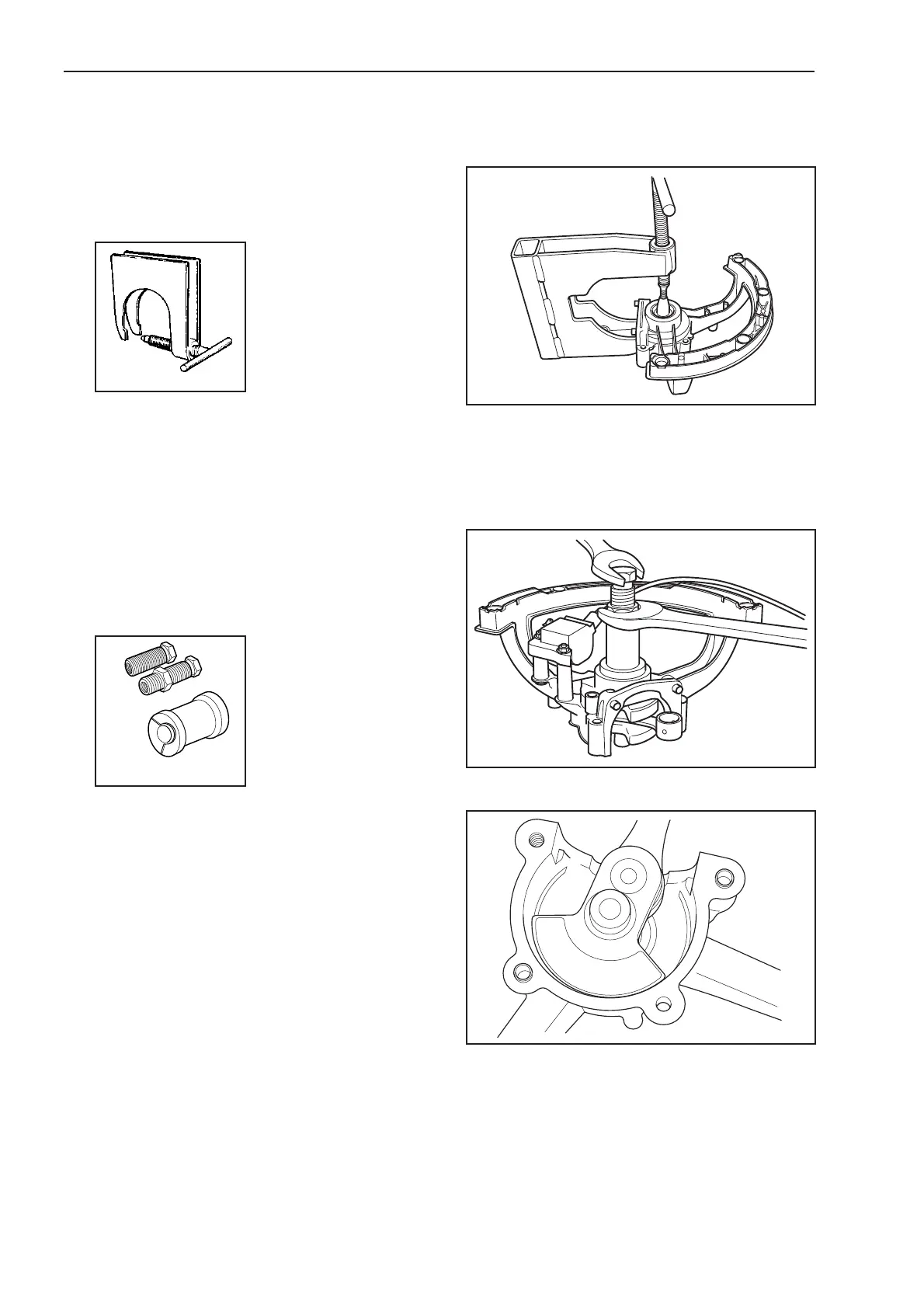

8. Use pulling tool 502 51 61-01 to take out the
crankshaft. The crankhouse bearing should
remain. The guide bushings should remain in the
crankhouse.
7.7.2 Assembling the cylinder and crankshaft
1. Mount the crankshaft with mounting tool
502 50 30-16.
2. Slip the sleeve over the crankshaft. Screw down
the screws on the crankshaft until they stop. Turn
the nut clockwise while holding down the screw.
3. Mount a new gasket on the crankshaft cover.
Check that the guide bushings are in place.
8015-023
502 51 61-01
8015-024
502 50 30-16
8015-025
