TECHNICAL DATA

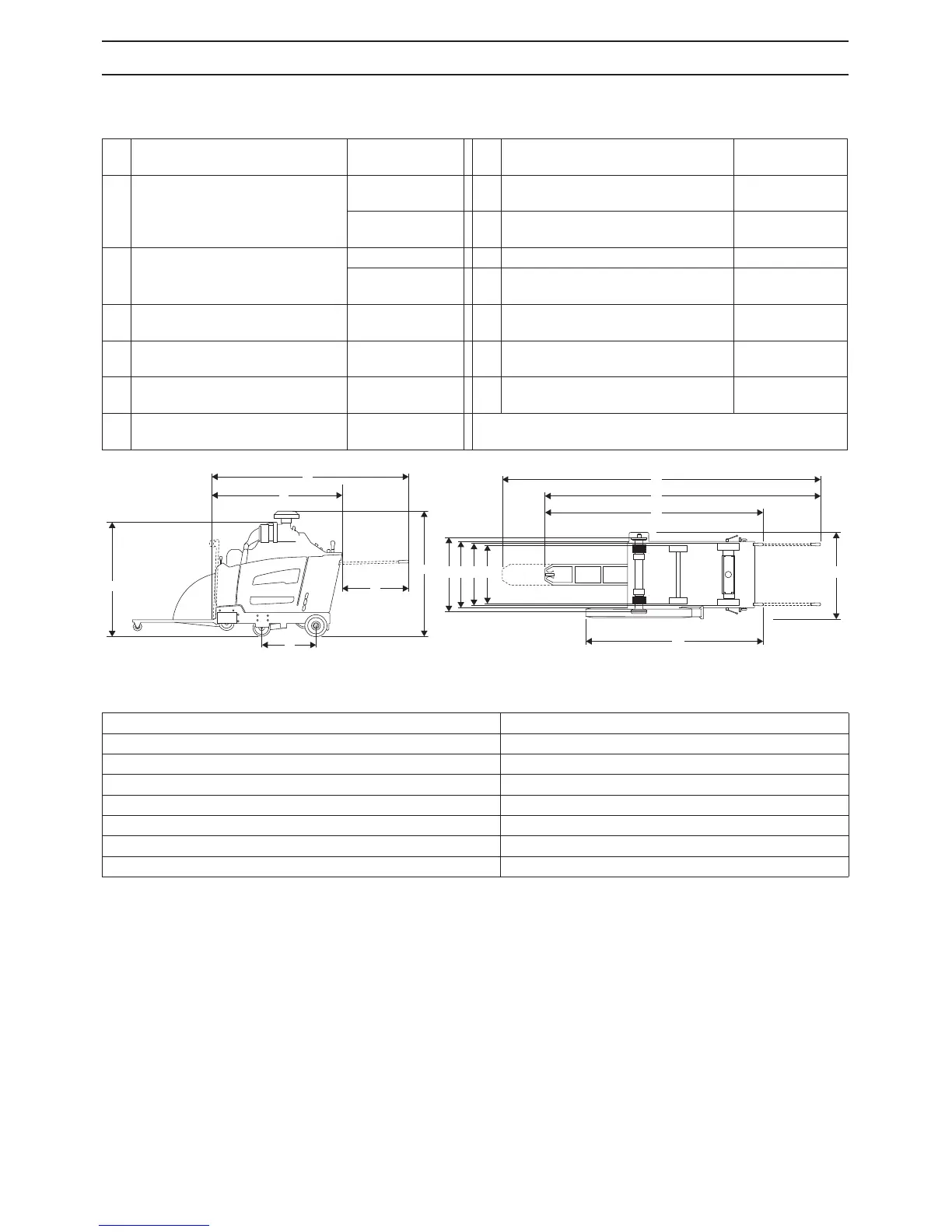

Saw dimensions FS5000 D
Engine FS5000 D
For further information and questions about this specific engine please see, www.yanmar.com
Note 1: As specified by engine manufacturer. The power rating of the engines indicated is the average net power output (at
specified rpm) of a typical production engine for the engine model measured to ISO3046. Mass production engines may differ from
this value. Actual power output for the engine installed in the final machine will depend on the operating speed, environmental
conditions and other variables.
A Width, inch/mm 33 1/4 / 844 H
Saw length (pointer up, handles
extented), inch/mm
86 1/4 / 2191
B
Center to center wheel width, inch/
mm
Front, 20 3/8 / 518 J
Min. overall height (no exhaust pipe, no
pre-cleaner cap), inch/mm
50 3/4 / 1289
Rear, 21 / 533 K
Max. overall height (top of pre-
cleaner), inch/mm
52 1/2 / 1332
C
Outside to outside wheel width,
inch/mm
Front, 22 3/8 / 569 L Wheel base lenght, inch/mm 16 3/4 / 427
Rear, 24 / 609 M
Guard to handle lenght (handles in),
inch/mm
69 / 1753
D Frame width, inch/mm 25 / 635 N
Max. overall lenght (handles in), inch/
mm
89 1/2 / 2273
E
Inner flange to inner flange width,
inch/mm
28 5/8 / 726,5 O
Max. overall lenght (handles extended,
pointer down), inch/mm
116 3/4 / 2964
F Handle extension, inch/mm 31 7/8 / 809 P
Max. overall lenght (handles extended,
pointer extended), inch/mm
135 1/2 / 3444
G
Min. saw lenght (handles removed,
pointer and guard up), inch/mm
58 1/2 / 1485
Engine specifications Yanmar, 4TNV88C-DHQ
Max. engine output (see note 1) 47,6hp@3000rpm (35,5kW@3000rpm)
Displacement, cu.in. / dm
3
134 / 2,2
Cylinders 4
Stroke, inch / mm 3,5/3,55 / 88/90
Fuel tank capacity, gallon / l 6,5 / 24,5
Air filter Radial seal with pre-cleaner and restriction indicator
Starter Electric
