RELAYS AND FUSES

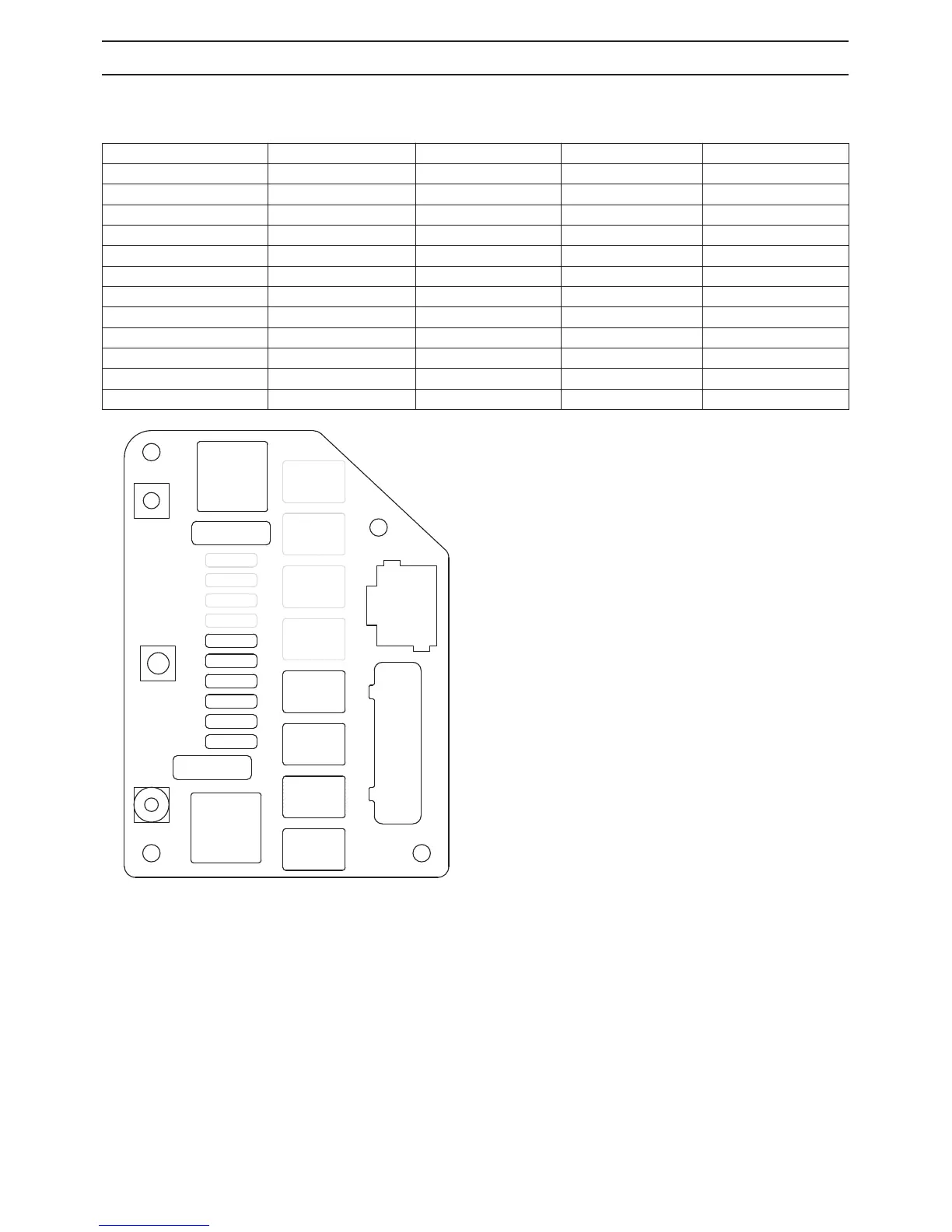

Relays and fuses - FS5000 D
Function Designation Relay (amp) Designation Fuse (amp)
Glow plugs K1 70 F1 60
Water pump, (optional) K2 25 F2 25
Lights, (optional) K3 25 F3 25
Slurry system, (optional) K4 25 F4 25
5th wheel, (optional) K5 25 F5 25
Hydraulic lift pump K6 25 F6 25
Blade clutch K7 25 F7 15
Fuel pump K8 25 F8 20
EGR/Fuel Sol. K9 25 F9 20
Start motor K10 70 F10 60
ECU n/a n/a ECU 25
HMI n/a n/a HMI 25
Water Pump
K2
Lights
K3
Slurry Sys.
K4
5th Wheel
K5
Hyd. Lift
K6
Blade Clutch
K7
Fuel Pump
K8
EGR/Fuel Sol.
K9
Glow Plugs
K1
Start Motor
K10
F2
F3
F4
F5
F6
F7
ECU
F8
F9
HMI
F1
F10
