30 – English
Maintenance

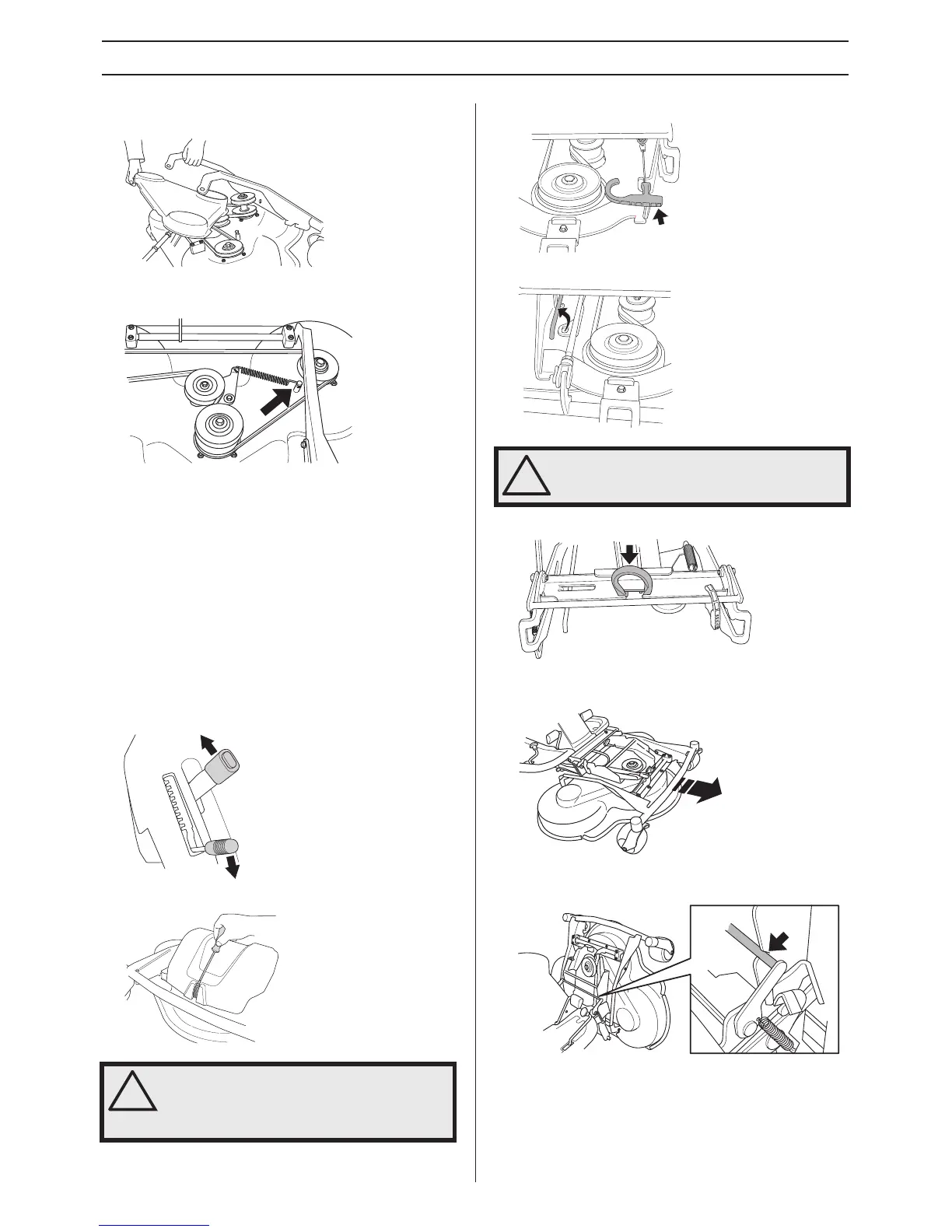

7 Remove the screws on the cutting cover. Lift the unit
frame and remove the cutting unit cover.
8 Loosen the spring that tensions the V-belt and pry off the
belt.
Assemble the parts in the reverse order.
Service position for the cutting unit
The cutting head can be placed in the service position to
provide easy access for cleaning, repairs and servicing. In the
service position the cutting unit is raised and locked in the
vertical position.
Placing in the service position
1 Position the machine on flat ground. Apply the parking
brake.
2 Set the cutting height control in the lowest position and lift
up the cutting unit.
3 Remove the front cover.
4 Disengage the spring for the drive belt tensioning wheel.
5 Loosen on the cutting height stay and place in the holder.
6 Remove the drive belt and place it in the belt holder.
7 Grip the front edge of the unit and pull forwards until it
stops
.
8 Lift the unit until it stops and a clicking sound is heard. The
unit loc
ks automatically in the vertical position.
Restoring from service position
1 Grip the front edge of the unit and loosen the lock, fold
down and slide in the unit.
!
WARNING! Wear protective glasses when
dismantling the cutting unit. The spring
which tensions up the belt may break and
cause personal injury.
!
WARNING! Observe caution to avoid
trapping your hand.
