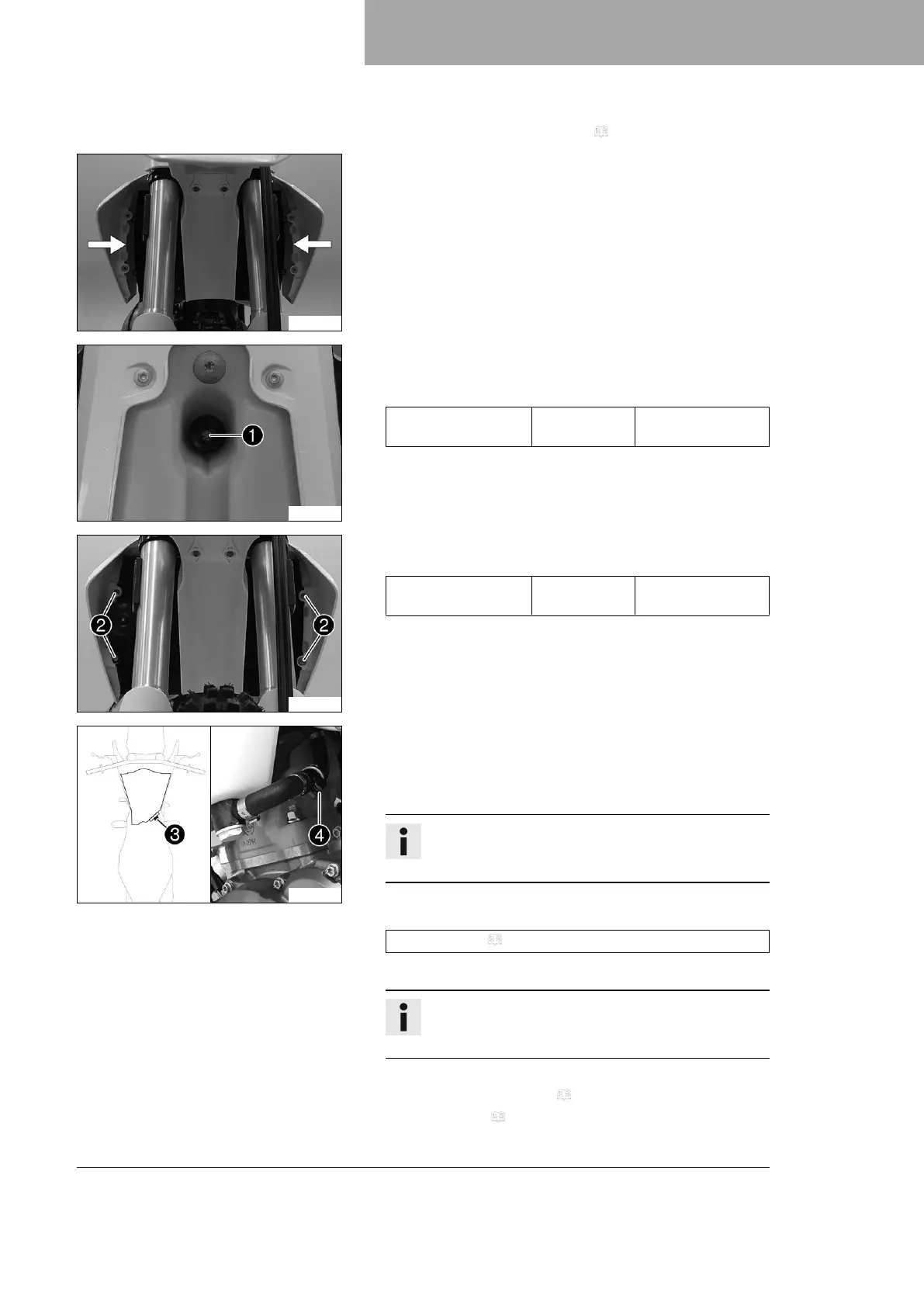

SERVICE WORK ON THE CHASSIS 12
75
Main work
– Check the throttle cable routing. ( p. 81)
H03706-11
– Position the fuel tank and fit the two spoilers to the sides in
front of the radiator bracket.
– Make sure that no cables or throttle cables are trapped or
damaged.
H03704-11
– Attach the fuel tank breather hose.
–
Mount and tighten screw
1
with the rubber bushing.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
(All EU/AR standard models)
– Position the horn with the horn bracket.
H03705-11
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
H03702-11
–
Plug in connector
3
for the fuel pump.
– Remove the wash cap set.
– Clean the quick release coupling thoroughly with compressed
air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
– Spray silicone spray onto a lint-free cleaning cloth and lightly
lubricate the O-ring of the quick-release coupling.
Silicone spray ( p. 157)
–
Join quick release coupling
4
.
Info
Route the cable and fuel line at a safe distance from
the exhaust system.
Finishing work
– Install the right side cover. ( p. 72)
– Mount the seat. ( p. 67)
