Transmissions, Drive Belt, Handlebar, Instrument Panel & Brake
Transmissions, Hoses & Drive Belt (Multi-Page)
48" TrimStar Parts Manual - 939504CE - HTTSRS048KAWFS600VC
Thu May 28 06:43:20 UTC 2020
4-1
9
11
Table of Contents
Table of Contents
3
General Information
4
Frame & Cover
6
Frame
7
Cover
9
Transmissions, Drive Belt, Handlebar, Instrument Panel & Brake
10

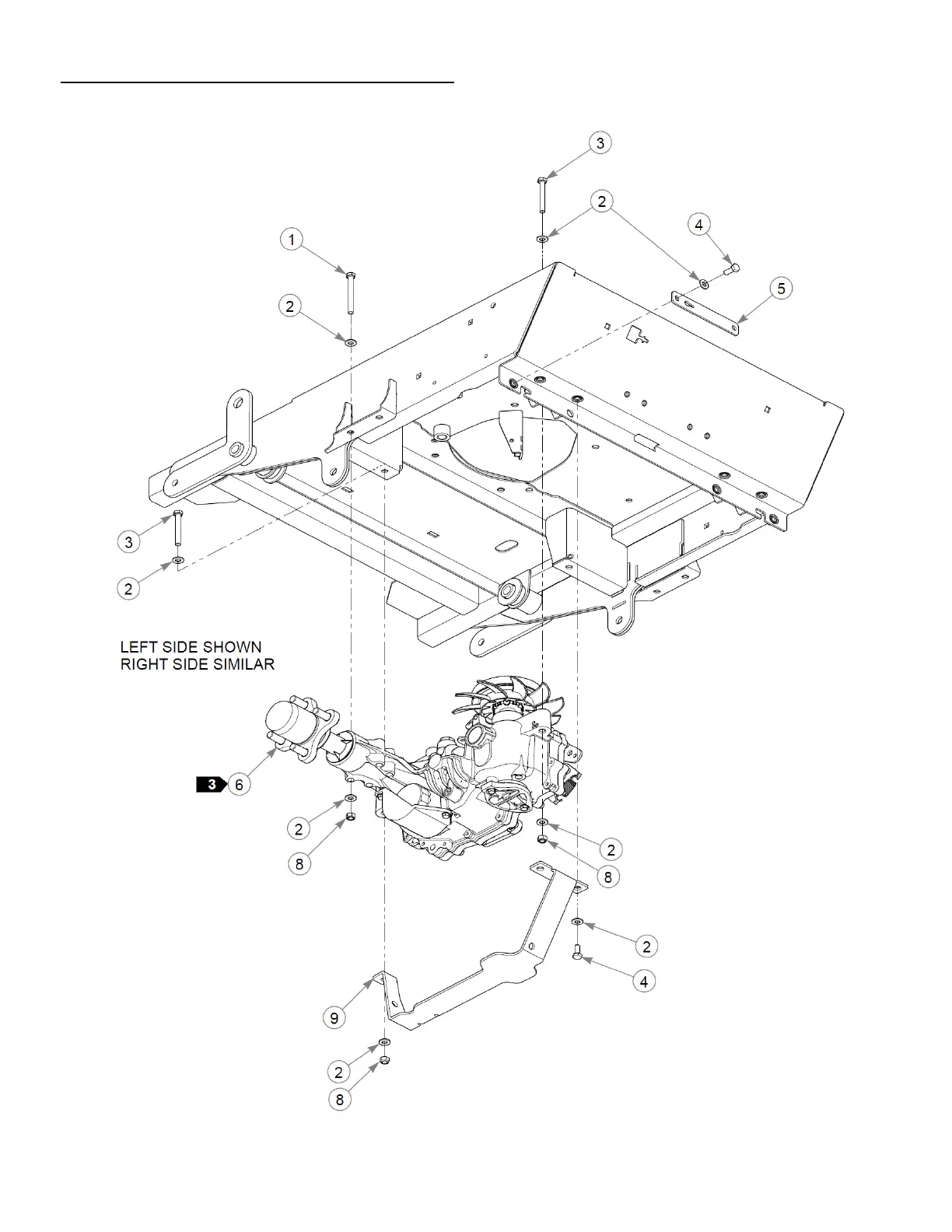

Transmissions, Hoses & Drive Belt (Multi-Page)
11
Transmission Service Parts
19
Instrument Panel (Multi-Page)
21
Handlebar - Steering Sub-Assembly
29
Brake
30
Wheels & Tires Wheels & Tires
32
Front Wheel Assembly
35
Drive Wheel Breakdown
37
Engine, Muffler, Clutch & Fuel System
38
Engine, Muffler & Clutch (Multi-Page)
39
Engine Service Parts
43
Battery
44
Fuel System
46
Fuel Tank Service Parts
49
Deck, Deck Belt, Blades & Deck Lift
50
Service Deck
51
Deck Pulleys & Spindles
53
Spindle Service Parts - 607208
55
Deck, Deck Belt & Blades
57
Deck Lift & Mounting Hardware (Multi-Page)
59
