SPECIFICATIONS
HT4400 Instruction Manual 2-5
Machine Torch – 128342 (with 15 ft (4.6 m) Leads)
See Section 6 Parts List for other lead lengths
Maximum recommended production cutting thickness 1-1/4" (32 mm)
Maximum current at 100% duty cycle 400 Amp
Dimensions See figure below
Weight - Torch only 2 lbs (0,9 kg)
Weight - Torch and 15 ft (4.6 m) leads w/o coolant 14.7 lbs (6,7 kg)

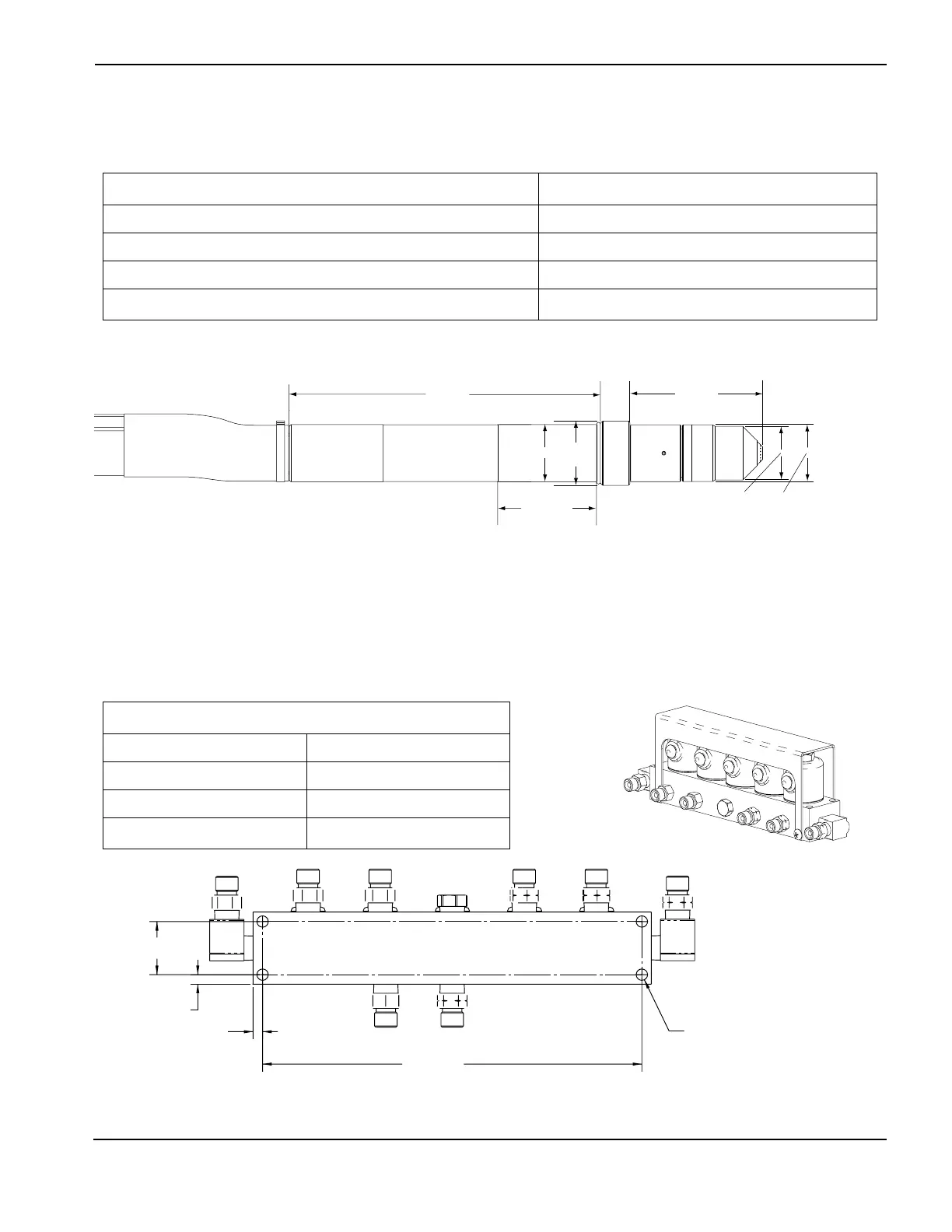

Dimensions and Weight
Weight 6.6" (168 mm)
Height 2.5" (64 mm)
Depth 1.2" (30 mm)
Weight 2.5 lbs (1,1 kg)
Torch with Dimensions
Valve Cluster Mounting Dimensions
0.88"
(22 mm)
0.16"
(4 mm)
0.16"
(4 mm)
6.25"
(159 mm)
0.19" (4.8 mm)
diameter.
Valve Cluster – 077035
3.1

Hypertherm HT4400 Specifications
