Hypertherm powermax 380 User Manual

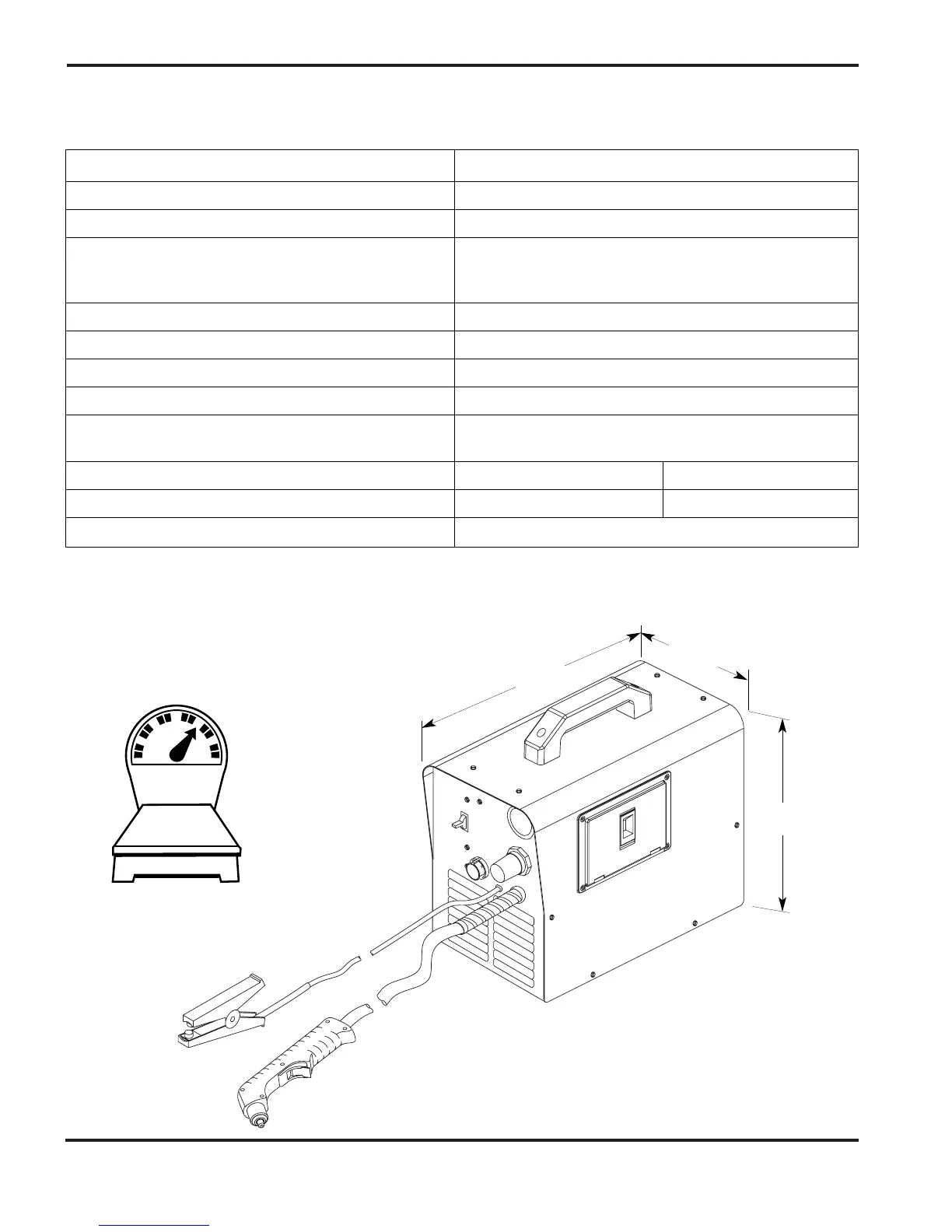

SPECIFICATIONS
2-2 powermax380 Operator Manual
0
Specifications – Power Supply
Rated Open Circuit Voltage (U
0
) 288 VDC
Rated Output Current (I
2
) 14 A – 27 A
Rated Output Voltage (U
2
) 91 VDC
Duty Cycle at 40°C 35 % (I
2
=27 A, U
2
=91 V)
(See data plate on power supply for 60 % (I
2
=21 A, U
2
=88 V)
more information on duty cycle.) 100 % (I
2
=17 A, U
2
=87 V)
Operating Temperature -4° to 104° F (-20° to 40°C)
Storage Temperature -58° to 131° F (-50° to 55°C)
Power Factor 0.975
Rated Pilot Current 12 A
Input Voltage (U
1
)/ Input Current (I
1
) at 115 V / 28 A
Rated Output (U
2 MAX
, I
2 MAX
) 230 V / 14 A
Gas Type Air Nitrogen
Gas Quality Clean, dry, oil-free 99.995 % pure
Gas Inlet Pressure and Flow See Setup, Section 3
Powermax380 Power Supply Dimensions and Weight
Weight includes hand torch
and 20 ft (6.1 m) lead.
52 lb
23.6 kg
16"
406 mm
8.5"
216 mm
14.5"
368 mm

Hypertherm powermax 380 Specifications

General

Brand	Hypertherm
Model	powermax 380
Category	Welding System
Language	English
