Hypertherm Powermax 900 User Manual

230V CE INSTALLATION
2-8
230V CE Installation Manual

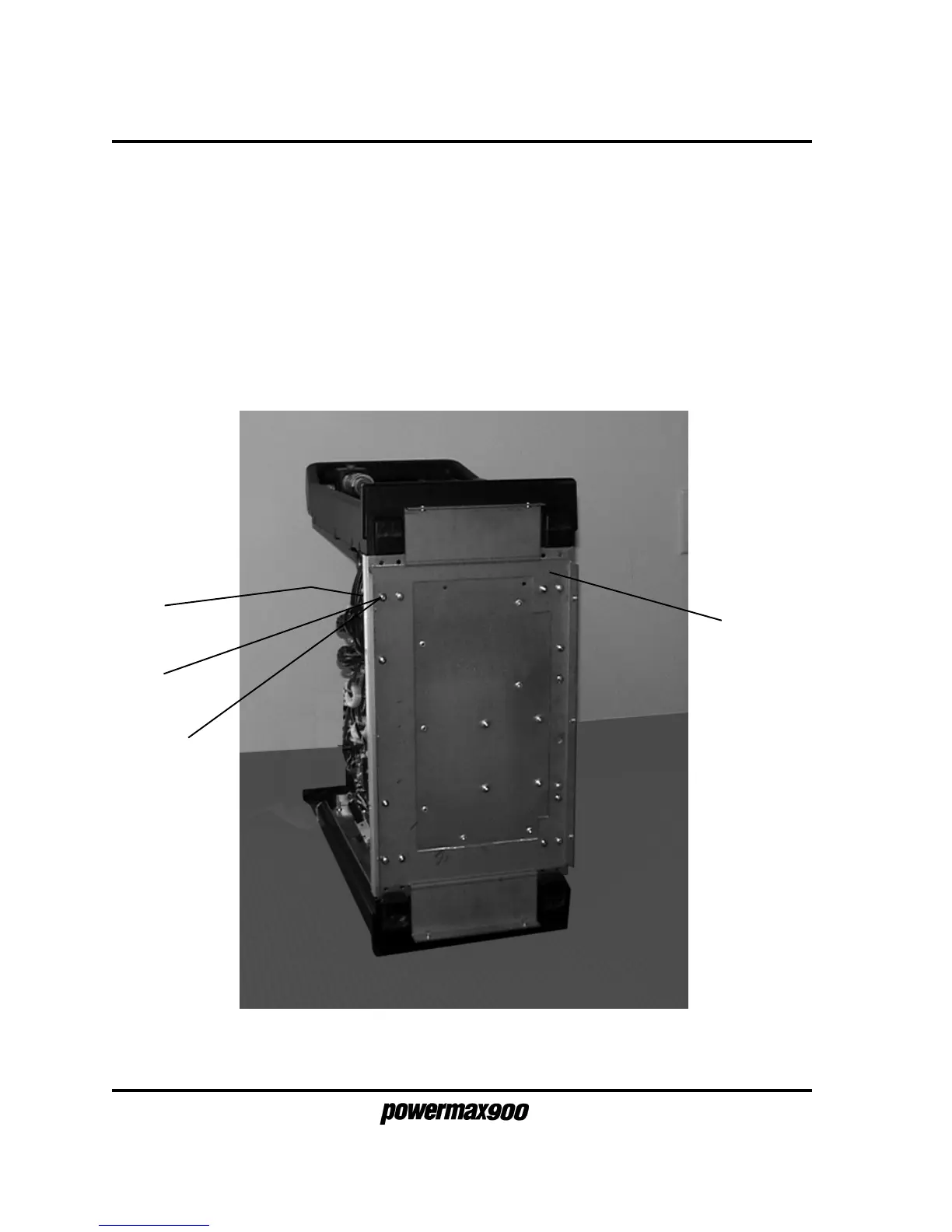

Figure 2-7 Attaching 230V Power Supply Bracket to Powermax CE Chassis
001568
Power supply
bracket
075160
Kepnuts (on inside)
(12)
075174
Star washers (12)
075470
Screws (12)
4. Remove the power supply cover.
5. Carefully tilt the Powermax over onto its front handle as shown in Figure 2-7.
6. Place the 001568 power supply bracket against the bottom of the power supply as shown
in Figure 2-7 and fasten with the 075470 10-32 screws, 075174 star washers and
075160 kepnuts in 12 locations.
