Hypertherm Powermax 900 User Manual

230V CE INSTALLATION
230V CE Installation Manual
2-9
ATTACHING 230V TRANSFORMER CASE ASSEMBLY TO
POWERMAX900 CE CHASSIS
1. Lift Powermax over transformer case assembly with the rear of the power supply lined up
over the power cord side of the transformer case.
2. Carefully set down the Powermax onto the transformer case assembly.
3. Fasten the Powermax to the transformer case assembly by screwing in the 075467
8-32 screws in 10 locations.
4. Thread the transformer secondary power cord (shorter cord) through the strain relief of
the line cord rear panel.

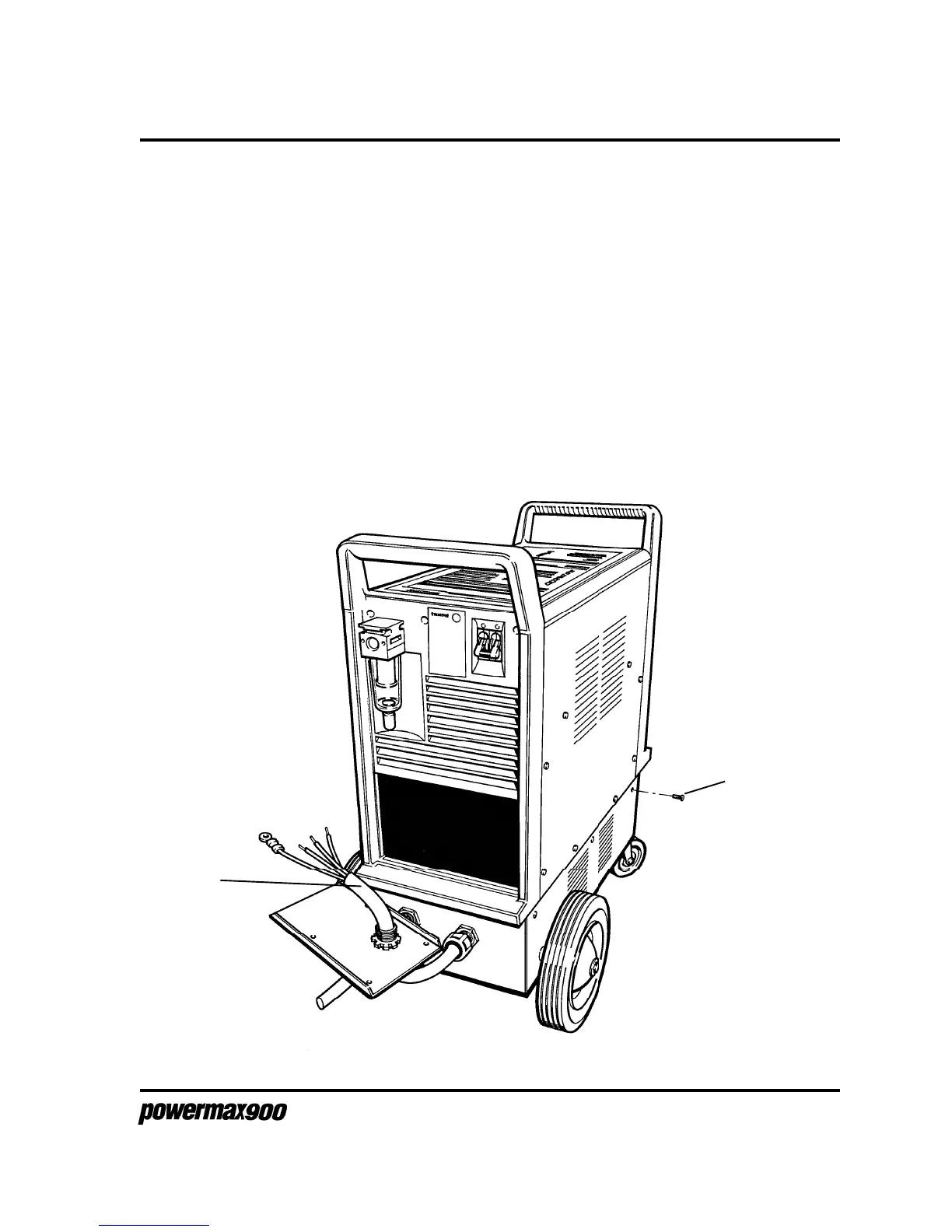

Figure 2-6 Attaching 230V Transformer Case Assembly to Powermax900 CE Chassis
075467
8-32 screw
Transformer
Secondary
Power Cord
