7-3
PARTS LIST - TORCH AND CONSUMABLES
Service Manual

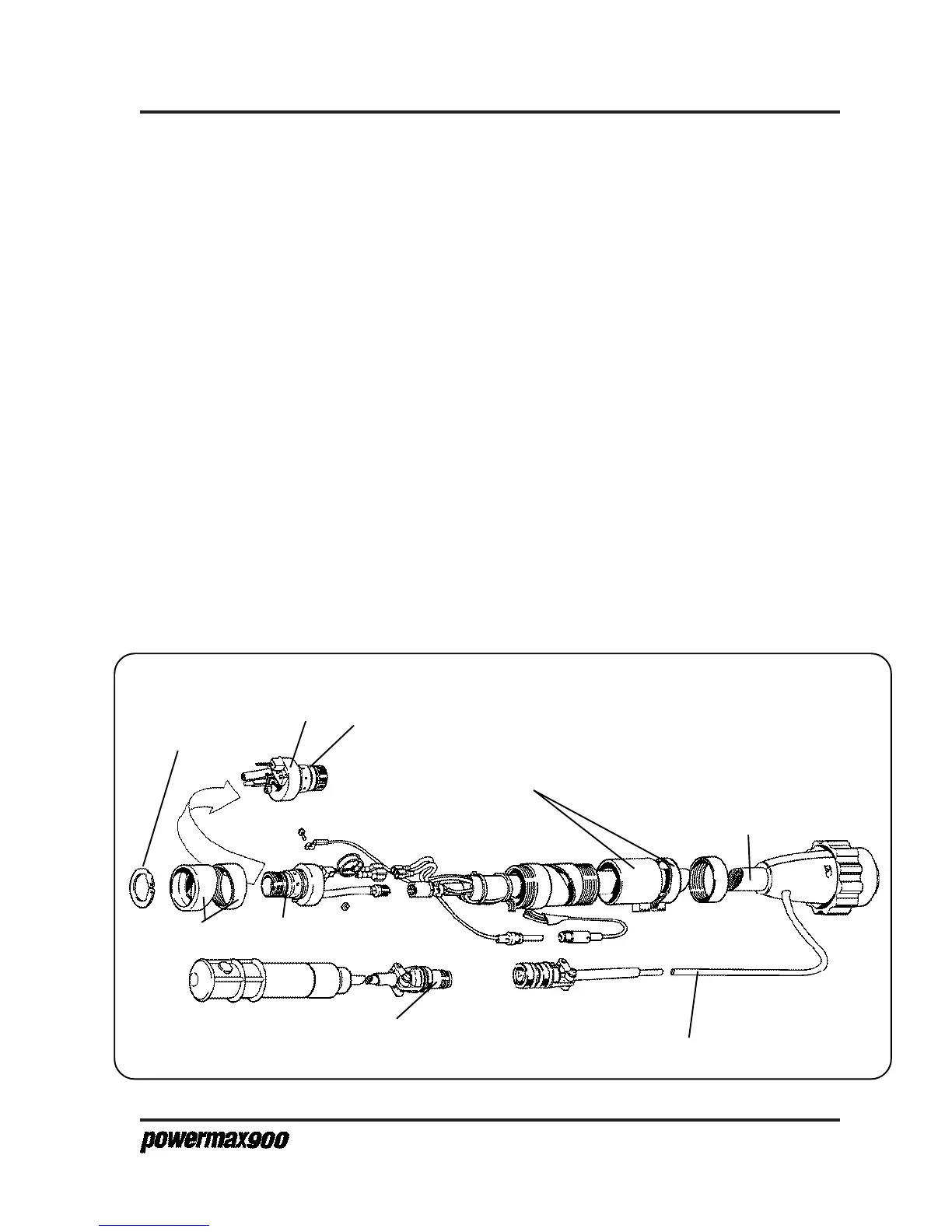

Figure 7-2 PAC125M Torch Assembly and Leads
PAC125M Torch Assembly and 14 ft (4.3 m) Lead - 083069 w/pigtail, 083073 no pigtail
PAC125M Torch Assembly and 25 ft (7.6 m) Lead - 083068 w/pigtail, 083072 no pigtail
PAC125M Torch Assembly and 35 ft (10.6 m) Lead - 083070 w/pigtail, 083074 no pigtail
PAC125M Torch Assembly and 50 ft (15.2 m) Lead - 083071 w/pigtail, 083075 no pigtail
Part Number Description
120573............................................ Electrode, Air
120576............................................ Ring, Swirl
120613............................................ Sleeve, Machine Torch, PAC125M
020620............................................ Sleeve, Torch Position, PAC121/125M
129339............................................ Torch Lead w/pigtail, 14 ft (4.3 m)
129338............................................ Torch Lead w/pigtail, 25 ft (7.6 m)
129340............................................ Torch Lead w/pigtail, 35 ft (10.6 m)
129341............................................ Torch Lead w/pigtail, 50 ft (15.2 m)
129343............................................ Torch Lead, no pigtail, 14 ft (4.3 m)
129342............................................ Torch Lead, no pigtail, 25 ft (7.6 m)
129344............................................ Torch Lead, no pigtail, 35 ft (10.6 m)
129345............................................ Torch Lead, no pigtail, 50 ft (15.2 m)
044009................................................... Quick Disconnect O-Ring (not shown)
027599............................................ Snap Ring
120577............................................ Nozzle: PAC125 55A Shield
120602............................................ Shield: PAC121M Machine Torch
120600............................................ Cap, Retaining
120583............................................ Torch Main Body w/ Switch, PAC125M
044016................................................... O-Ring: BUNA 90 Duro .614X.070
Note: See page 7-4 for detail of consumable parts
Snap Ring
027599
O-Ring
044016
Torch Sleeve
120613
Pigtail
Torch Position
Sleeve
020620
On/Off Pendant (not part of machine torch assembly -
See Powermax900 Field Upgrade Kits and Optional Parts in
Sections 4, 5 or 6 for part numbers)
Torch Lead
129339, with pigtail, 14 ft (4.3 m)
129338, with pigtail, 25 ft (7.6 m)
129340, with pigtail, 35 ft (10.6 m)
129341, with pigtail, 50 ft (15.2 m)
129343, no pigtail, 14 ft (4.3 m)
129342, no pigtail, 25 ft (7.6 m)
129344, no pigtail, 35 ft (10.6 m)
129345, no pigtail, 50 ft (15.2 m)
Torch Main
Body
120583
O-Ring
044016
