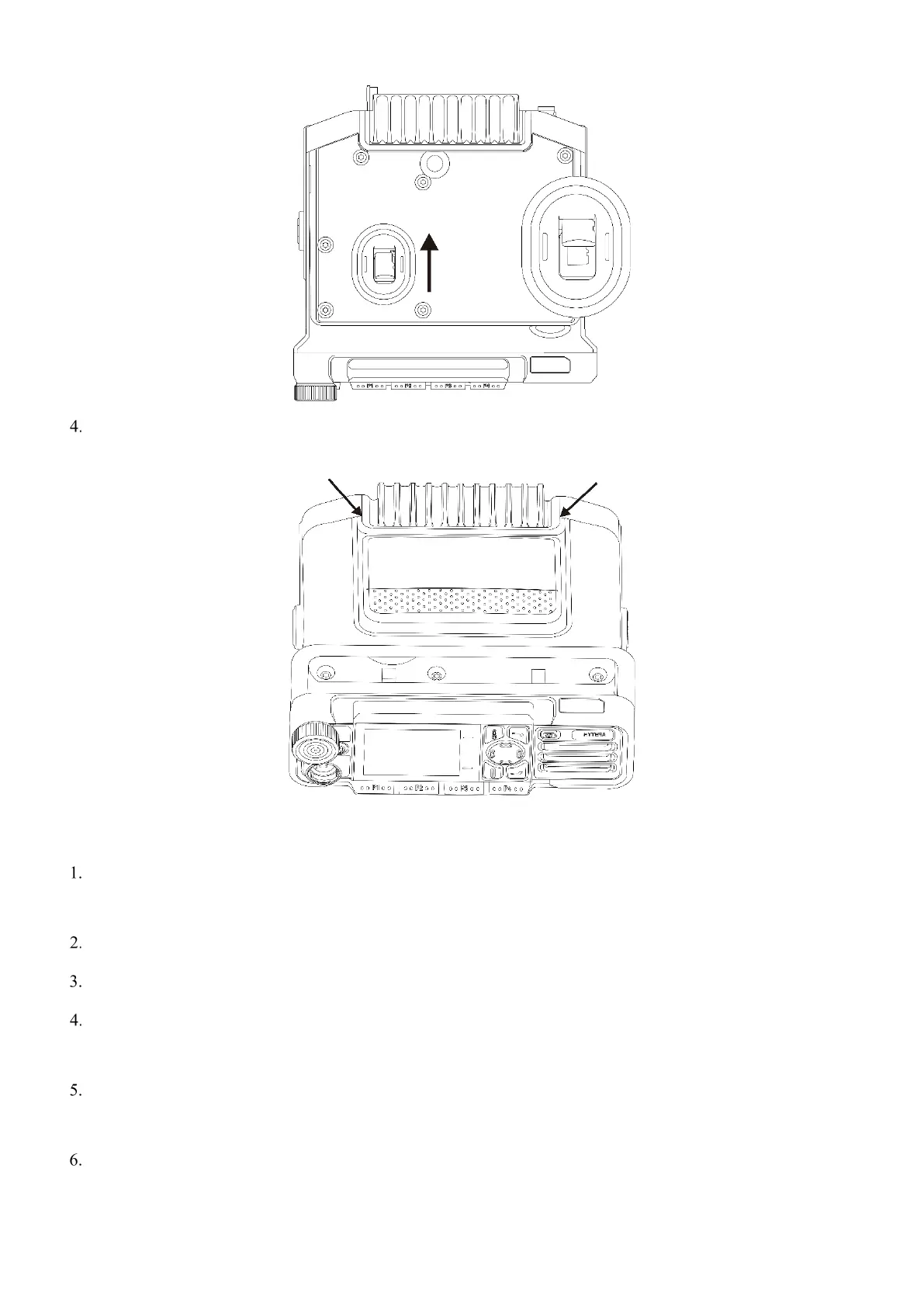

Align the concave side of the plastic upper cover with the aluminum chassis, and then press the cover until the latches
are properly locked.
3.4.2 Installing the Radio
Select a location, drill holes based on the shape of the mounting bracket, and then use the screws (4.8 mm x 20 mm)
to secure the bracket.
Connect the RF antenna, GPS antenna, and power cord to the radio.
Slide the radio into the mounted bracket, and then secure it by using the locking knobs.
Install the microphone hanger in a location where you can reach it easily, and then use the screws (4 mm x 16 mm)
to secure it.
Align the triangle index on the palm microphone with the installation index, plug the connector into the radio, and
then rotate the connector clockwise to secure it.
Place the palm microphone on the hanger.
