GROUP 1 STRUCTURE AND FUNCTION
SECTION 6 HYDRAULIC SYSTEM
1. HYDRAULIC CIRCUIT
(Non OPSS and non boosted brake)

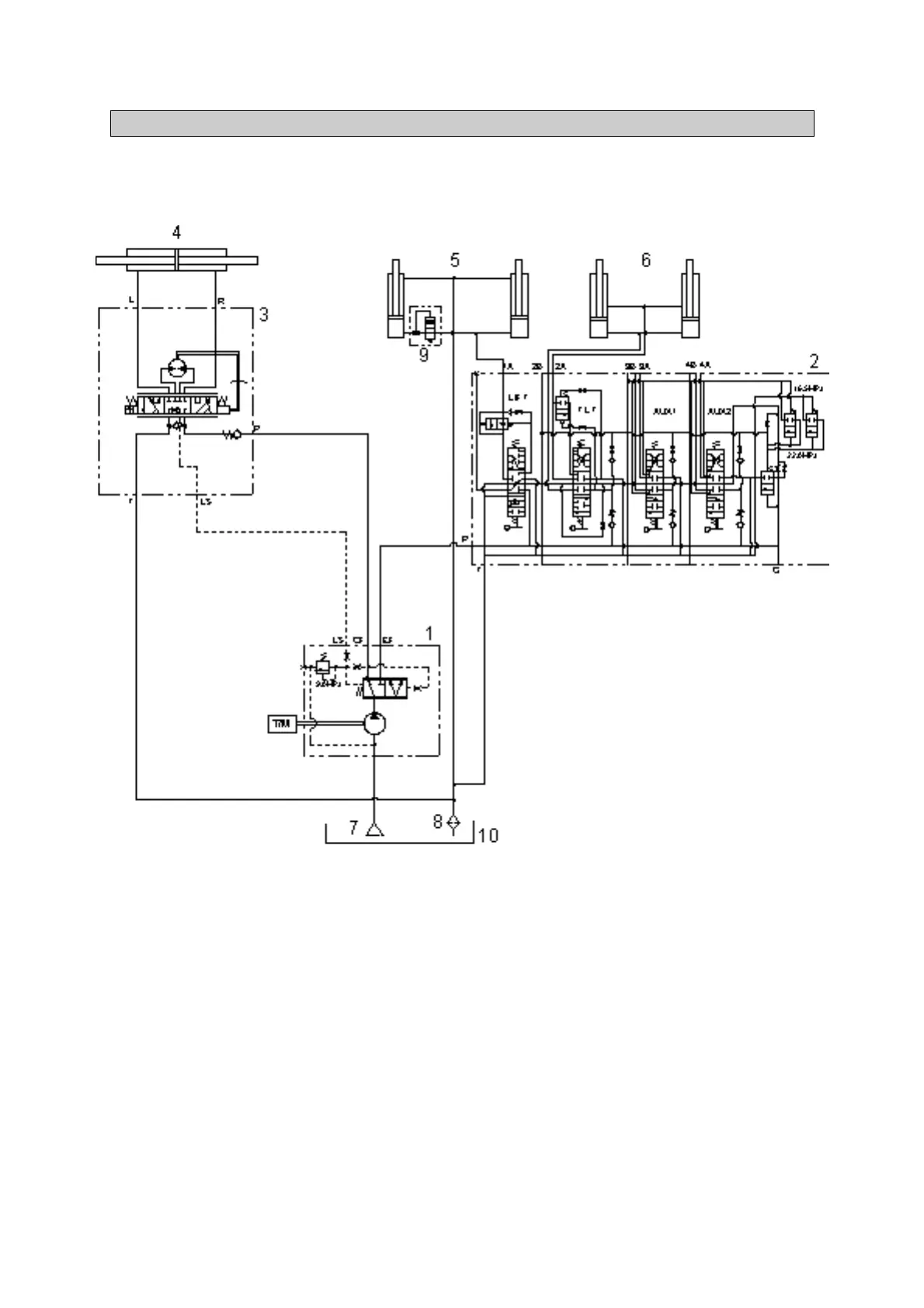

20L7HS01
1 Gear pump with priority valve
2 Main control valve
3 Steering unit
4 Steering cylinder
5 Lift cylinder
6 Tilt cylinder
7 Suction strainer
8 Return filter
9 Down safety valve
10 Hydraulic tank
