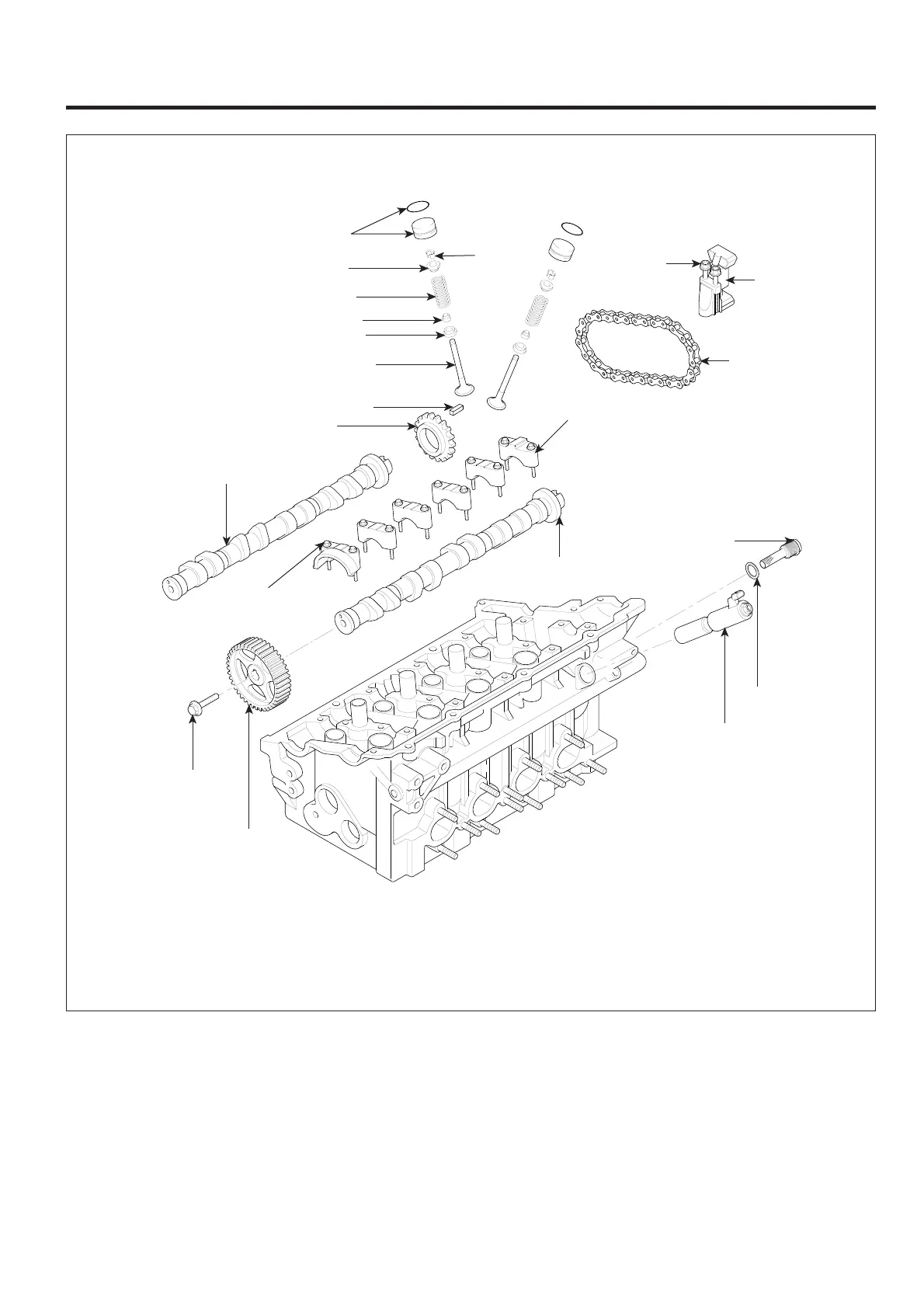

CYLINDER HEAD ASSEMBLY2-70
L4GC108A
Tightening torque : kg·m
1. MLS(Mechanical valve clearance
adjusting system
2. Retainer
3. Valve spring
4. Stem seal
5. Spring seat
6. Valve
7. Key
8. Chain sprocket
9. Intake camshaft
10. Camshaft sprocket
11. OCV(Oil control valve)
12. Washer
13. Exhaust camshaft
14. OCV(Oil control valve) filter
15. Camshaft bearing cap
16. Timing chain
17. Auto tensioner
18. Retainer lock
T : 1.4~1.5
T : 10.0~12.0
T : 4.1~5.1
T : 0.8~1.0
11
12
14
13
15
17
16
10
1
18
2
3
4
5
6
7
8
9
