LUBRICATION SYSTEM2-62
LUBRICATION SYSTEM
OIL PRESSURE SWITCH
Oil pressure switch is located on the front right side of the en-
gine and if oil pressure in the lubrication system drops less
than 0.29kg/cm
2
, the oil pressure warning lamp illuminates.
Hexagonal width of this switch is 24mm.
REMOVAL AND INSTALLATION
After applying sealant to the spiral portion, install the oil pres-
sure switch.
NOTE
Do not tighten the oil pressure switch too tight.
Oil pressure switch 1.3 ~ 1.5kg·m
INSPECTION
1. Using an ohmmeter, measure an electric current and re-
place the oil pressure switch if an electric current is not
detected.

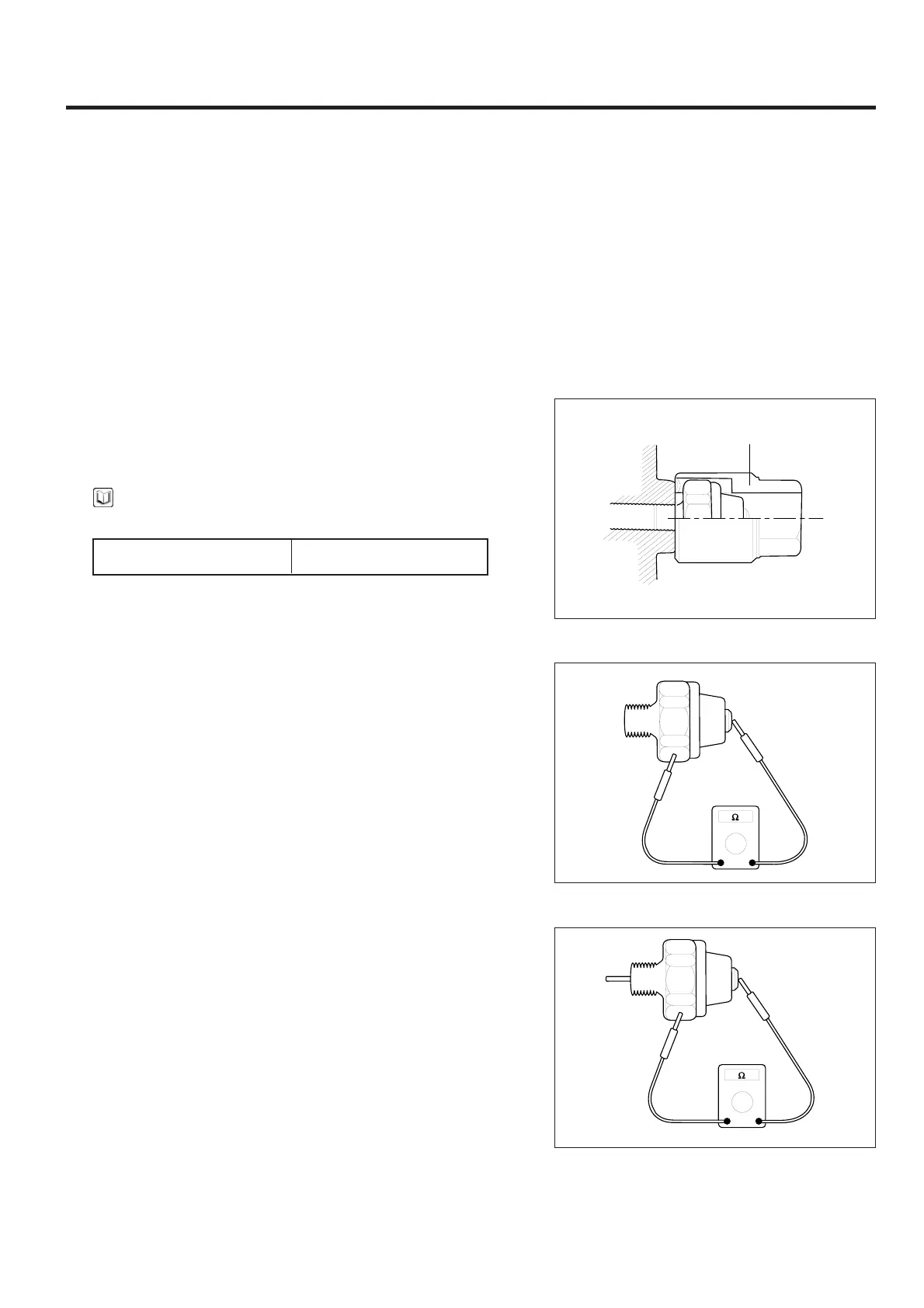

L4GC098A
2. When pressing it with a thin stick, if an electric current is
measured between terminal and body, replace the oil pres-
sure switch.
3. When applying a negative pressure of 0.3kg/cm
2
through
the oil hole, it an electric current is not measured, the switch
is normal. If the switch is not normal, check for air leak. If
air is leaked, replace the switch because it means damage
of the diaphragm.
L4GC099A
L4GC030A
Adaptor
