IAME Parilla Leopard RL User Manual

MAN048ING14

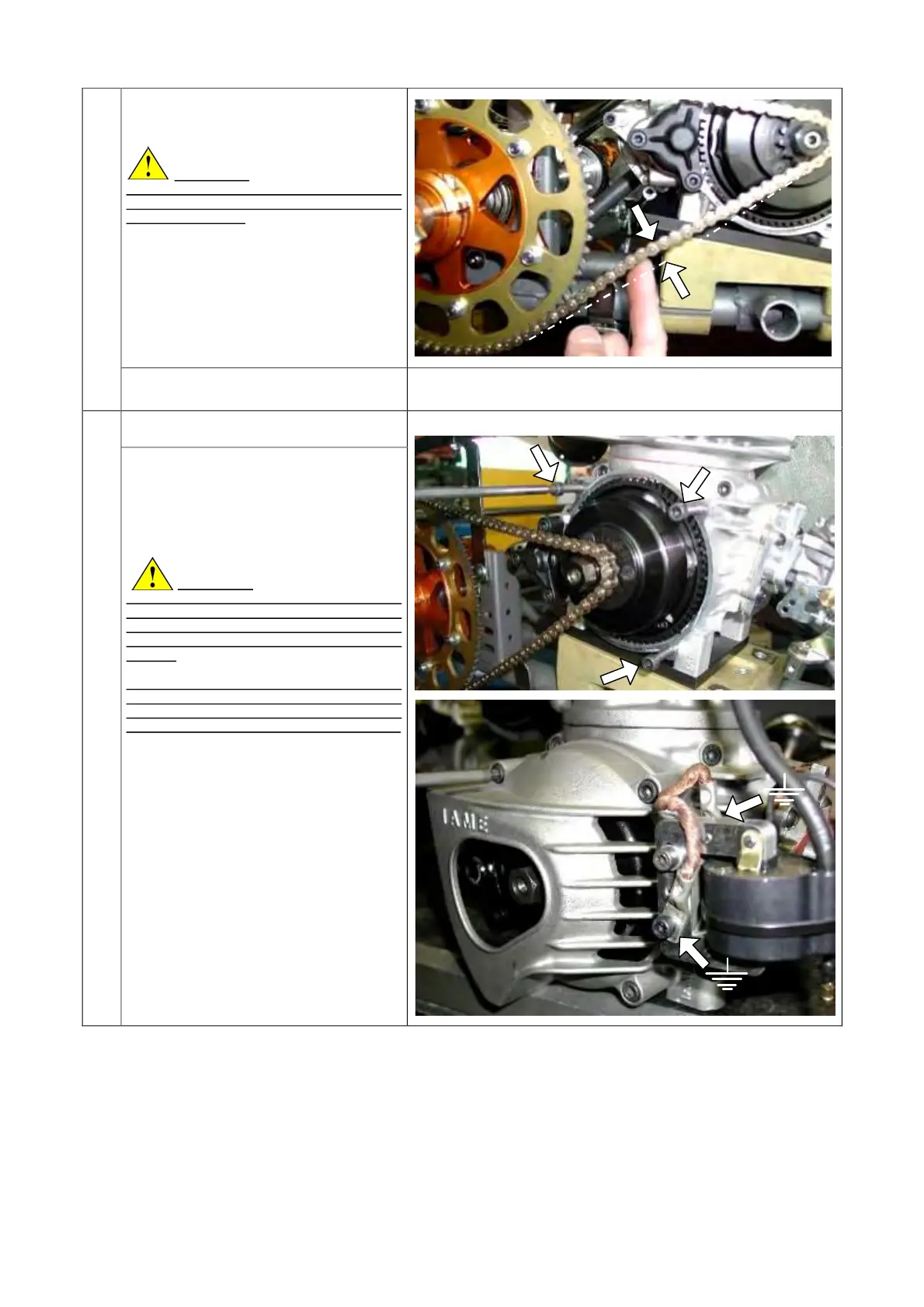

3.6.4 MOVETHE ENGINEON THE RAILS AND
OPTIMIZETHECHAINTENSION.
ATTENTION:
THE PLAY OF THE CHAIN MUST BE APPR.
15mm(½÷¾inch)MEASUREDINTHESHOWN
POINT(SEEFIG.13)
3.6.5 TORQUETHECLAMPSCREWS
INSTALLTHECLUTCHCOVER
WITHH.T.COIL
3.7
REMOVE THE 3 SCREWS M6 X 30 ON THE
CRANKCASE(SEEFIG.14)ANDINSTALLTHE
CLUTCHCOVERWITHH.T.COIL(SEEFIG.15).
TORQUE THE 3 SCREWS  AT 8 ÷ 10 Nm
(70÷90inlb)
ATTENTION:
ALWAYS MAKE SURE THAT THE GROUND
CABLEALWAYSCONNECTSTHECOILWITH
THE ENGINE. AN INADEQUATE GROUNDING
COULD DAMAGE THE IGNITION BEYOND
REPAIR.
THE POSITION OF THE H.T. COIL HAS BEEN
CHOSENTOBEASFARASPOSSIBLEFROM
THE EXHAUST AS THE EXCESSIVE HEAT
COULDDAMAGETHECOILBEYONDREPAIR.
5mmALLEN
Fig.13
Fig.14
15mm
Fig.15
