17 REPLACEMENTOFTHESTARTERBRUSHES
OPERATIONS PICTURES

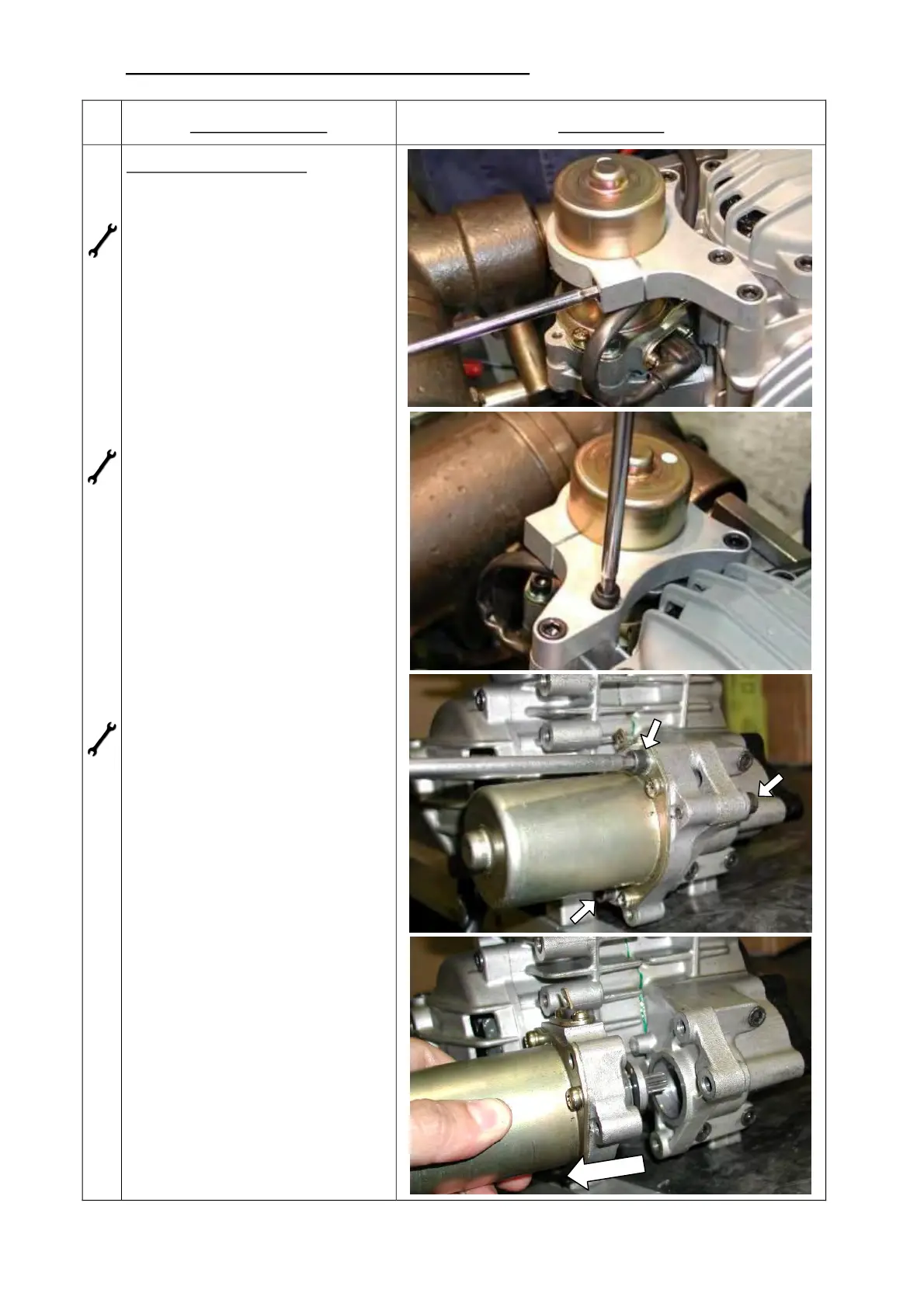

1.
DISASSEMBLETHESTARTER
UNLOOSETHESCREWM6X30ONTHE
STARTERSUPPORT(seeFig.1).
(5mmALLENWRENCH–TTYPE)
REMOVETHESTARTERSUPPORT
3SCREWSM6X25(seeFig.2).
(5mmALLENWRENCH–TTYPE)
UNSCREW N°3SCREWSM6x35(see
Fig.3).
(5mmALLENWRENCH–TTYPE)
REMOVESTARTER
(seeFig.4).
Fig.1
Fig.2
Fig.3
Fig.4
