IBM 8183 - ThinkCentre S50 User Manual

Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices that are IBM-installed or that you can install later.

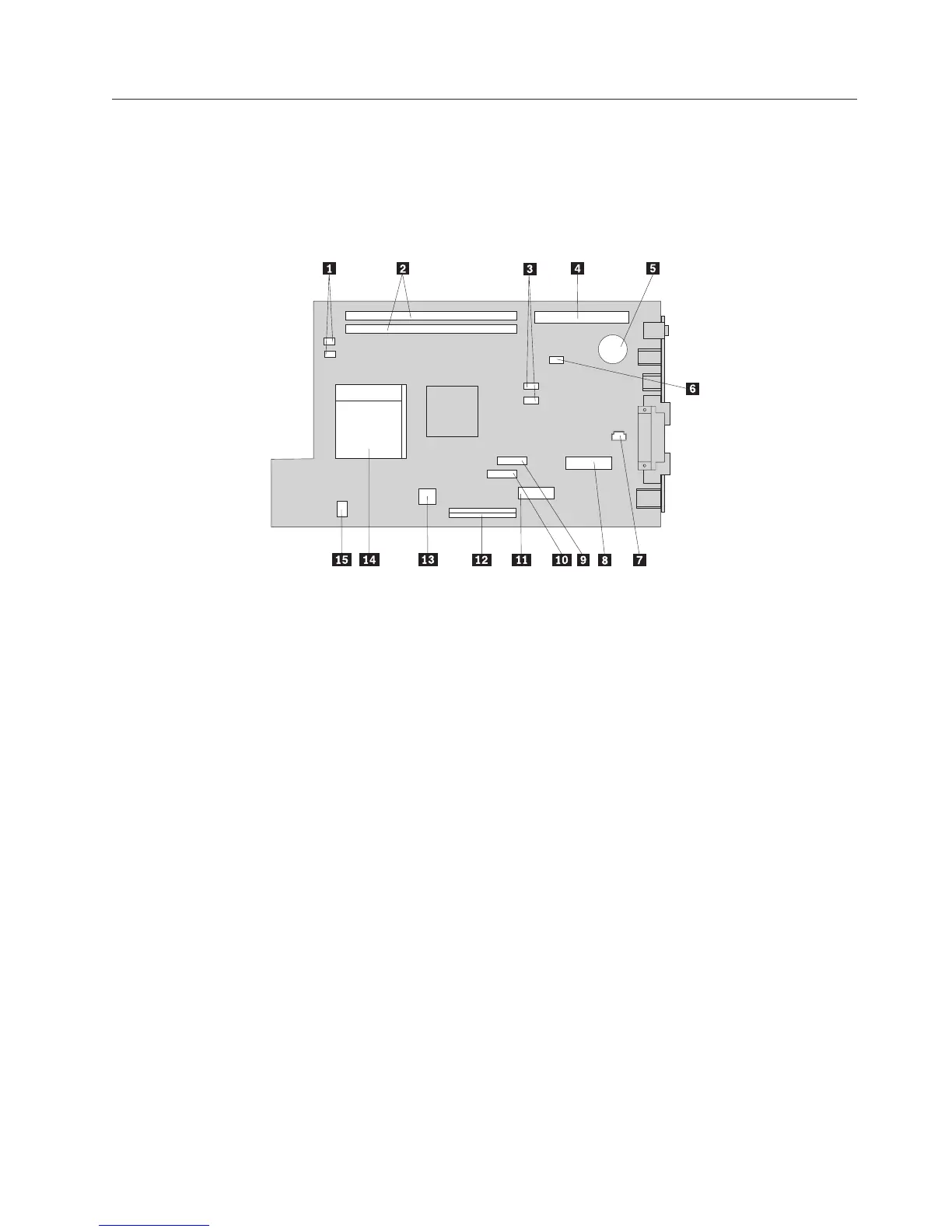

The following illustration shows the locations of parts on the system board.
1 Fan connectors (2) 8 Promise of value (POV) daughter card
(some models)
2 Memory DIMM connectors (2) 9 Diskette drive connector
3 SATA 1 IDE and SATA 2 IDE hard
disk drive connectors (2)
10 Power button and front LED assembly
connector
4 PCI riser connector 11 Power supply connector
5 CMOS Battery 12 PATA Primary IDE connector (hard disk
drive and CD-ROM drive)
6 Clear CMOS/BIOS recovery
jumper
13 Power supply connector
7 Internal speaker connector 14 Microprocessor
15 CD audio connector
Chapter 2. Installing options 13
