8. Lower the drive bay assembly.
9. Replace the cover, and connect the cables. See “Closing the cover and
connecting the cables” on page 24.
1 speaker
2 power button and LED assembly
3 fan
Removing and replacing the power button and LED assembly
Important
Before you install or remove any component, read “Important safety
information” on page v. These precautions and guidelines will help you work
safely.
To replace the power button and LED assembly:
1. Turn off the computer and disconnect the power cord from the electrical outlet
and from the computer.
2. Open the cover. See “Opening the cover” on page 10.
3. Rotate the drive bay assembly upward to gain access to the power button and
LED assembly.
4. Disconnect the power button and LED assembly cable from the system board.
See “Identifying parts on the system board” on page 13.
Note: Make sure you note the location of the cable that you disconnect from
the system board.
5. Lift the tab and slide the power button and LED assembly2out. See Figure 1.

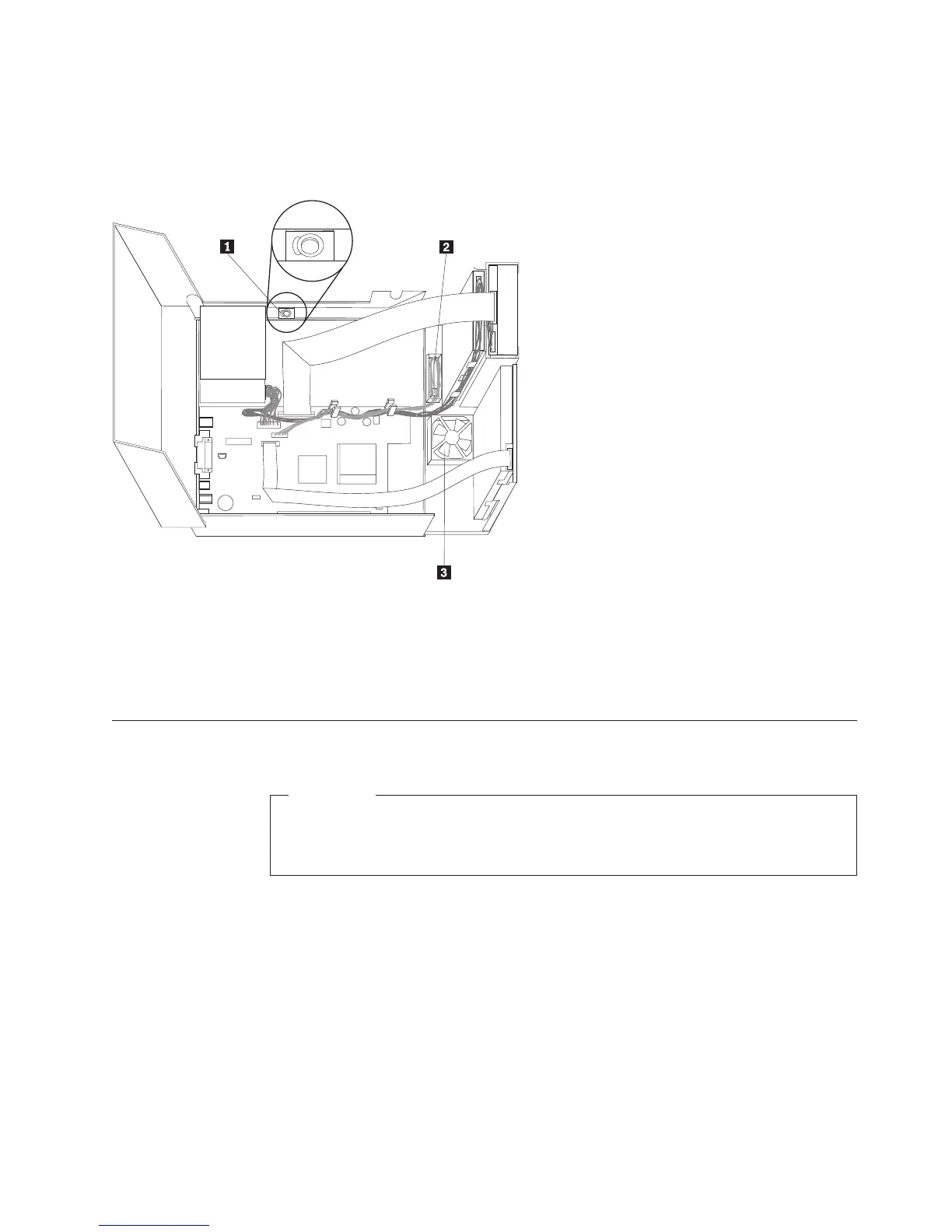

Figure 1. Speaker, fan, power button and LED assembly
Appendix A. Replacing customer replaceable units (CRU) 41
