IBM 8183 - ThinkCentre S50 User Manual

Installing PCI adapters
This section provides information and instructions for installing and removing PCI
adapters. Your computer has a riser card with two PCI expansion slots.
To install a PCI adapter:
1. Open the cover. See “Opening the cover” on page 10.

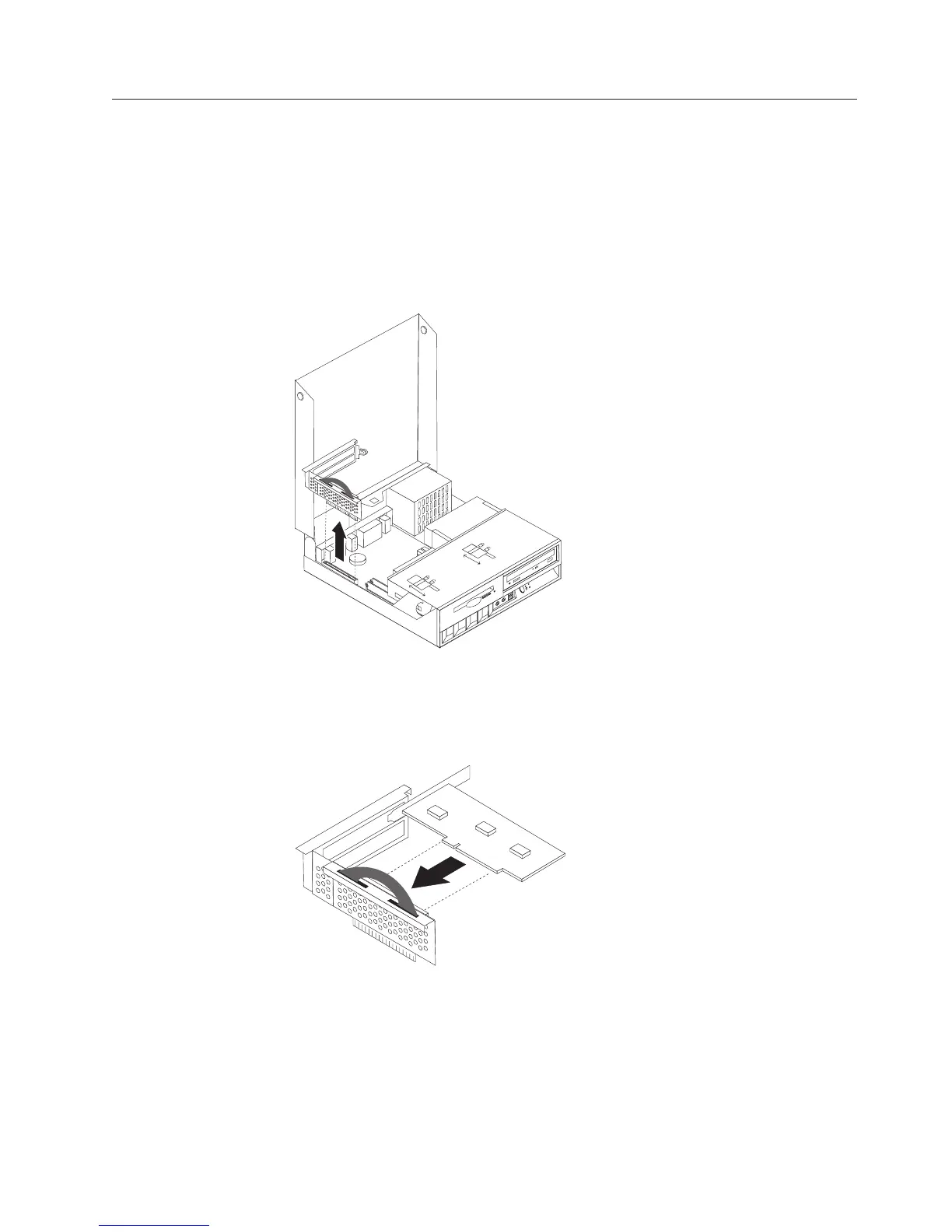

2. While holding the left rear of the computer chassis down, pull upward on the
handle provided, to remove the PCI riser and any adapters that are currently
installed.
3. Release the slot cover latch and remove the slot cover for the appropriate
expansion slot.
4. Remove the adapter from its static-protective package.
5. Install the adapter into the appropriate slot in the PCI riser.
Chapter 2. Installing options 15
