System-board external connectors

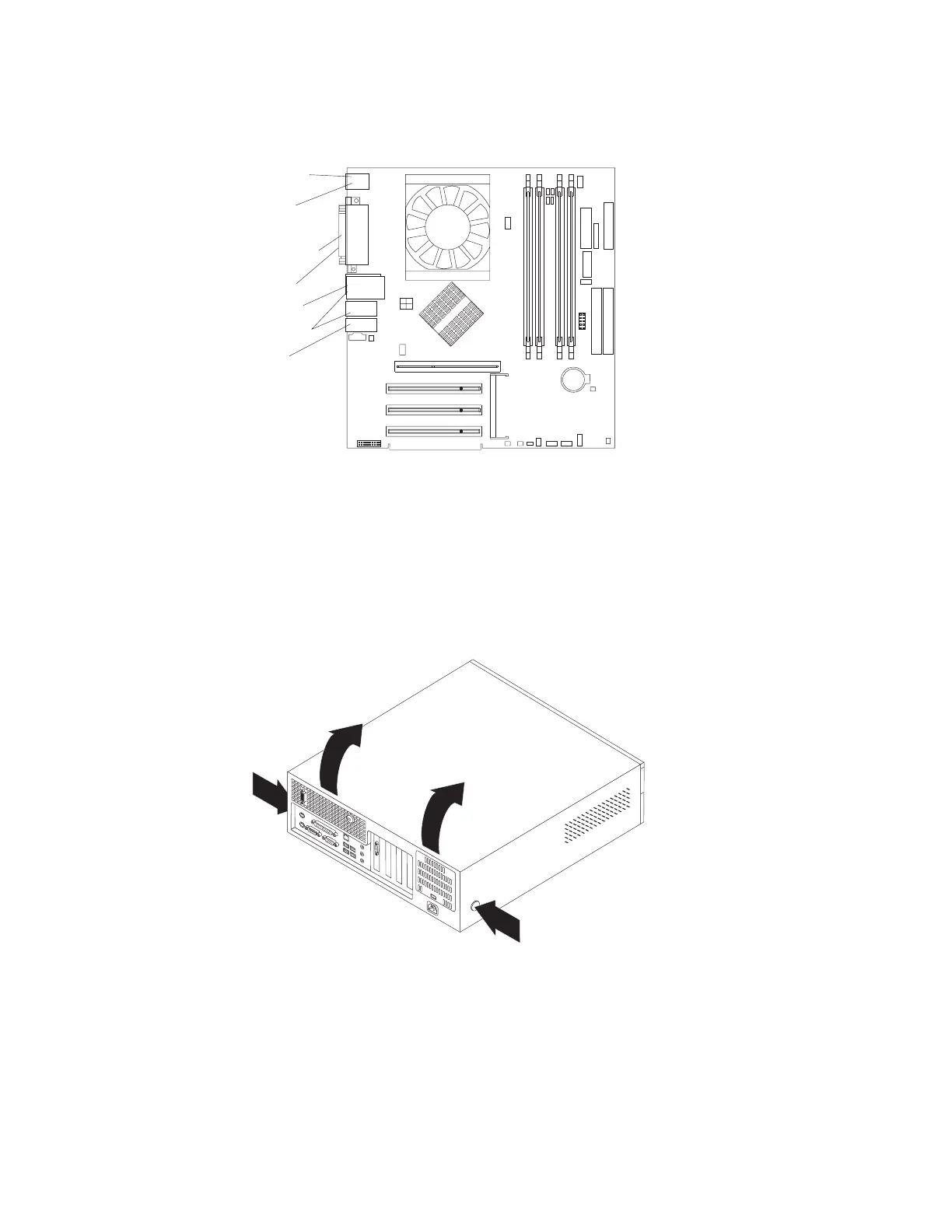

The following illustration shows the input/output port connectors on the system
board.
Keyboard
Mouse
USB ports
Parallel
Serial ports
Ethernet
Audio
Removing the cover
Complete the following steps to remove the computer cover:
1. Read the safety information beginning on page v and the guidelines in
“Handling static-sensitive devices” on page 11.
2. Turn off the computer and all attached devices (see “Turning off the computer”
on page 43); then, disconnect all power cords and external cables.
3. Press the buttons on both sides of the computer and lift the cover from the
computer.
To replace the cover, see “Replacing the cover” on page 21.
Removing and installing the support bracket
When working with some options, such as hard disk drives and memory modules,
you must first remove the support bracket to access the option.
Complete the following steps to remove the support bracket:
1. Read the safety information beginning on page v and the guidelines in
“Handling static-sensitive devices” on page 11.
14 IBM IntelliStation M Pro Types 6220 and 6230: Installation Guide
