94 IBM Desktop System HMM
Bay 3 - 3.5-In. Bay (Internal or External
Access)
Bay 4 - 3.5-In. Bay (External Access for
Diskette Drive)
•

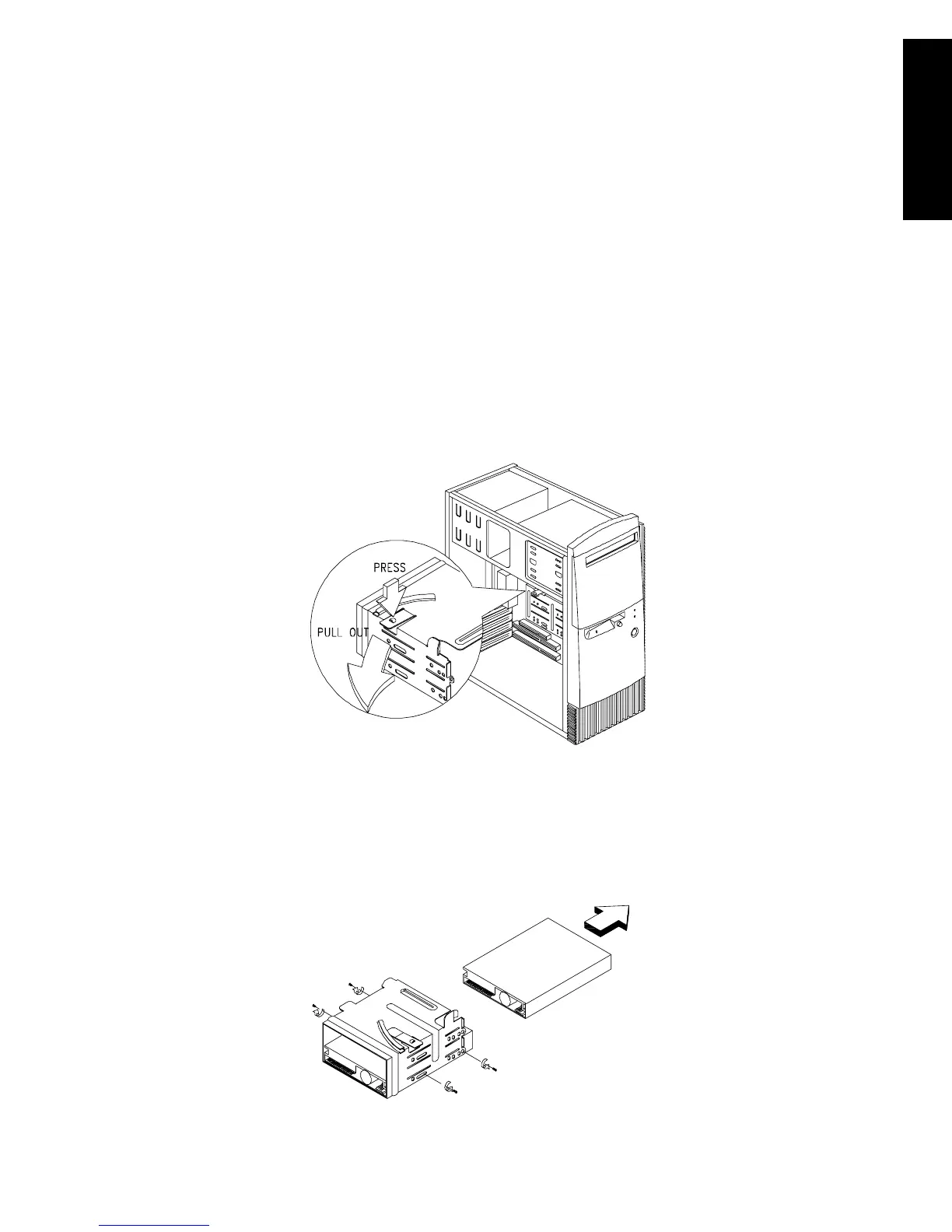

Disconnect the cables (note location of cables).
•
Press the lever and rotate outward.
•
Pull carefully and slowly as soon as the warning
arrow appears.
•
The drive frame becomes free after the line behind
the arrow appears. Remove the frame from the
chassis
•
Remove the screws located on both sides of the
drive and slide the drive out.
